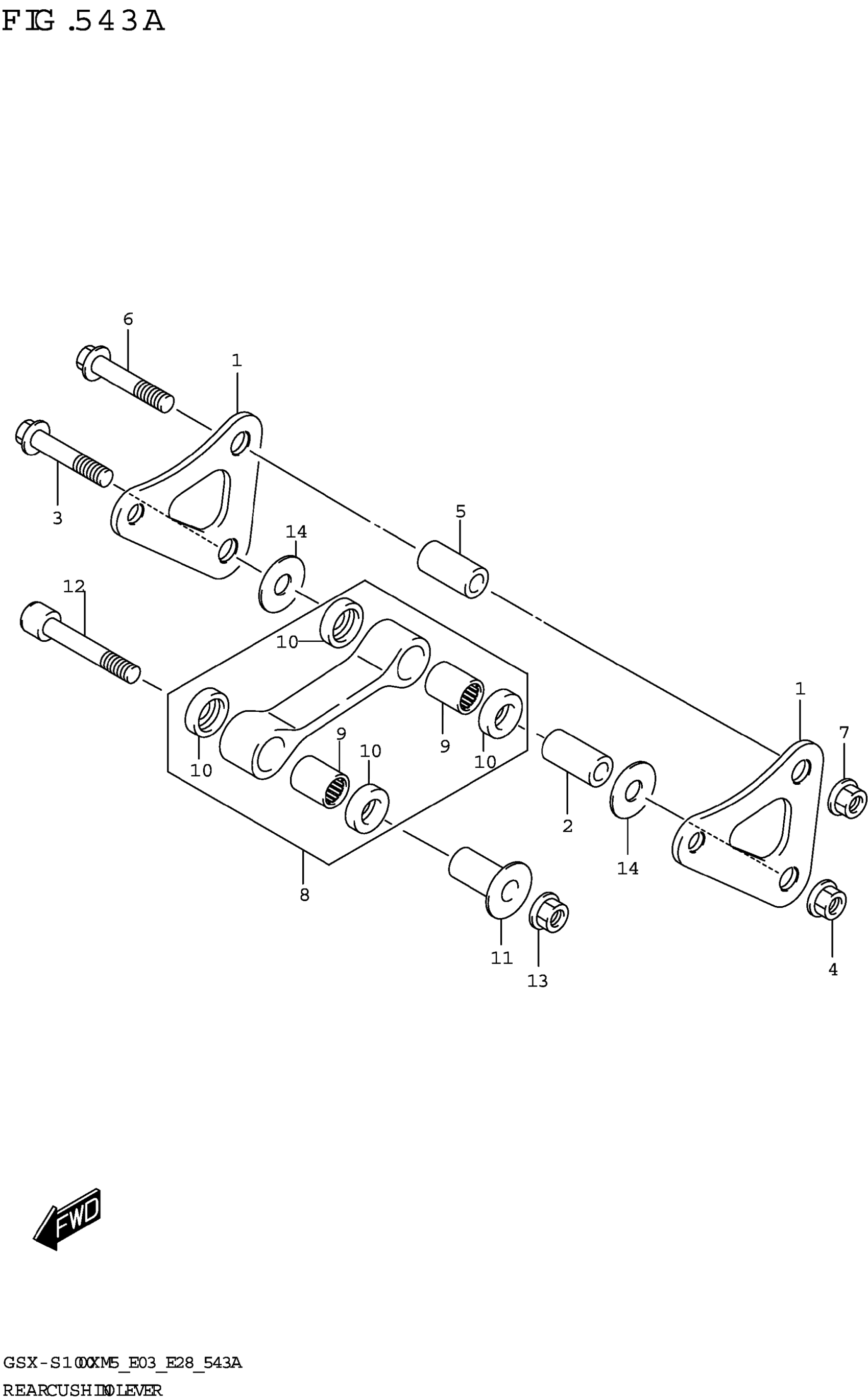

Suzuki GSX-S1000XRREM5 (2025) REAR CUSHION LEVER Diagram

#

Description

Price

1

LEVER,REAR CUSHION

62611-48K00

$28.13

2

SPACER,RR CUSHION LEVER FR (1 | X20X34)

62317-27C10

$16.76

3

BOLT (12X62)

62668-42A02

$10.67

4

NUT

09159-12056

$7.37

5

SPACER,RR CUSHION LEVER FR

62317-44B00

$21.03

6

BOLT (12X62)

62668-42A02

$10.67

7

NUT

09159-12056

$7.37

8

ROD SET,RR CUSHION

62600-48890

$202.80

9

.BEARING (20X27X20)

09263-20063

Unavailable

10

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

11

SPACER,RR CUSHION ROD FR

62647-47H00

$35.28

12

BOLT,RR CUSHION ROD

62658-04K00

$14.37

13

NUT

09159-12056

$7.37

14

WASHER (12X34X1.0)

09160-12037

$3.83
