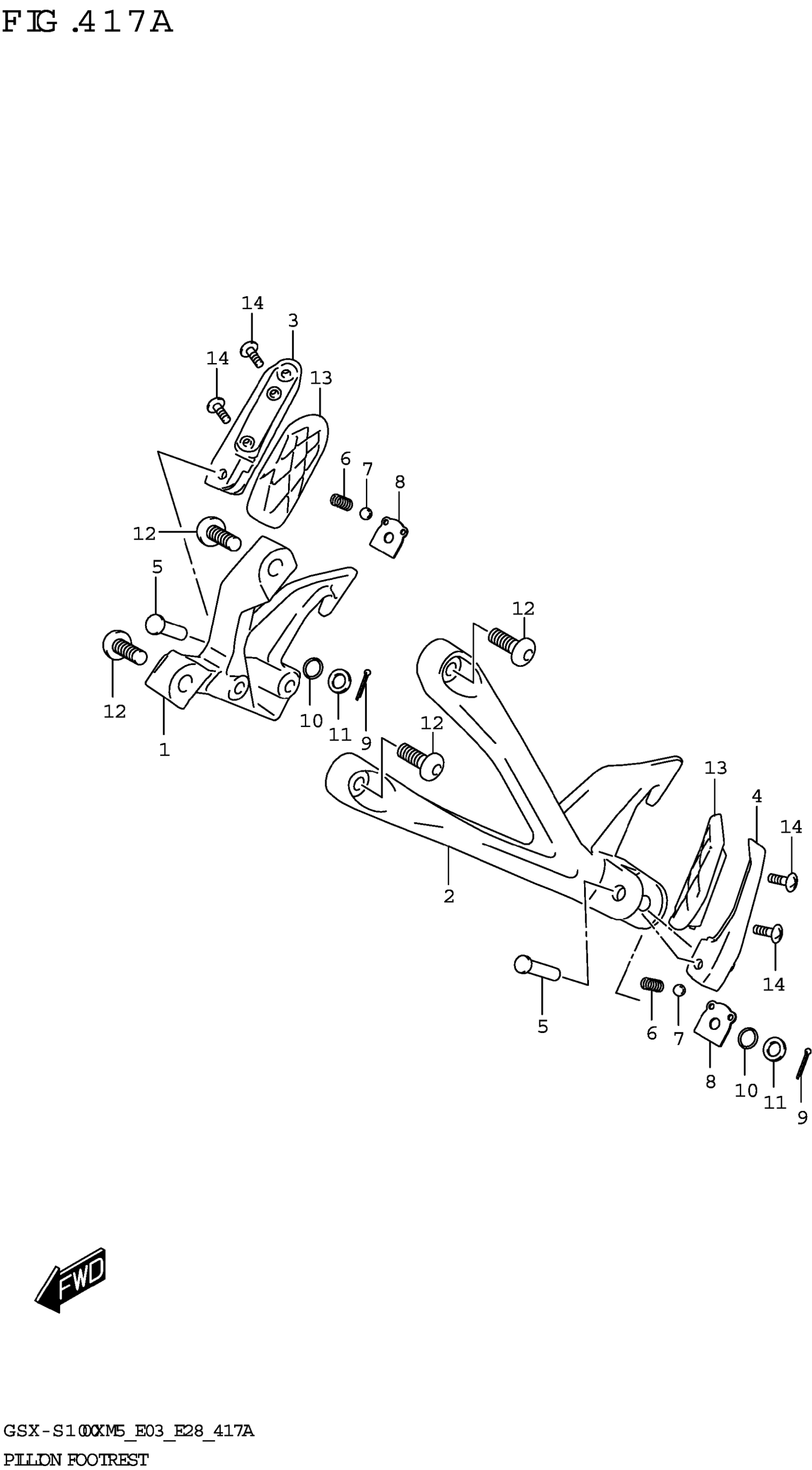

Suzuki GSX-S1000XRREM5 (2025) PILLION FOOTREST Diagram

#

Description
Price

1

BRACKET, PILLION FOOTREST RH

43811-48K00

$145.05

2

BRACKET, PILLION FOOTREST LH

43821-48K00

$145.05

3

BAR, PILLION FOOTREST RH

43611-10L00

$63.85

4

BAR, PILLION FOOTREST LH

43621-10L00

$63.85

5

PIN

09200-08076

$3.57

6

SPRING

09440-06039

$3.27

7

STEEL BALL This part replaces 06111-08004.

06111-08003

$1.49

8

PLATE, PILLION FOOTREST

43816-10L00

$6.20

9

PIN

04111-2015A

$1.49

10

O RING (D:2.4,ID:6.9)

18592-68K00

$4.82

11

WASHER (8.5X14X1.6)

09160-08090

$2.39

12

BOLT

09106-08213

$3.40

13

RUBBER, FOOTREST

43550-10L00

$20.66

14

.SCREW

02142-0516A

$1.49
