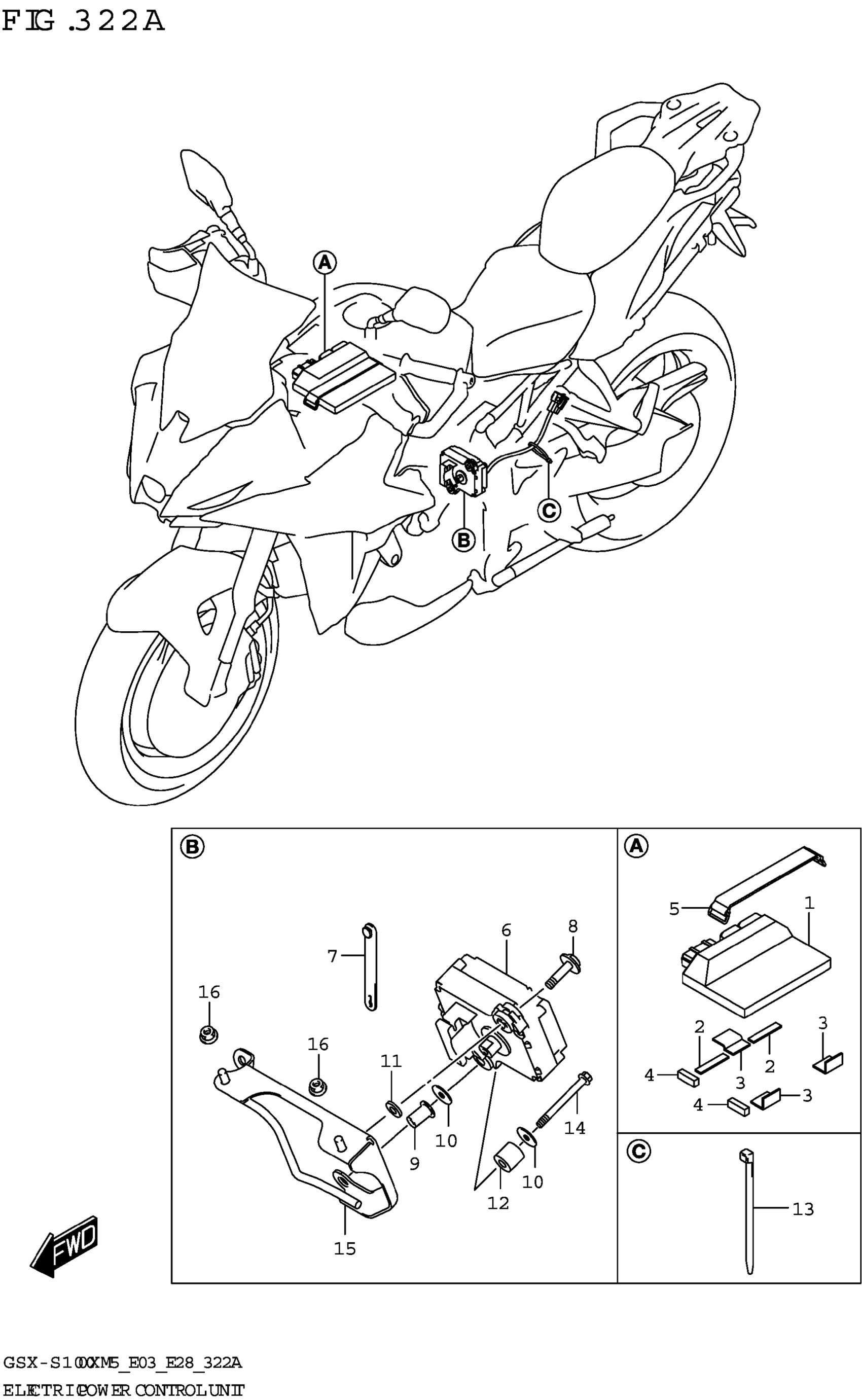

Suzuki GSX-S1000XRREM5 (2025) ELECTRIC POWER CONTROL UNIT (E03,E28) Diagram

Description

Price

HARDWARE, FI CONTROL UNIT

32910-48K00

$1,008.50

CUSHION,FI CONTROL UNIT

33652-23H11

$2.30

CUSHION (30X40X2.0)

33652-36100

$2.56

CUSHION,TANK COVER FR (10X30X | )

44277-18K00

$2.80

BAND

09462-00015

$12.07

ACTUATOR ASSY

33970-47H03

$465.78

CLAMP,HANDLE SWITCH (L:145)

36990-06L00

$8.32

BOLT (6X25)

09116-06202

$3.19

NUT (M5)

09159-05019

$6.44

WASHER (5.5X18X1.0)

09160-05045

$1.95

WASHER (6.5X14X2.0)

09160-06126

$1.92

.SPACER (6.5X16X15)

09180-06161

$7.10

CLAMP (L:145)

09407-14407

$2.80

BOLT

01547-0550A

Unavailable

BRACKET,ACTUATOR

47420-48K00

$45.25

BOLT (6X45)

01550-0645A

$2.42
