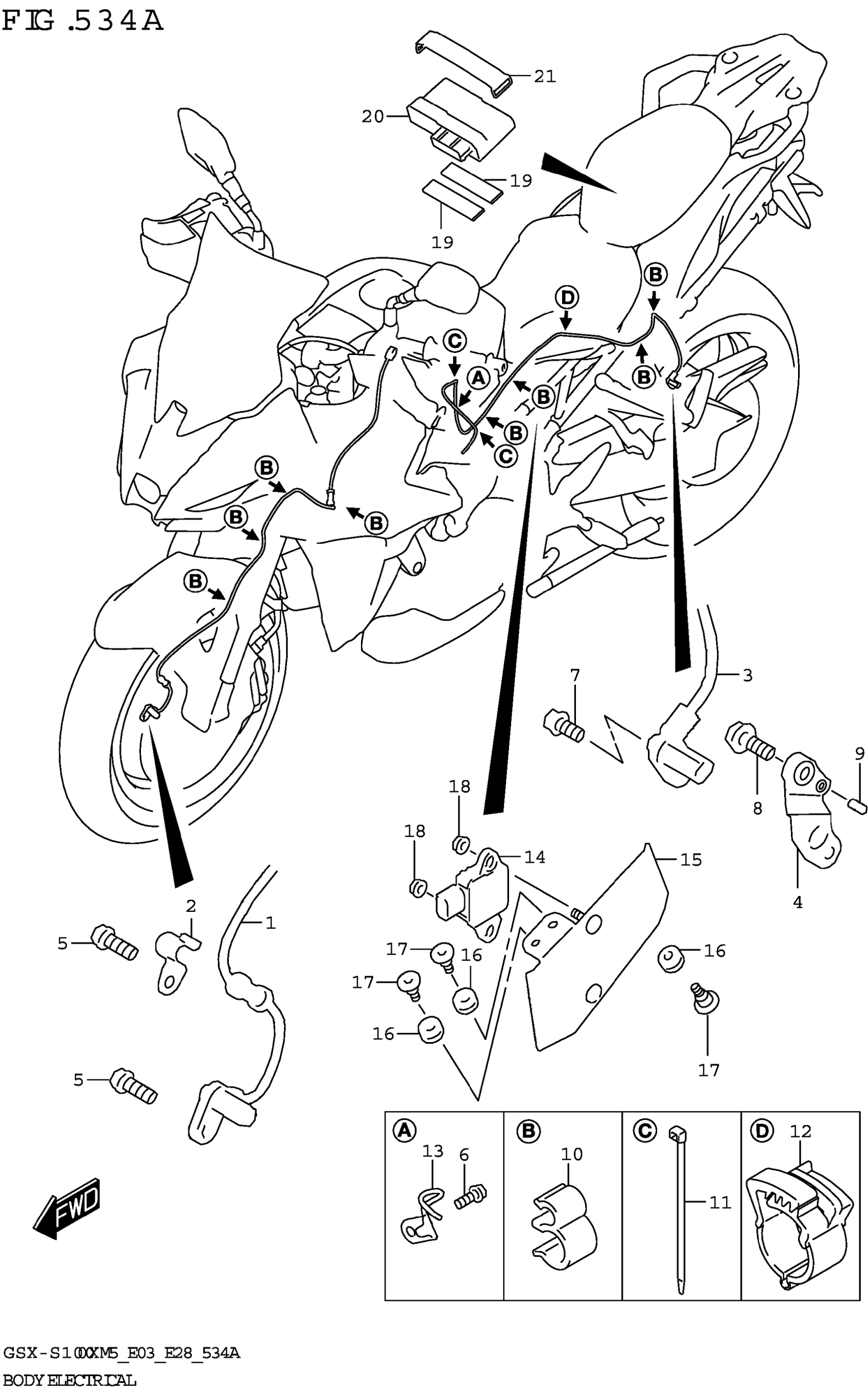

Suzuki GSX-S1000XRREM5 (2025) BODY ELECTRICAL Diagram

#

Description
Price

1

SENSOR,FR WHEEL SPEED

55710-48K10

$98.63

2

CLAMP,ABS SENSOR FR

55731-15H00

$5.47

3

SENSOR, RR WHEEL ABS

65710-48K00

$102.80

4

BRACKET, SPEED SENSOR RR

65721-48K00

$20.40

5

BOLT

09103-06550

$2.58

6

BOLT

01547-0616A

$2.01

7

BOLT

01547-0612B

$1.22

8

BOLT (6X16)

09103-06240

$3.45

9

PIN (4X13.8)

04221-04089

$1.10

10

CLAMP

09408-00266

$2.69

11

CLAMP (L:145)

09407-14407

$2.80

12

CLAMP

09408-00184

$2.80

13

GUIDE,WHEEL SPEED SENSOR

65730-48K00

$17.40

14

SENSOR,INERTIAL

55750-06L00

$1,434.77

15

HOLDER,INERTIAL SENSOR

55760-48K00

$48.50

16

CUSHION

09320-08077

$5.10

17

SCREW (6X20)

09139-06211

$3.15

18

NUT (6X12)

08316-1006A

$2.19

19

PROTECTOR (20X90X4)

33652-49000

$4.05

20

CONTROL UNIT,SUSPENSION

62510-48KE0

$797.88

21

BAND

09462-00043

$3.71
