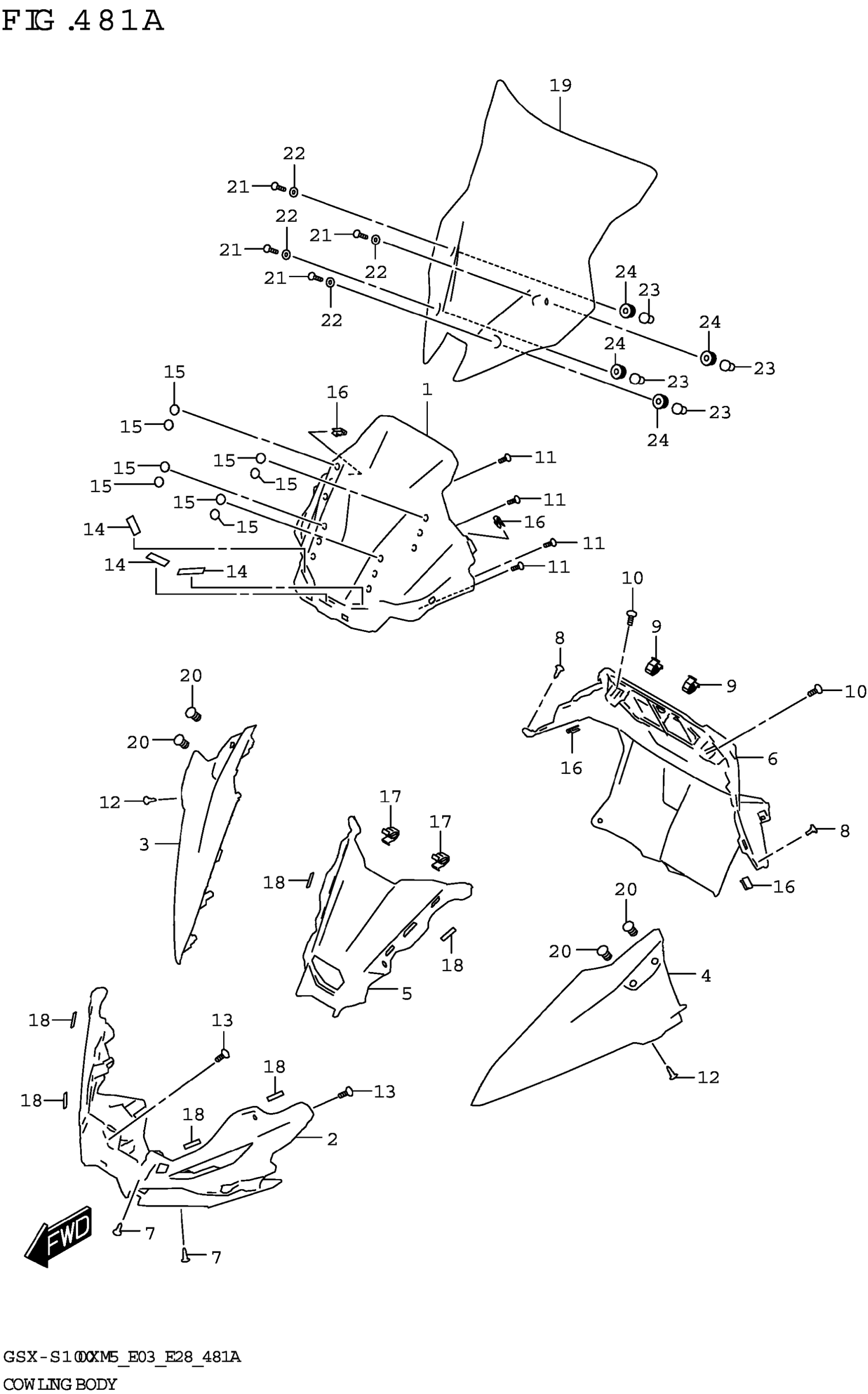

Suzuki GSX-S1000XRREM5 (2025) COWLING BODY Diagram

#

Description
Price

1

PANEL,METER FRONT

94641-48K20

$66.65

2

COWLING,BODY LOWER

94431-48K20

$87.65

3-1

COWLING,BODY,R (BLUE) | BODY COLOR:YSF

94412-48K20-YSF

Unavailable

3-2

COWLING,BODY,R (BLACK) | BODY COLOR:YVB

94412-48K20-YVB

Unavailable

3-3

COWLING,BODY,R (RED) | BODY COLOR:YYG

94412-48K20-YYG

Unavailable

4-1

COWLING,BODY,L (BLUE) | BODY COLOR:YSF

94413-48K20-YSF

Unavailable

4-2

COWLING,BODY,L (BLACK) | BODY COLOR:YVB

94413-48K20-YVB

$133.40

4-3

COWLING,BODY,L (RED) | BODY COLOR:YYG

94413-48K20-YYG

Unavailable

5

COWLING,BODY (BLACK)

94411-48K20-YKV

Unavailable

6

PANEL,METER REAR

94642-48K20

$71.12

7

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

8

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

9

CLIP (10.5X14.3)

09409-08326

$2.48

10

SCREW,KNUCKLE COVER

09139-05108

$1.49

11

SCREW

03541-0516A

$1.49

12

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

13

SCREW

03541-0516A

$1.49

14

CUSHION

94675-07L10

$1.95

15

CAP (OD:15)

09250-10030

$1.65

16

NUT (M5)

09148-05052

$3.37

17

CLIP (10.5X14.3)

09409-08326

$2.48

18

CUSHION

94675-07L10

$1.95

19

WINDSCREEN

94611-48K30

$171.60

20

NUT (M5)

09159-05019

$7.14

21

SCREW

09139-05111

$2.70

22

WASHER

09160-05048

$2.02

23

NUT

09159-05053

$5.28

24

CUSHION

09320-05024

$5.42
