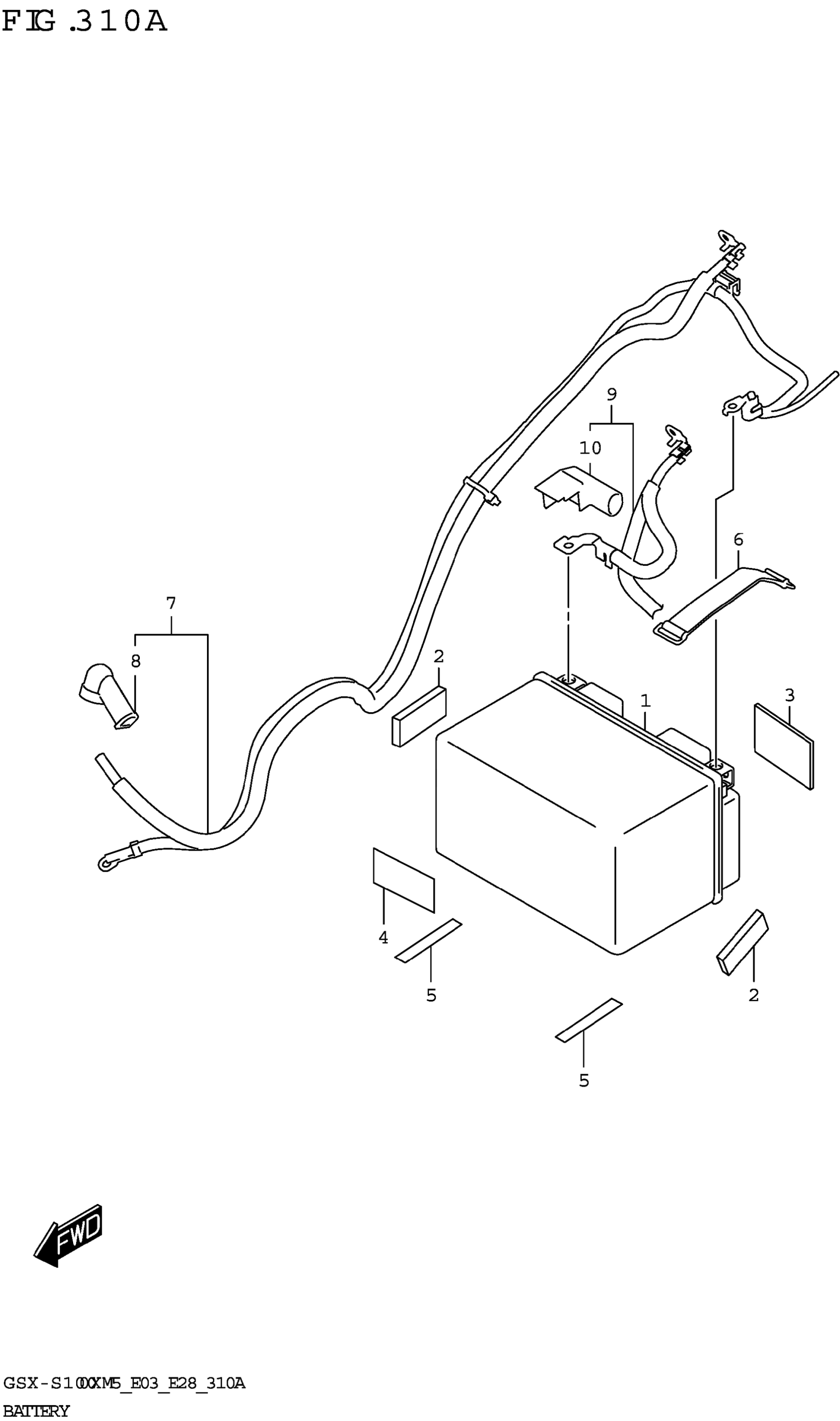

Suzuki GSX-S1000XRREM5 (2025) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY This part replaces 33620-17K01.

33620-17K02

$163.40

2

CUSHION, REAR FENDER REAR This part replaces 33652-28010.

33651-37000

$4.48

3

CUSHION (30X50X3)

33652-36000

$2.30

4

PROTECTOR,BATTERY

33652-48K20

$1.58

5

PROTECTOR,BATTERY

33652-48K40

$1.49

6

BAND

09462-00007

$4.11

7

WIRE,STARTER MOTOR LEAD

33810-48KB0

$64.80

8

.CAP, STARTER MOTOR TERMINAL

31861-04K00

Unavailable

9

WIRE,BATTERY PLUS LEAD

33820-48KB0

$27.25

10

.CAP,BATTERY PLUS TERMINAL

33624-48K00

Unavailable
