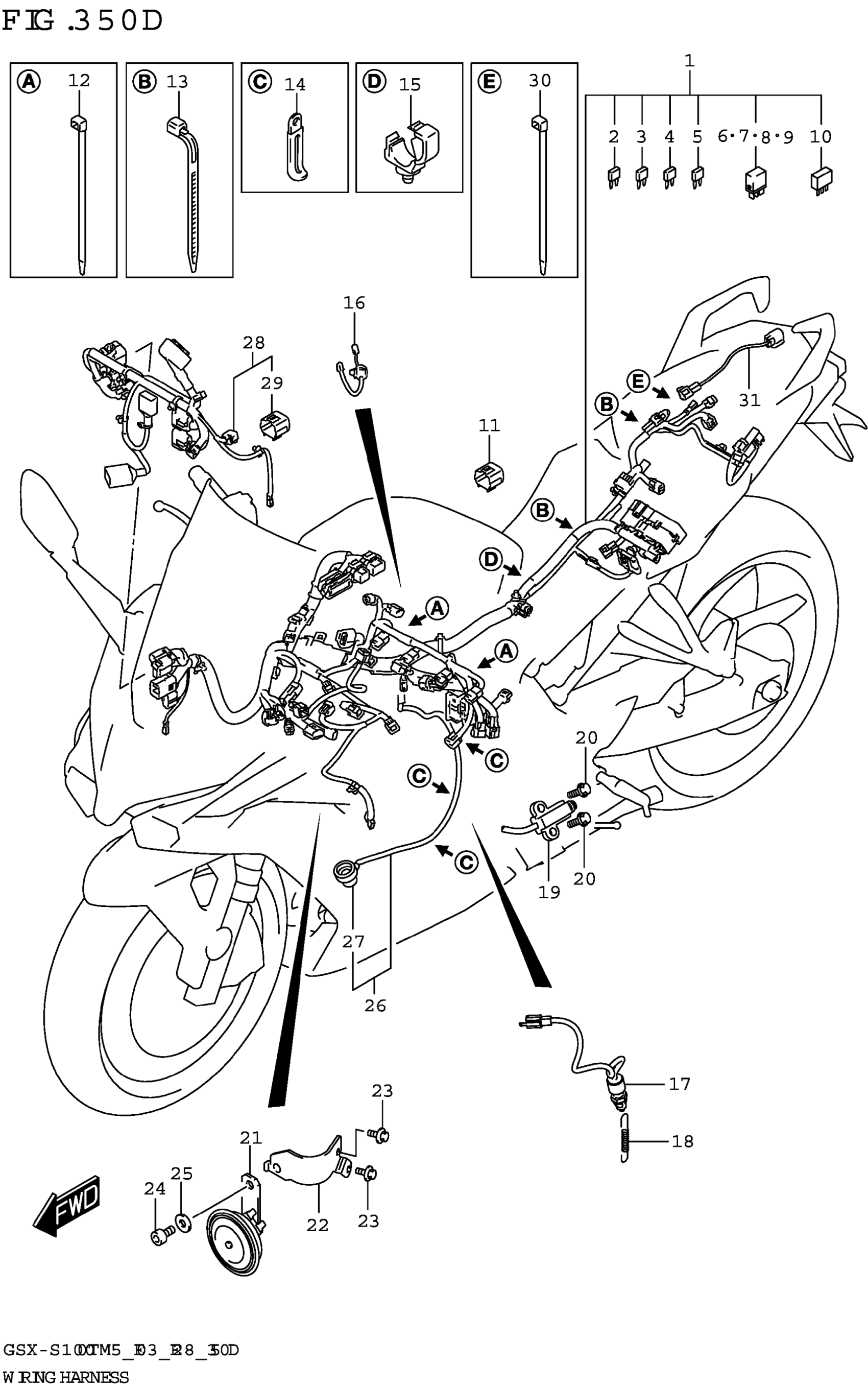

Suzuki GSX-S1000TRQM5(E03) (2025) WIRING HARNESS (E03,E28) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-41LJ0

$809.13

2

.FUSE

09481-01501

$3.40

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.FUSE (20A)

09481-20504

$1.92

6

.RELAY ASSY | FUEL PUMP

38860-76F01

$34.37

7

.RELAY ASSY | FAN MOTOR

38860-76F01

$34.37

8

.RELAY ASSY | STARTER

38860-76F01

$34.37

9

.RELAY ASSY | HIGH BEAM

38860-76F01

$34.37

10

.DIODE

36611-38A10

$13.16

11

CAP,OBD CONNECTOR

36654-28K00

$8.72

12

CLAMP (L:145)

09407-14407

$3.57

13

CLAMP This part replaces 09407-20405.

09407-25402

$4.64

14

CLAMP, OIL PRESS LEAD

36651-07L00

$13.92

15

CLAMP

09403-20311

$2.17

16

WIRE, FAN MOTOR LEAD

36852-10L00

$30.72

17

SWITCH ASSY, STOP LAMP

37740-48K01

$75.57

18

SPRING, BRAKE LAMP SWITCH

43232-48K00

$2.10

19

SWITCH ASSY, SIDE STAND

37840-48K00

$100.02

20

BOLT (6X20)

01550-0620A

$1.97

21

HORN ASSY

38500-48K00

$39.55

22

PLATE, HORN

38590-04K10

$13.38

23

BOLT (6X16)

09116-06006

$1.86

24

BOLT

07130-0812A

$3.72

25

WASHER (8.5X22X2.0)

09160-08127

$2.12

26

WIRE, OIL PRESSURE SWITCH LEA

36851-48K00

$15.95

27

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

28

HARNESS,WIRING NO.2

36620-41LA0

$279.77

29

CAP,TS

36654-06J01

$13.85

30

CLAMP (L:190)

09407-19401

$3.05

31

WIRE,REAR COMB LAMP LEAD

36853-48KA0

$19.87
