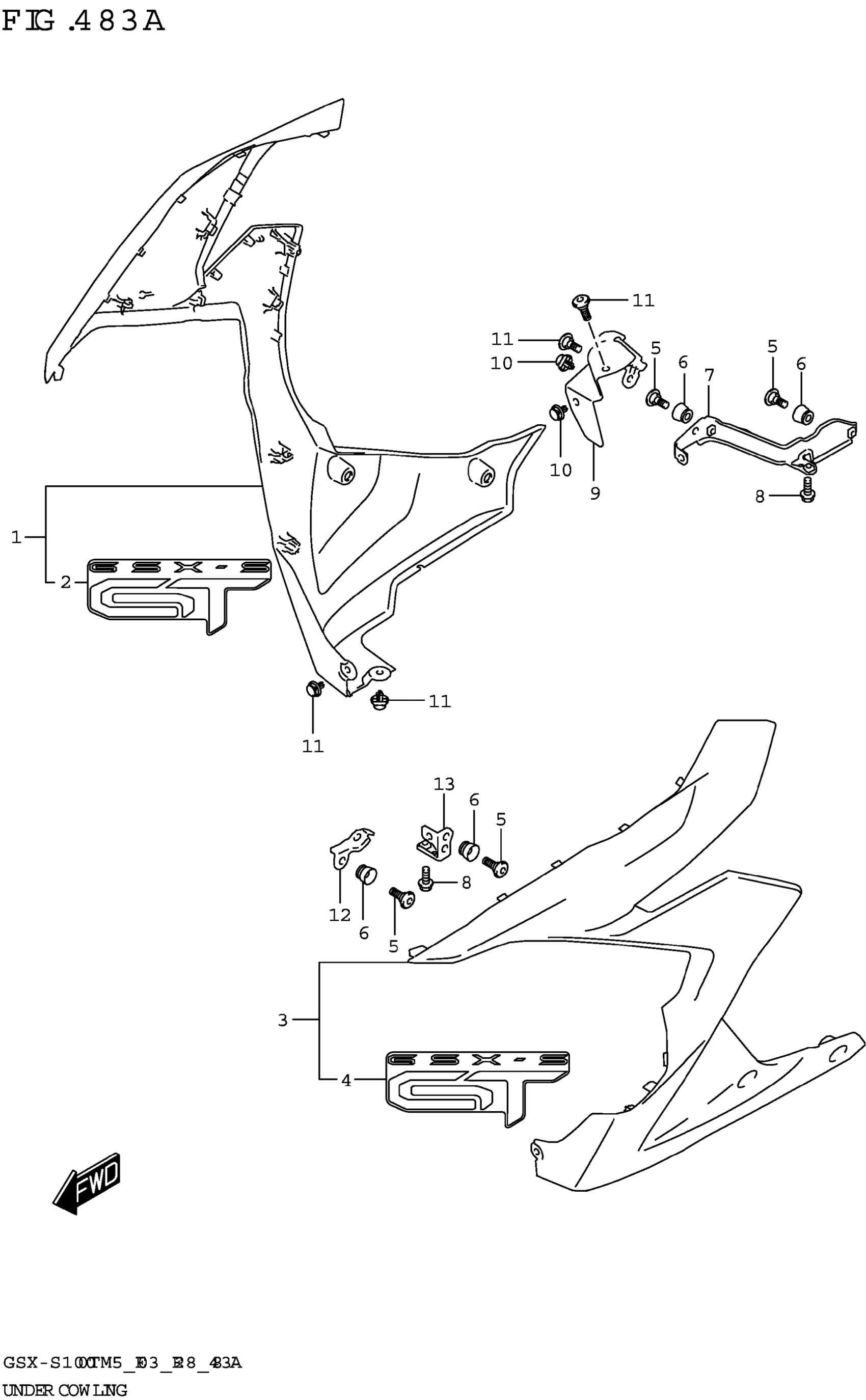

Suzuki GSX-S1000TRQM5(E03) (2025) UNDER COWLING Diagram

#

Description
Price

1-1

COWLING, SIDE UPR RH (RED) | BODY COLOR:YYG

94470-48K00-YYG

$298.08

1-2

COWLING,SIDE UPR,R (GRAY) | BODY COLOR:QEB

94470-48K00-QEB

$290.48

1-3

COWLING,SIDE UPR,R (BLUE) | BODY COLOR:YKY

94470-48K00-YKY

$290.48

2-1

.EMBLEM, SIDE COWLING UPR | K,SILVER,RED) BODY COLOR:YYG

68131-48K10-CRB

$31.70

2-2

.EMBLEM,SIDE COWLING UPPER | BODY COLOR:QEB

68131-48K10-C47

$31.03

2-3

.EMBLEM,SIDE COWLING UPPER | BODY COLOR:YKY

68131-48K10-C46

$31.03

3-1

COWLING, SIDE UPR LH (RED) | BODY COLOR:YYG

94480-48K00-YYG

$298.08

3-2

COWLING,SIDE UPR,L (GRAY) | BODY COLOR:QEB

94480-48K00-QEB

$290.48

3-3

COWLING,SIDE UPR,L (BLUE) | BODY COLOR:YKY

94480-48K00-YKY

$290.48

4-1

.EMBLEM, SIDE COWLING UPR | K,SILVER,RED) BODY COLOR:YYG

68131-48K10-CRB

$31.70

4-2

.EMBLEM,SIDE COWLING UPPER | BODY COLOR:QEB

68131-48K10-C47

$31.03

4-3

.EMBLEM,SIDE COWLING UPPER | BODY COLOR:YKY

68131-48K10-C46

$31.03

5

SCREW (6X20)

09139-06206

$2.99

6

CUSHION,UNDER COWLING,L

94479-15H00

$4.22

7

BRACKET, UNDER COWL RH

94530-48K00

$33.02

8

BOLT

01550-0612A

$1.97

9

COVER, UNDER RH

94472-07L00

$32.12

10

SCREW (6X13)

09139-06220

$4.12

11

CLIP

94479-35F00

$5.14

12

BRACKET, UNDER COWL FR LH

94520-48K00

$11.93

13

BRACKET, UNDER COWL RR LH

94540-07L00

$21.53
