Description

Price

1-1

TANK ASSY,FUEL (RED) | BODY COLOR:YYG

44100-48KA0-YYG

Unavailable

1-2

TANK ASSY,FUEL (GRAY) | BODY COLOR:QEB

44100-48KA0-QEB

$980.98

1-3

TANK ASSY,FUEL (BLUE) | BODY COLOR:YKY

44100-48KA0-YKY

$980.98

2-1

.EMBLEM, SUZUKI (BLACK/RED) | BODY COLOR:YYG

68111-48K00-AWZ

$18.47

2-2

.EMBLEM,"SUZUKI" (GRAY,BLACK) | BODY COLOR:QEB

68111-48K00-BNS

$18.03

2-3

.EMBLEM,"SUZUKI" | BODY COLOR:YKY

68111-48K00-C4Y

$18.03

3

CAP SET,FUEL TANK FILLER

44200-17850

$145.35

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

FASTENER (33X25X2.6)

44572-13G00

$11.07

6

CUSHION, FUEL TANK SIDE

44541-41G00

$5.98

7

CUSHION, FUEL TANK REAR

44542-04K01

$8.87

8

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

9

SCREW, FUEL TANK FRONT BRKT

44543-04K00

$4.22

10

BRACKET, FUEL TANK FRONT

44521-04K00

$94.98

11

NUT (M6)

44523-47H00

$10.02

12

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

13

BOLT (6X30)

09116-06172

$2.50

14

CUSHION (10X22X13)

09320-10050

$3.35

15

CUSHION (6X18X6)

09320-06504

$4.96

16

HOSE, FUEL TANK DRAIN

44423-48K00

$16.73

17

CLAMP

09403-20307

Unavailable

18

PROTECTOR,FUEL TANK INNER

44283-06JA0

$3.08

19

BRACKET, FUEL TANK FRONT RH

44561-04K00

$9.47

20

BRACKET, FUEL TANK FRONT LH

44571-04K00

$9.47

21

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

22

CUSHION, FUEL TANK

44285-48K00

$11.63

23

FASTENER (20X15X2.6)

44572-44G00

$10.18

24

CLAMP, DRAIN HOSE

44484-07L00

$3.77

25

BRACKET, HOSE CLAMP

44485-07L00

$14.13

26

STAY, FUEL TANK

44560-23H00

$44.95

27

VESSEL,FUEL TANK INNER

44121-07L00

$16.65

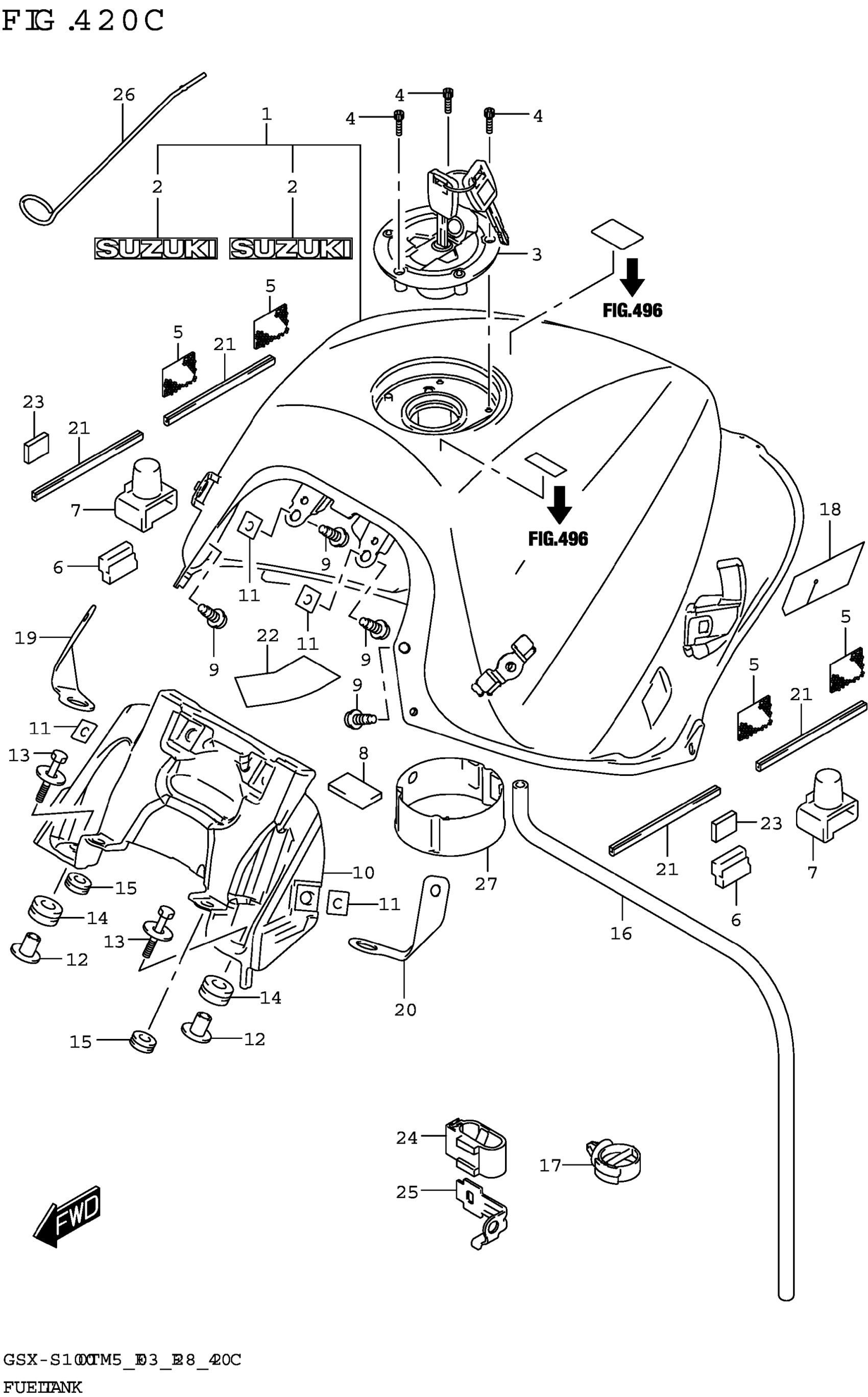

Suzuki GSX-S1000TRQM5(E03) (2025) FUEL TANK (E33) Diagram
