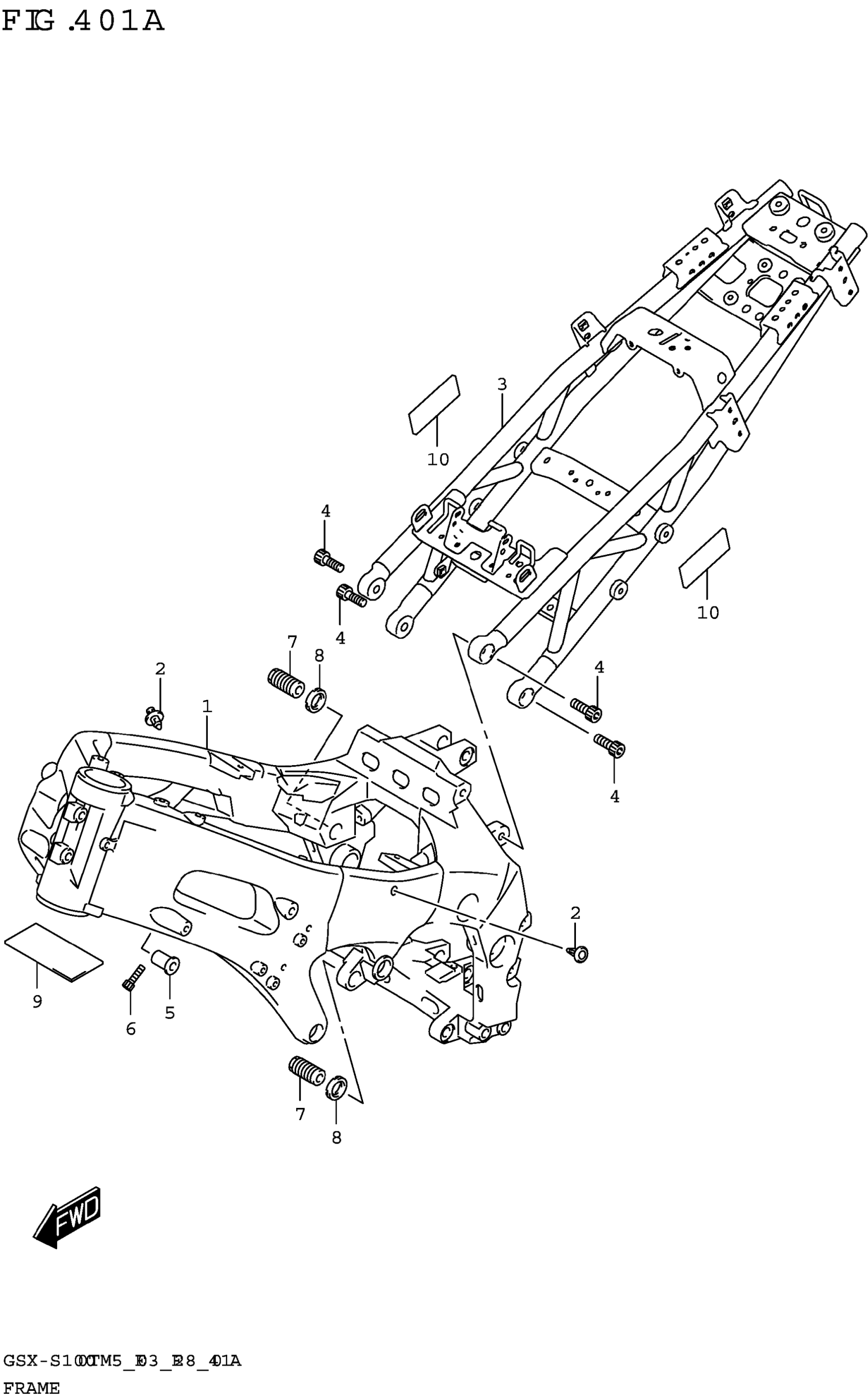

Suzuki GSX-S1000TRQM5(E03) (2025) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-04K11-YAP

$2,601.07

2

PLUG, TANK RAIL

43585-01H01

$4.78

3-1

RAIL,SEAT (SILVER) | BODY COLOR:YYG,QEB

41200-48K02-YMC

$574.98

3-2

RAIL,SEAT (GLAY) | BODY COLOR:YKY

41200-48K02-YPT

$574.98

4

BOLT

07120-1030A

$2.92

5

SPACER,ENGINE MOUNTING

41911-40F01

$22.56

6

BOLT (8X32)

09106-08185

$2.73

7

BOLT,CRANK CASE ADJUST LWR

41921-16G11

$11.93

8

NUT,CRANK CASE ADJUST LWR

41922-33E20

Unavailable

9

CUSHION, FRAME HEAD

41139-21H10

Unavailable

10

PROTECTOR (30X70)

94474-22D00

Unavailable
