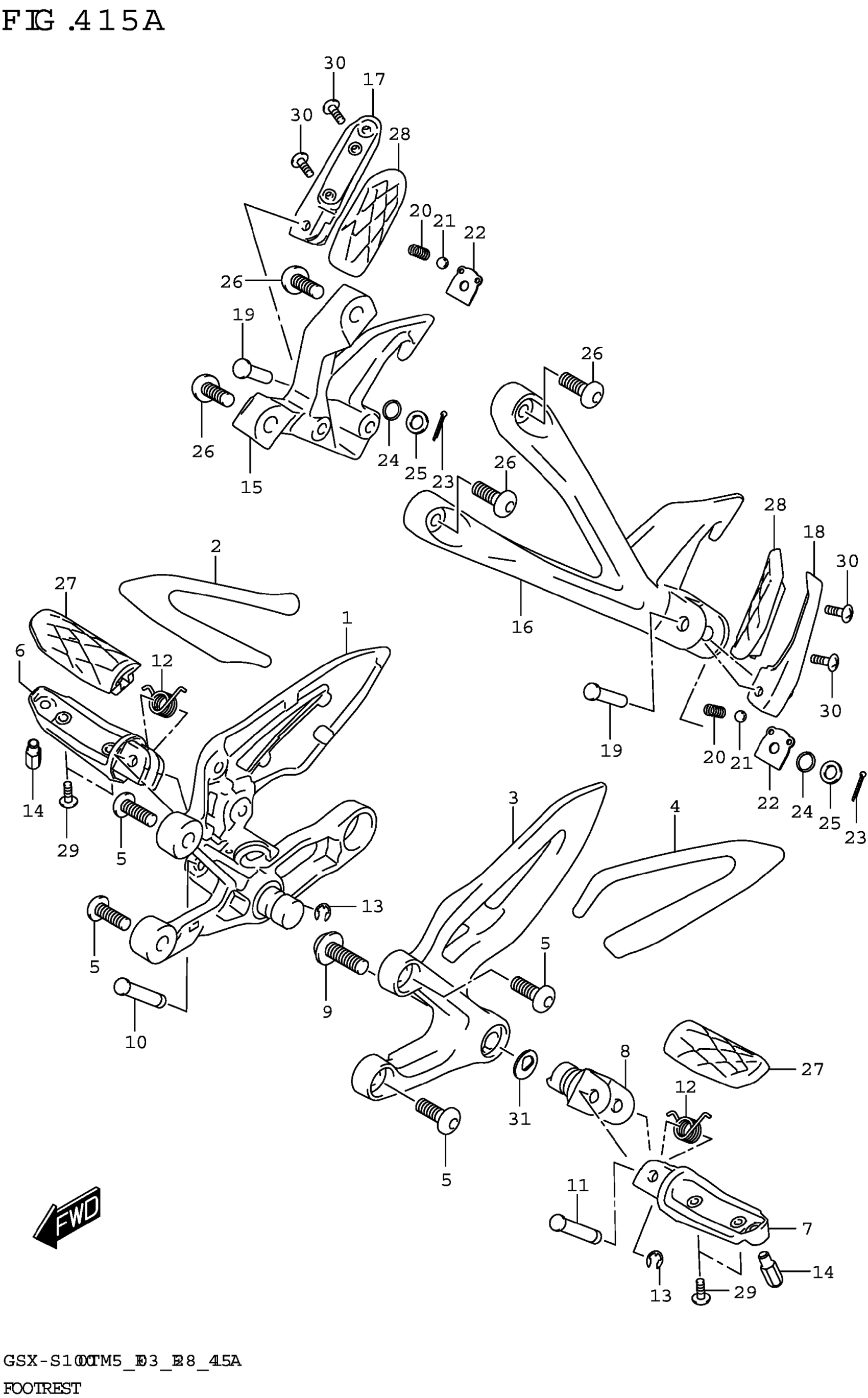

Suzuki GSX-S1000TRQM5(E03) (2025) FOOTREST Diagram

#

Description
Price

1

BRACKET, FR FOOTREST RH

43510-48K10

$110.40

2

TAPE, FR FOOTREST RH

43571-04K10

$27.42

3

BRACKET, FR FOOTREST LH

43521-48K10

$76.90

4

TAPE, FR FOOTREST LH

43572-04K10

$27.97

5

BOLT

09106-08209

$2.78

6

BAR, FRONT FOOTREST RH

43511-44G50

$31.67

7

BAR, FRONT FOOTREST LH

43521-44G50

$31.67

8

HOLDER,FOOTREST,L

43540-48K20

$39.73

9

BOLT (10X28)

09106-10064

$4.90

10

PIN

09208-08019

$2.79

11

PIN

09208-08018

$2.79

12

SPRING, FRONT FOOTREST

43581-48K00

$3.89

13

E-RING

08332-1106A

$1.49

14

BOLT, BANK SENSOR

43576-48B02

$7.48

15

BRACKET, PILLION FOOTREST RH

43811-48K00

$145.05

16

BRACKET, PILLION FOOTREST LH

43821-48K00

$145.05

17

BAR, PILLION FOOTREST RH

43611-10L00

$63.85

18

BAR, PILLION FOOTREST LH

43621-10L00

$63.85

19

PIN

09200-08076

$3.57

20

SPRING

09440-06039

$3.27

21

STEEL BALL This part replaces 06111-08004.

06111-08003

$1.49

22

PLATE, PILLION FOOTREST

43816-10L00

$6.20

23

PIN

04111-2015A

$1.49

24

O RING (D:2.4,ID:6.9)

18592-68K00

$4.82

25

WASHER (8.5X14X1.6)

09160-08090

$2.39

26

BOLT

09106-08213

$3.40

27

RUBBER, FOOTREST

43550-48K00

$26.40

28

RUBBER, FOOTREST

43550-10L00

$20.66

29

SCREW

09125-05147

$1.49

30

.SCREW

02142-0516A

$1.49

31

WASHER,FOOTREST HOLDER

43533-48K20

$23.28
