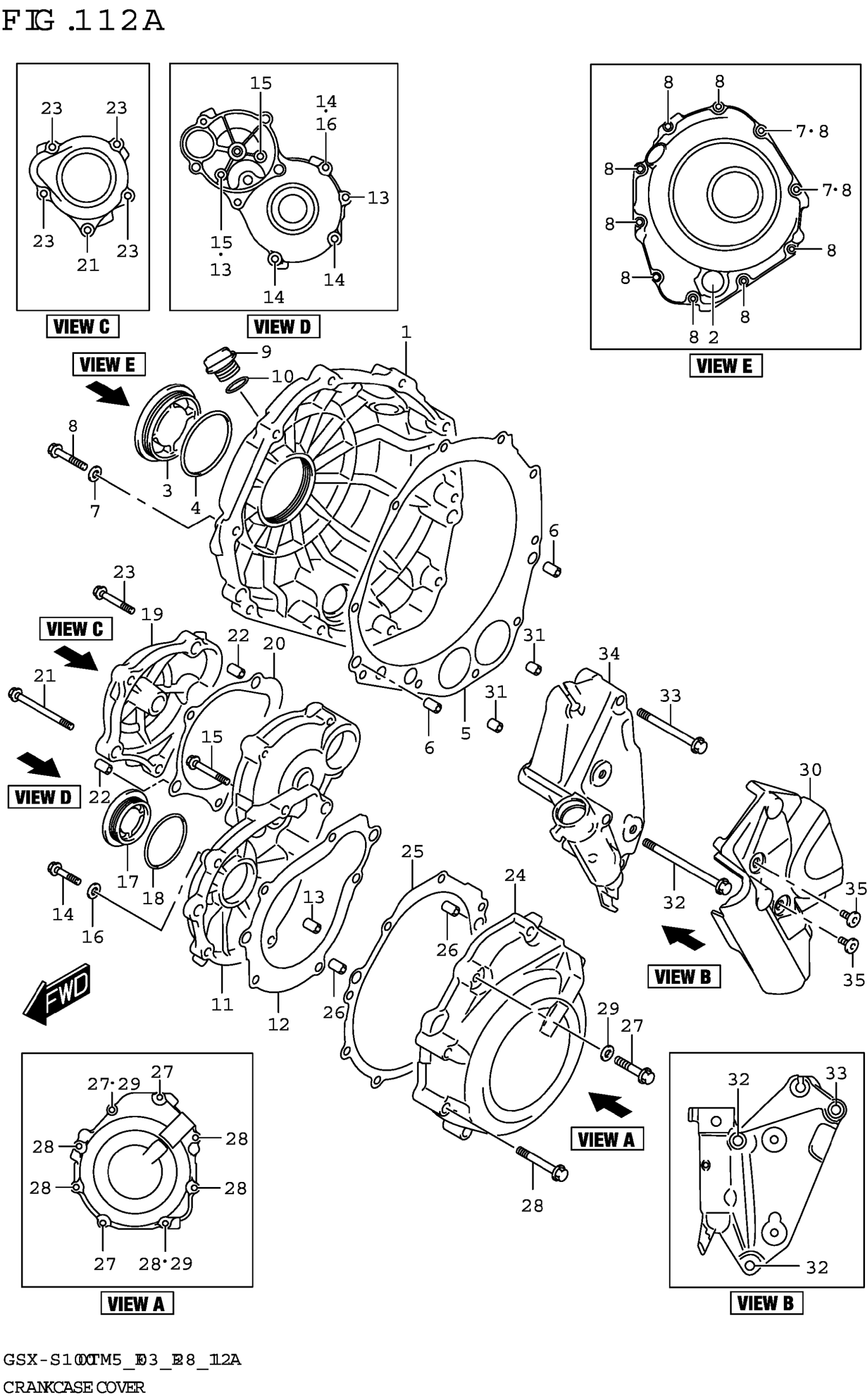

Suzuki GSX-S1000TRQM5(E03) (2025) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-04K10

$188.92

2

.LENS,OIL LEVEL CHECK

11971-33210

$18.20

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$25.03

4

O-RING (D:2.4,ID:52.6)

31156-17E00

$4.60

5

.GASKET, CLUTCH COVER

11482-40F10

$15.69

6

PIN

04211-09189

$1.65

7

GASKET (5.8X13X1.2)

09168-06023

$2.35

8

BOLT (6X30)

09103-06529

$1.96

9

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

10

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

11

COVER, STARTER CLUTCH

11381-04K00

$172.07

12

.GASKET, STARTER CLUTCH COVER

11491-33E02

$8.73

13

PIN (8.5X18X2.3)

04211-09149

$1.65

14

BOLT (6X25)

09103-06528

$1.91

15

BOLT (L:35)

09103-06530

$2.10

16

GASKET (5.8X13X1.2)

09168-06023

$2.35

17

PLUG (36X10)

09259-36021

$13.80

18

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

19

CAP, STARTER IDLE GEAR

11382-04K00

$55.22

20

.GASKET, START IDLE GR CAP

11492-04K00

$7.21

21

BOLT (6X60)

09103-06535

$2.88

22

PIN (8.5X18X2.3)

04211-09149

$1.65

23

BOLT (L:35)

09103-06530

$2.10

24

COVER, MAGNETO

11351-04K10

$113.76

25

.GASKET, MAGNETO COVER

11483-18G00

$11.07

26

PIN (8.5X18X2.3)

04211-09149

$1.65

27

BOLT (6X30)

09103-06529

$1.96

28

BOLT (6X40)

09103-06531

$2.30

29

GASKET (5.8X13X1.2)

09168-06023

$2.35

30

COVER, ENG SPROCKET

11361-48K00

$18.17

31

PIN

04211-09129

$1.65

32

BOLT (6X55)

09103-06534

$2.33

33

BOLT (6X95)

09103-06541

$3.65

34

HOLDER, CL RELEASE

11371-48K00

$35.85

35

SCREW (5X13)

47912-31J00

$2.92
