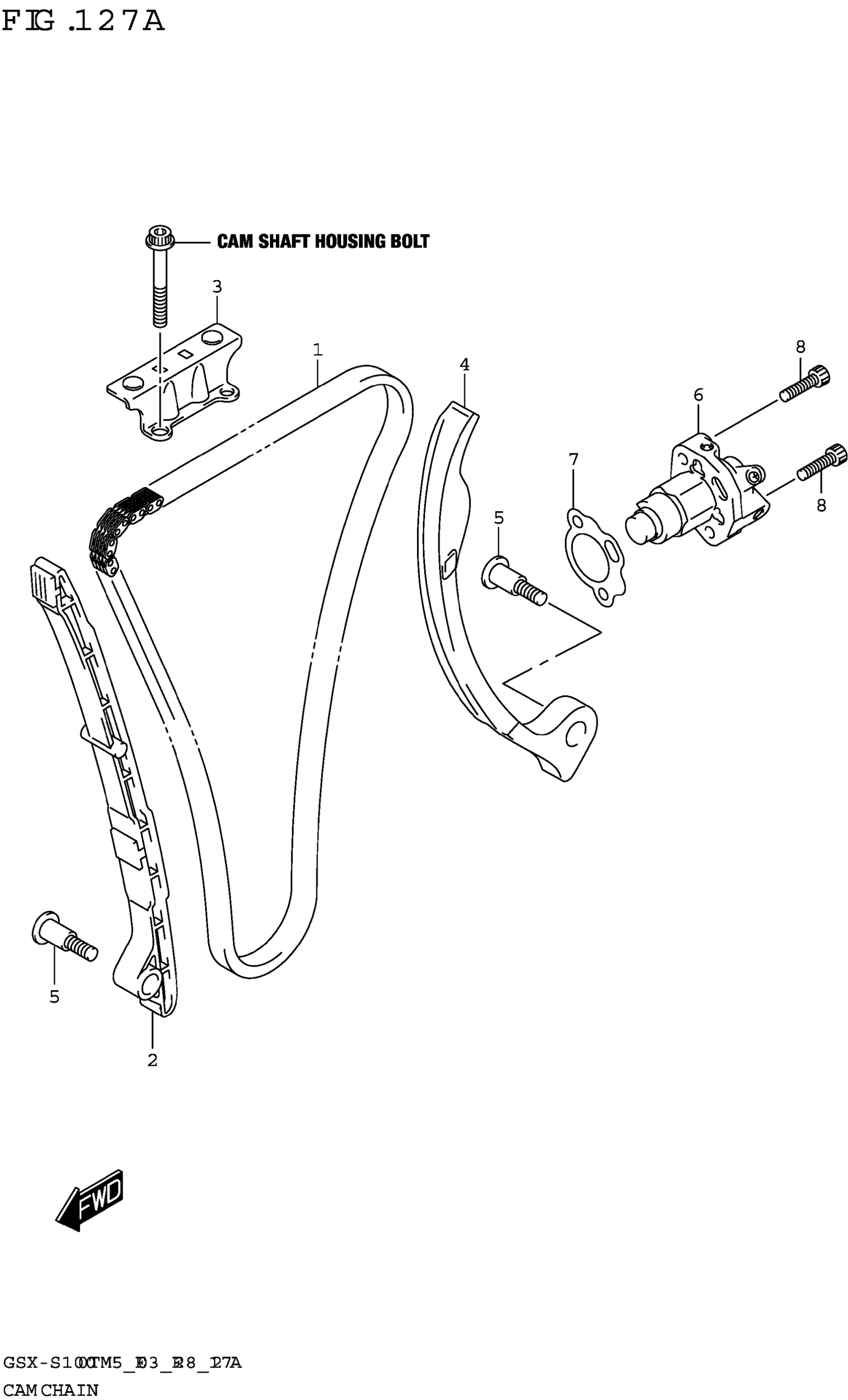

Suzuki GSX-S1000TRQM5(E03) (2025) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAMSHAFT DRIVE

12760-04K00

$134.98

2

GUIDE,CAM CHAIN NO.1

12771-21H02

Unavailable

3

GUIDE,CAM CHAIN NO.2

12782-35F11

$22.80

4

TENSIONER, CAM CHAIN

12811-47H01

$82.67

5

BOLT,CAM CHAIN TENSIONER

12812-31G00

$4.58

6

ADJUSTER ASSY, TENSIONER

12830-48K00

$251.75

7

.GASKET, TENSIONER ADJUSTER

12837-48K00

$2.68

8

BOLT (6X25)

07130-0625A

$2.62
