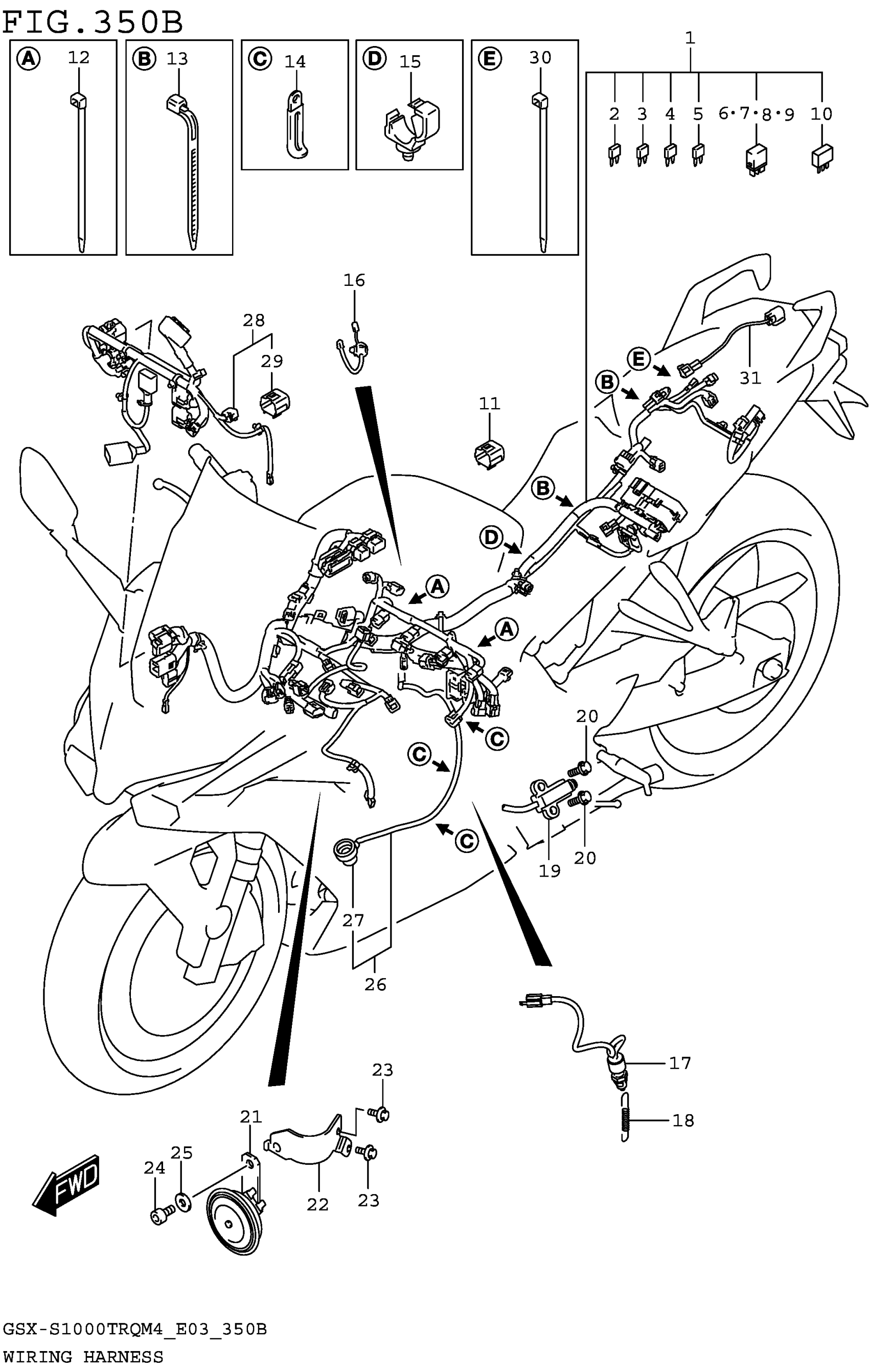

Suzuki GSX-S1000TRQM4 (2024) WIRING HARNESS (GSX-S1000TRQM4 E28) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-48KD0

$927.85

2

.FUSE

09481-01501

$3.70

3

.FUSE (10A)

09481-10504

$2.04

4

.FUSE (15A)

09481-15504

$2.57

5

.FUSE (20A)

09481-20504

$2.08

6

.RELAY ASSY | FUEL PUMP

38860-76F01

$31.02

7

.RELAY ASSY | FAN MOTOR

38860-76F01

$31.02

8

.RELAY ASSY | STARTER

38860-76F01

$31.02

9

.RELAY ASSY | HORN

38860-76F01

$31.02

10

.DIODE

36611-38A10

$12.39

11

CAP,OBD CONNECTOR

36654-28K00

$9.85

12

CLAMP (L:145)

09407-14407

$2.80

13

CLAMP (L:165)

09407-18402

$2.21

14

CLAMP, OIL PRESS LEAD

36651-07L00

$15.70

15

CLAMP

09403-20311

$2.37

16

WIRE, FAN MOTOR LEAD

36852-10L00

$34.67

17

SWITCH ASSY, STOP LAMP

37740-48K01

$84.88

18

SPRING, BRAKE LAMP SWITCH

43232-48K00

$2.37

19

SWITCH ASSY, SIDE STAND

37840-48K00

$112.35

20

BOLT (6X20)

01550-0620A

$1.97

21

HORN ASSY

38500-48K00

$44.63

22

PLATE, HORN

38590-04K10

$15.10

23

BOLT (6X16)

09116-06006

$1.88

24

BOLT

07130-0812A

$4.03

25

WASHER (8.5X22X2.0)

09160-08127

$2.13

26

WIRE, OIL PRESSURE SWITCH LEA

36851-48K00

$18.00

27

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

28

HARNESS, WIRING NO.2

36620-48KA0

$360.35

29

CAP,TS

36654-06J01

$15.63

30

CLAMP (L:190)

09407-19401

$3.32

31

WIRE,REAR COMB LAMP LEAD

36853-48KA0

$22.42
