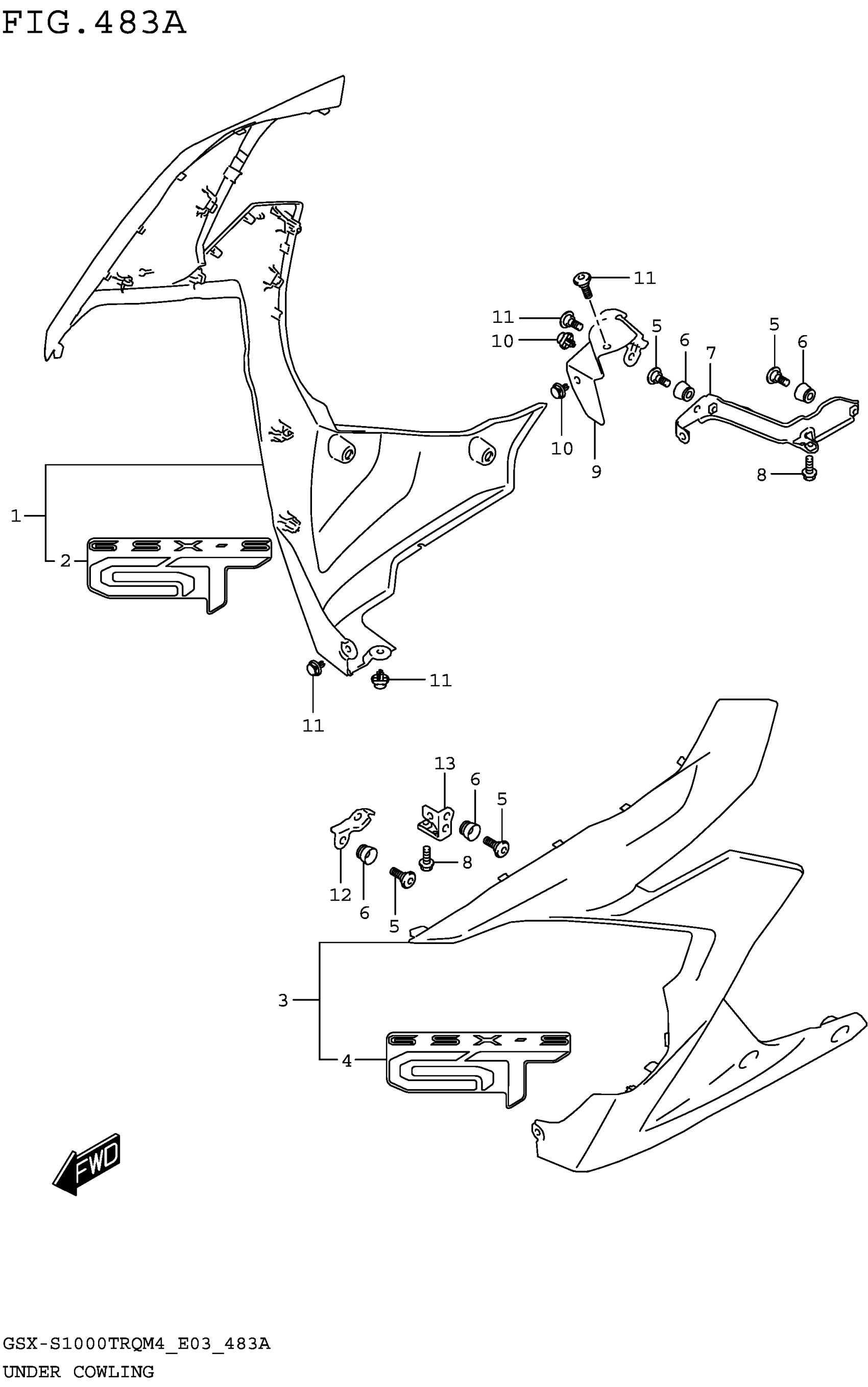

Suzuki GSX-S1000TRQM4 (2024) UNDER COWLING Diagram

#

Description
Price

1-1

COWLING, SIDE UPR RH (BLUE) | FOR YSF

94470-48K00-YSF

$309.33

1-2

COWLING, SIDE UPR RH (BLACK) | FOR YVB

94470-48K00-6UX

$265.38

1-3

COWLING, SIDE UPR RH (RED) | FOR YYG

94470-48K00-YYG

$265.38

2-1

.EMBLEM, SIDE COWLING UPR | FOR YSF

68131-48K10-CC4

$32.05

2-2

.EMBLEM, SIDE COWLING UPR | (SILVER/BLACK) FOR YVB

68131-48K10-CRC

$28.08

2-3

.EMBLEM, SIDE COWLING UPR | FOR YYG

68131-48K10-CRB

$28.08

3-1

COWLING, SIDE UPR LH (BLUE) | FOR YSF

94480-48K00-YSF

$309.33

3-2

COWLING, SIDE UPR LH (BLACK) | FOR YVB

94480-48K00-6UX

$265.38

3-3

COWLING, SIDE UPR LH (RED) | FOR YYG

94480-48K00-YYG

$265.38

4-1

.EMBLEM, SIDE COWLING UPR | FOR YSF

68131-48K10-CC4

$32.05

4-2

.EMBLEM, SIDE COWLING UPR | (SILVER/BLACK) FOR YVB

68131-48K10-CRC

$28.08

4-3

.EMBLEM, SIDE COWLING UPR | FOR YYG

68131-48K10-CRB

$28.08

5

SCREW (6X20)

09139-06206

$3.32

6

CUSHION,UNDER COWLING,L

94479-15H00

$4.48

7

BRACKET, UNDER COWL RH

94530-48K00

$29.25

8

BOLT

01550-0612A

$1.97

9

COVER, UNDER RH

94472-07L00

$28.45

10

SCREW (6X13)

09139-06220

$3.78

11

CLIP

94479-35F00

$5.62

12

BRACKET, UNDER COWL FR LH

94520-48K00

$10.58

13

BRACKET, UNDER COWL RR LH

94540-07L00

$19.07
