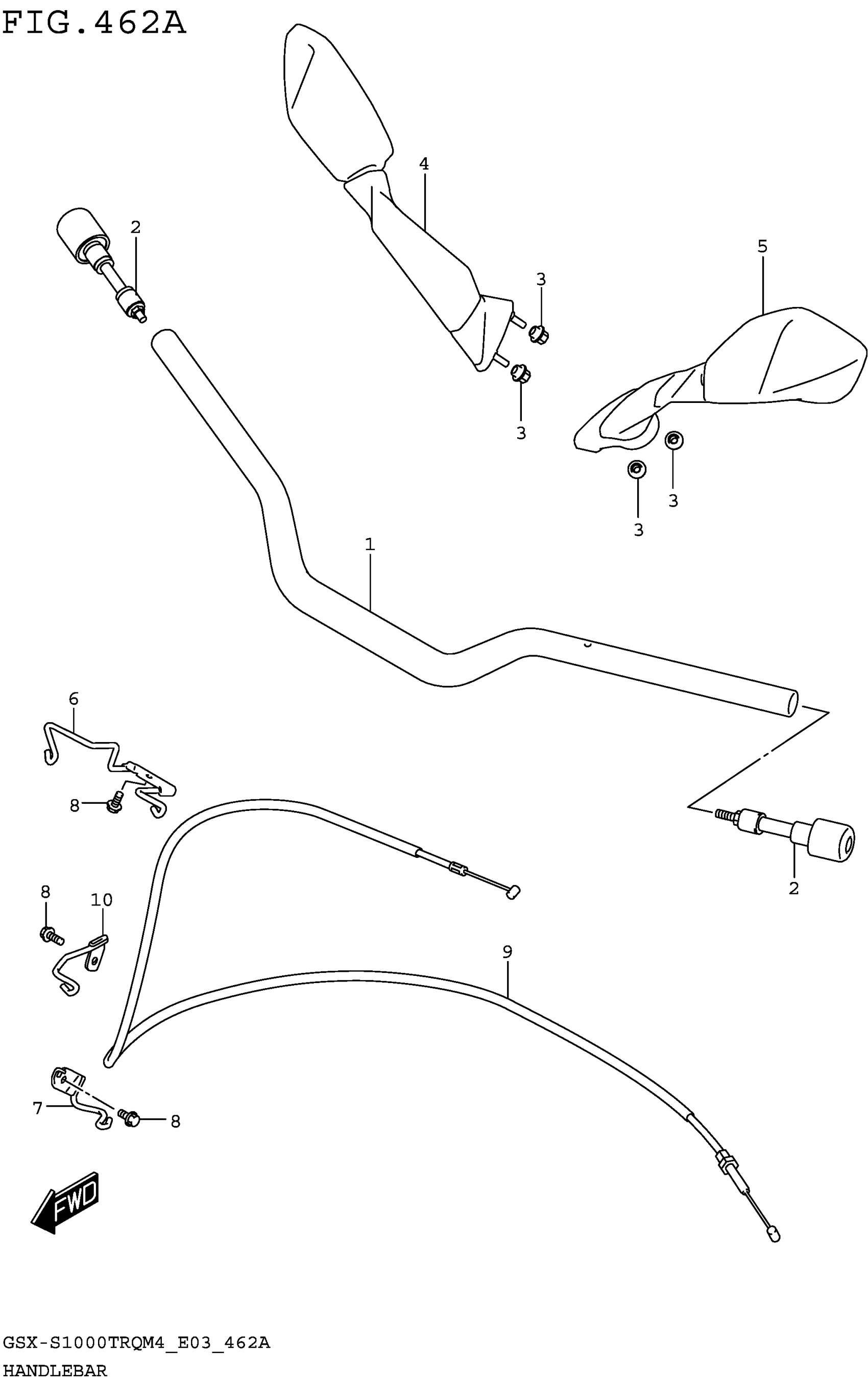

Suzuki GSX-S1000TRQM4 (2024) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-48K10

$296.63

2

BALANCER ASSY, HANDLEBAR

56270-32E00

$32.93

3

NUT,RR VIEW MIRROR

56619-41G01

$8.52

4

MIRROR ASSY, REAR VIEW RH

56500-48K00

$152.77

5

MIRROR ASSY, REAR VIEW LH

56600-48K00

$152.77

6

GUIDE, CABLE

58620-48K10

$19.80

7

GUIDE, CLUTCH CABLE NO.2

58650-48K01

$20.87

8

BOLT

01547-0612B

$1.22

9

CABLE ASSY, CLUTCH

58200-48K00

$39.30

10

GUIDE, CLUTCH CABLE

58640-04K00

$14.37
