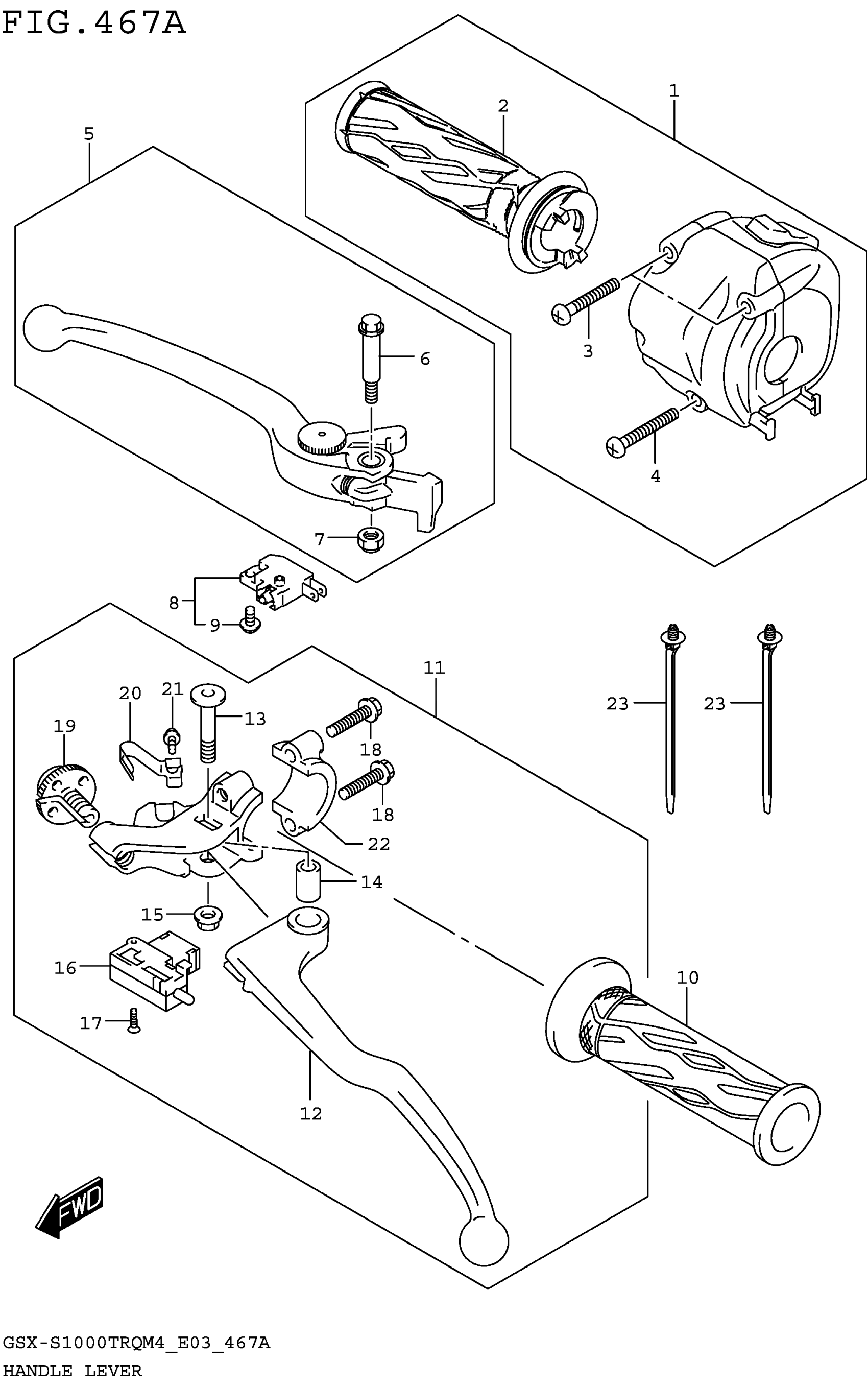

Suzuki GSX-S1000TRQM4 (2024) HANDLE LEVER Diagram

#

Description
Price

1

GRIP ASSY,THROT This part replaces 57100-06L30.

57100-06L31

$350.25

2

.GRIP,THROTTLE This part replaces 57110-06L00.

57110-06L10

$33.75

3

.SCREW

02112-0530B

$1.45

4

.SCREW

02112-0540B

$2.88

5

LEVER ASSY,FRONT BRAKE

57300-10G40

$59.76

6

.BOLT,LEVER PIVOT

57431-17H02

$6.72

7

.NUT

08319-2106A

$1.89

8

SWITCH ASSY, FRONT BRAKE

37750-48K00

$99.03

9

.SCREW, FRONT BRAKE SWITCH

37755-48K00

$2.60

10

GRIP,L

57211-21H01

$10.18

11

LEVER SET, CLUTCH

57059-48K00

$147.12

12

.LEVER, CLUTCH

57621-48K00

$25.15

13

.BOLT,LEVER PIVOT

57431-41G60

$11.78

14

.COLLAR

57532-41G00

$18.07

15

NUT

08319-3106B

$2.47

16

.SWITCH ASSY,CLUTCH

57560-05A10

$29.04

17

.SCREW,CLUTCH SWITCH

57562-41G01

$10.82

18

BOLT

01547-0625B

$2.43

19

.NUT,ADJUSTER

57641-33E21

$46.38

20

.SPRING,ADJUST

57644-33E10

Unavailable

21

.SCREW,ADJUST

57642-33E10

Unavailable

22

.HOLDER, CLUTCH LEVER

57512-48K00

$26.17

23

CLAMP (L:170)

09407-17403

$4.63
