Description

Price

1-1

TANK ASSY, FUEL (BLUE)

44100-48K10-YSF

$1,177.05

1-2

TANK ASSY, FUEL (BLACK)

44100-48K10-YVB

$1,177.05

1-3

TANK ASSY, FUEL (RED)

44100-48K10-YYG

$1,006.80

2-1

.EMBLEM, SUZUKI (SILVER/BLUE) | FOR YSF

68111-48K00-CC2

$22.25

2-2

.EMBLEM, SUZUKI (GRAY/BLACK) | FOR YVB

68111-48K00-AA3

$22.25

2-3

.EMBLEM, SUZUKI (BLACK/RED) | FOR YYG

68111-48K00-AWZ

$18.47

3

CAP SET,FUEL TANK FILLER

44200-17840

$166.45

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

FASTENER (33X25X2.6)

44572-13G00

$11.07

6

CUSHION, FUEL TANK SIDE

44541-41G00

$5.98

7

CUSHION, FUEL TANK REAR

44542-04K01

$8.87

8

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

9

SCREW, FUEL TANK FRONT BRKT

44543-04K00

$4.22

10

BRACKET, FUEL TANK FRONT

44521-04K00

$94.98

11

NUT (M6)

44523-47H00

$10.02

12

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

13

BOLT (6X30)

09116-06172

$2.50

14

CUSHION (10X22X13)

09320-10050

$3.35

15

CUSHION (6X18X6)

09320-06504

$4.96

16

HOSE, FUEL TANK DRAIN

44423-48K00

$16.73

17

CLAMP

09403-20307

Unavailable

18

PROTECTOR, FUEL TANK

44283-06J00

$6.10

19

BRACKET, FUEL TANK FRONT RH

44561-04K00

$9.47

20

BRACKET, FUEL TANK FRONT LH

44571-04K00

$9.47

21

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

22

CUSHION, FUEL TANK

44285-48K00

$11.63

23

FASTENER (20X15X2.6)

44572-44G00

$10.18

24

CLAMP, DRAIN HOSE

44484-07L00

$3.77

25

BRACKET, HOSE CLAMP

44485-07L00

$14.13

26

STAY, FUEL TANK

44560-23H00

$44.95

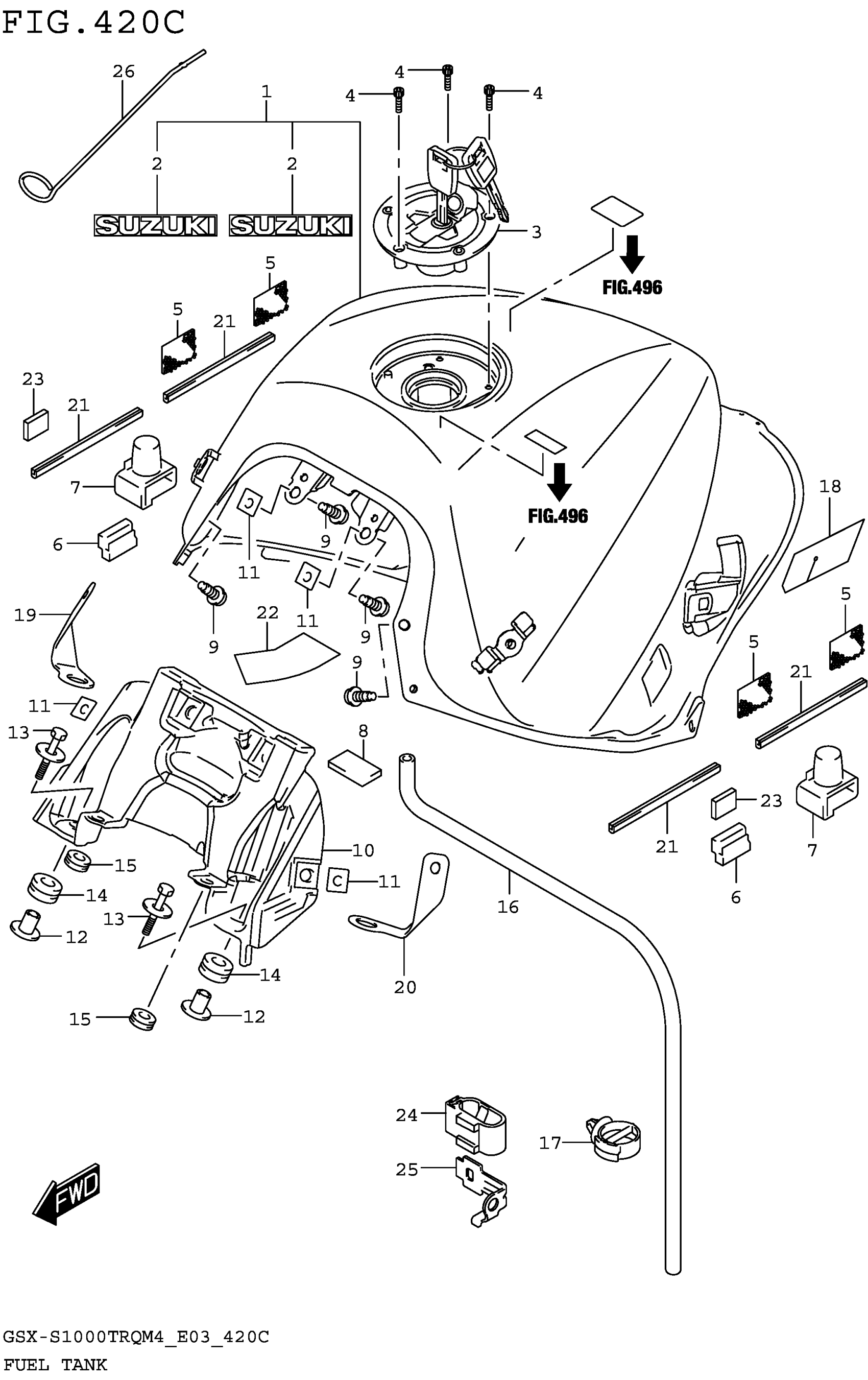

Suzuki GSX-S1000TRQM4 (2024) FUEL TANK (GSX-S1000TRQM4 E33) Diagram
