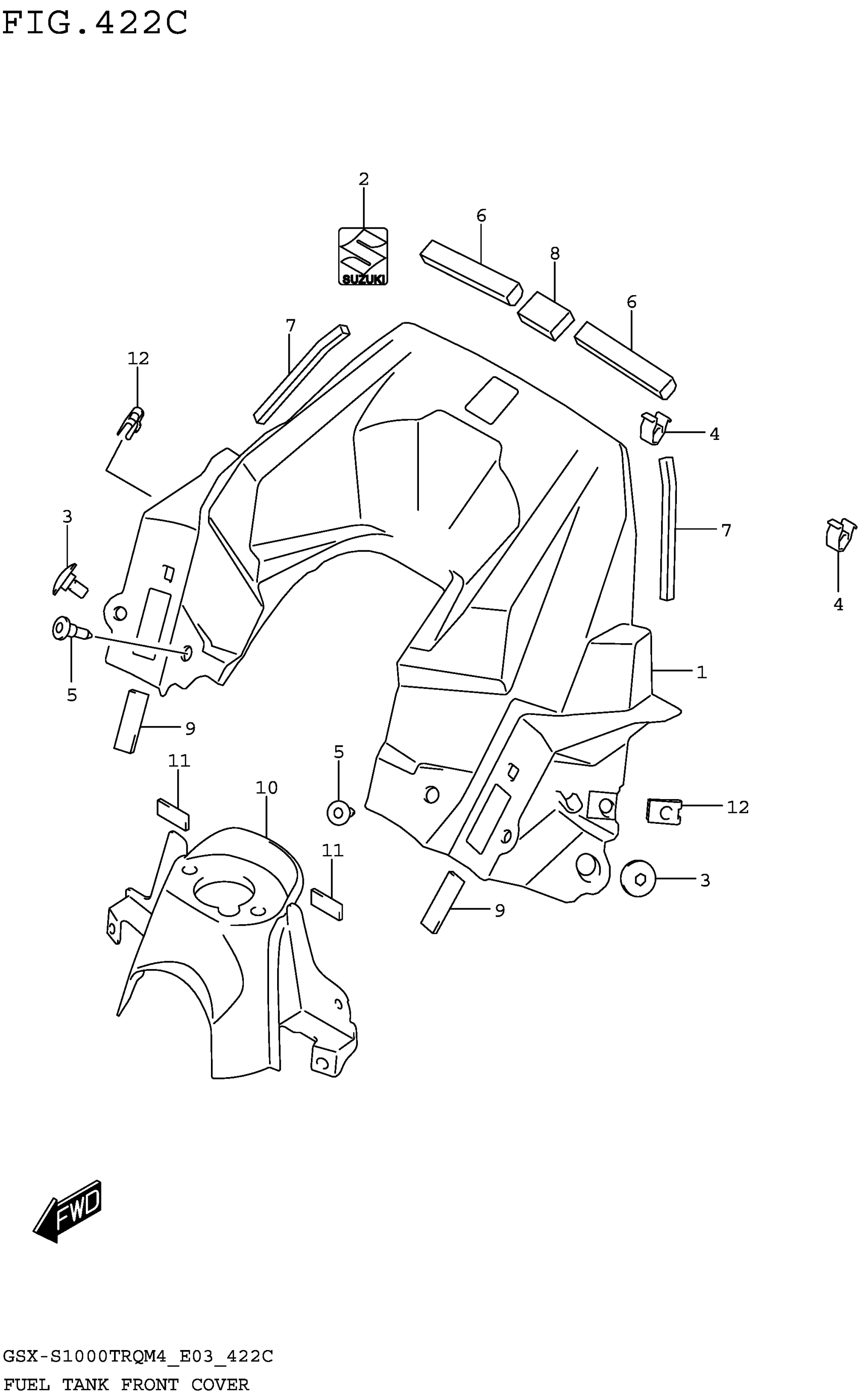

Suzuki GSX-S1000TRQM4 (2024) FUEL TANK FRONT COVER (GSX-S1000TRQM4 E33) Diagram

#

Description
Price

1

COVER, FUEL TANK FRONT

44281-48K00

$62.20

2

EMBLEM,S

68281-47HA0

$7.11

3

SCREW (6X12)

09139-06200

$3.70

4

CLIP (10.5X14.3)

09409-08326

$2.45

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

6

CUSHION, FUEL TANK COVER NO.1

44282-48K00

$9.13

7

CUSHION, FUEL TANK COVER NO.2

44283-48K00

$0.90

8

CUSHION, FUEL TANK COVER NO.5

44286-48K00

$0.44

9

CUSHION (10X30X2)

44894-24A00

$1.78

10

COVER, FUEL TANK LOWER

44271-04K01

$25.82

11

CUSHION (10X30X2)

44894-24A00

$1.78

12

NUT (M5)

09148-05052

$3.04
