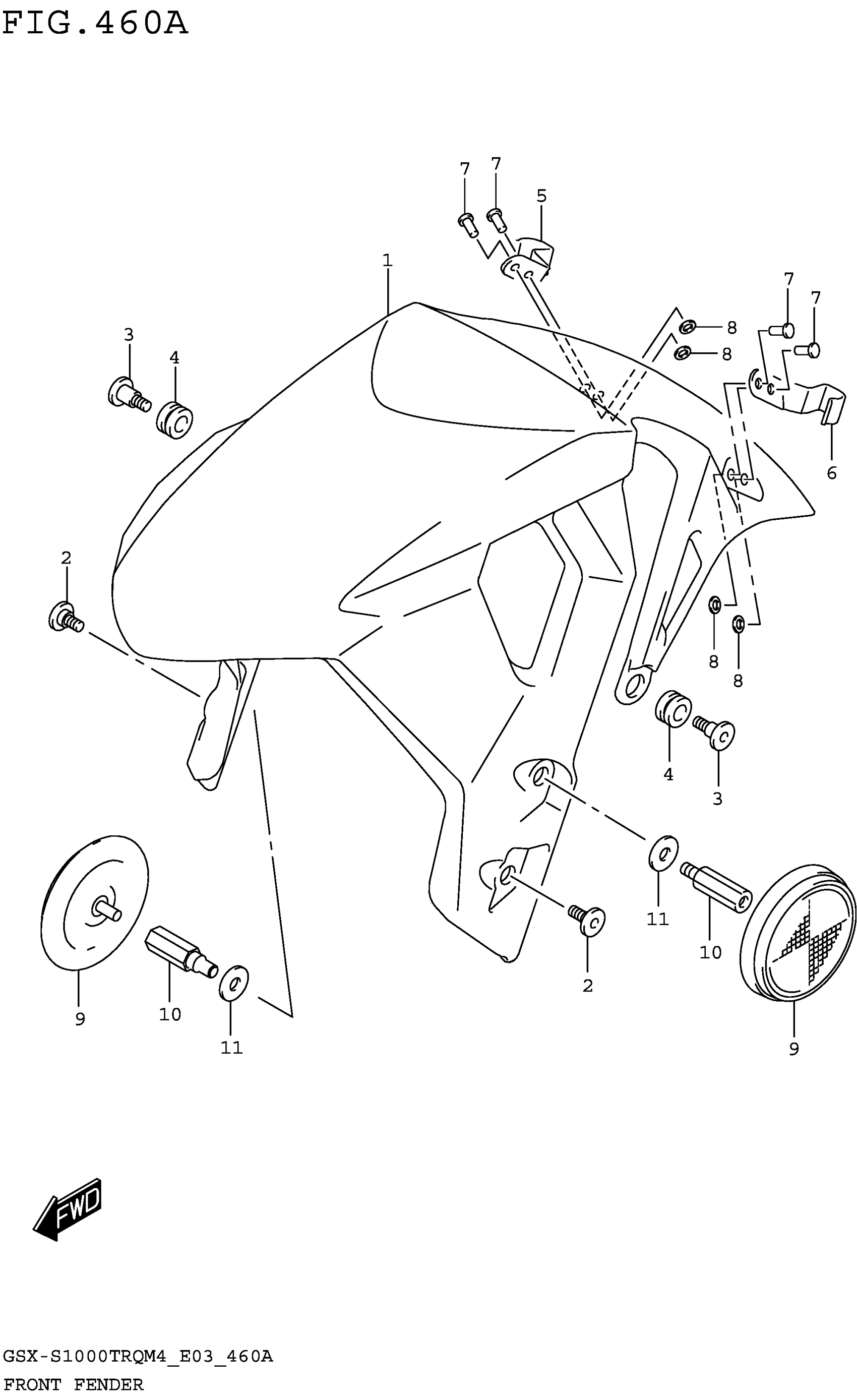

Suzuki GSX-S1000TRQM4 (2024) FRONT FENDER Diagram

#

Description
Price

1-1

FENDER, FRONT (BLACK) | FOR YSF

53111-48K00-YKV

$193.52

1-2

FENDER, FRONT (BLACK) | FOR YVB,YYG

53111-48K00-YVB

$198.37

2

SCREW (6X16)

09139-06222

$2.80

3

SCREW (6X20)

09139-06206

$3.09

4

CUSHION (9X18X9.5)

09320-09016

$2.01

5

CLAMP, BRAKE HOSE RH

53117-04K00

$5.65

6

CLAMP, BRAKE HOSE LH

53118-04K00

$5.65

7

RIVET

09229-04038

$0.52

8

WASHER (4.15X12X0.8)

09160-04030

$2.23

9

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$16.08

10

BOLT

09119-06109

$14.43

11

WASHER (8.5X18X1.0)

09160-08043

$1.81
