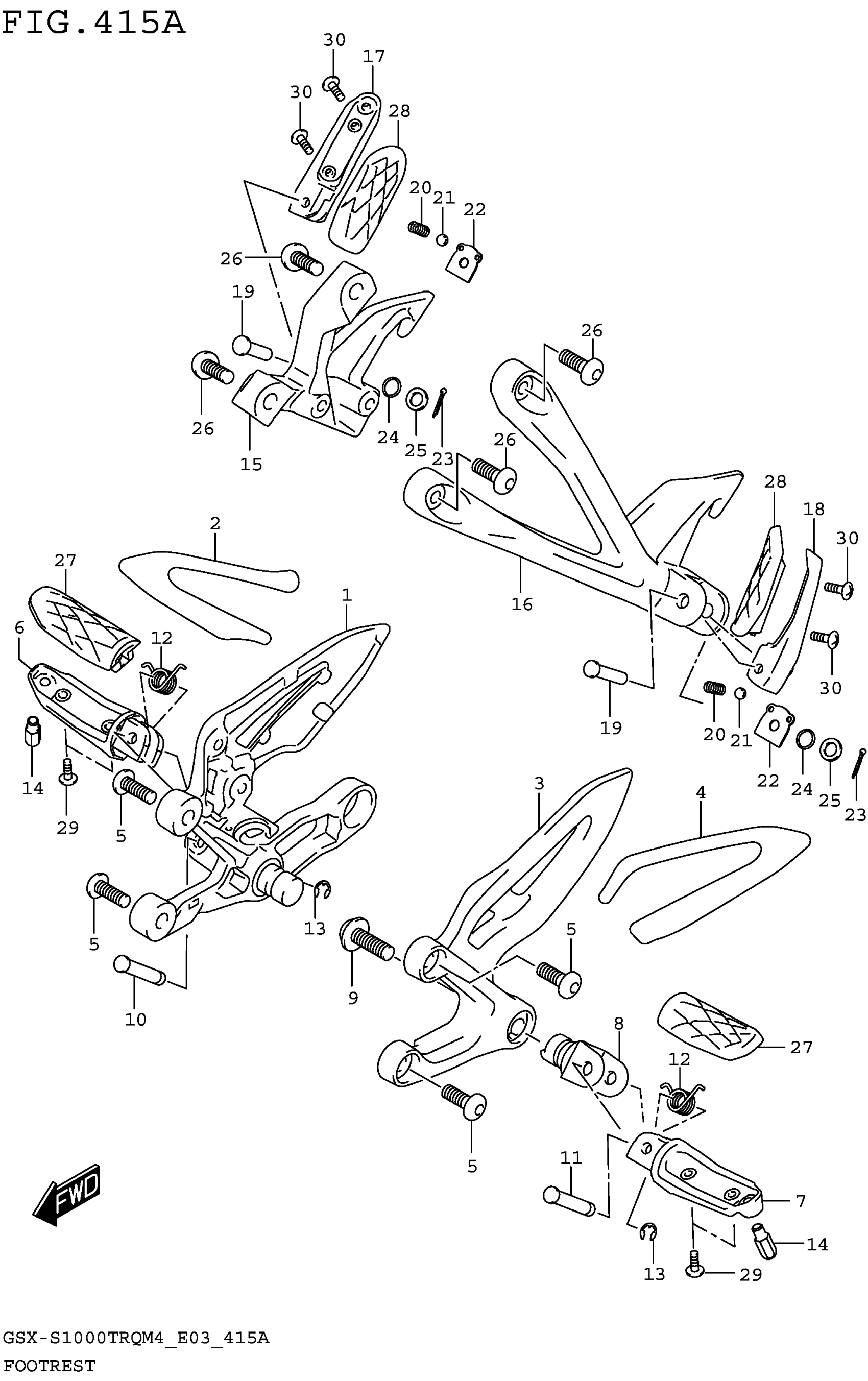

Suzuki GSX-S1000TRQM4 (2024) FOOTREST Diagram

#

Description
Price

1

BRACKET, FR FOOTREST RH

43510-48K10

$124.00

2

TAPE, FR FOOTREST RH

43571-04K10

$30.93

3

BRACKET, FR FOOTREST LH

43521-48K10

$86.37

4

TAPE, FR FOOTREST LH

43572-04K10

$31.55

5

BOLT

09106-08209

$3.02

6

BAR, FRONT FOOTREST RH

43511-44G50

$25.35

7

BAR, FRONT FOOTREST LH

43521-44G50

$35.75

8

HOLDER, FOOTREST LH

43540-48K10

$51.53

9

BOLT (10X28)

09106-10064

$4.42

10

PIN

09208-08019

$2.77

11

PIN

09208-08018

$2.77

12

SPRING, FRONT FOOTREST

43581-48K00

$3.66

13

E-RING

08332-1106A

$1.43

14

BOLT, BANK SENSOR

43576-48B02

$6.85

15

BRACKET, PILLION FOOTREST RH

43811-48K00

$161.42

16

BRACKET, PILLION FOOTREST LH

43821-48K00

$161.42

17

BAR, PILLION FOOTREST RH

43611-10L00

$72.07

18

BAR, PILLION FOOTREST LH

43621-10L00

$72.07

19

PIN

09200-08076

$3.88

20

SPRING

09440-06039

$3.57

21

STEEL BALL This part replaces 06111-08004.

06111-08003

$1.30

22

PLATE, PILLION FOOTREST

43816-10L00

$7.00

23

PIN

04111-2015A

$1.22

24

O RING (D:2.4,ID:6.9)

18592-68K00

$5.43

25

WASHER (8.5X14X1.6)

09160-08090

$2.38

26

BOLT

09106-08213

$3.70

27

RUBBER, FOOTREST

43550-48K00

$29.80

28

RUBBER, FOOTREST

43550-10L00

$18.91

29

SCREW

09125-05147

$0.87

30

.SCREW

02142-0516A

$1.43
