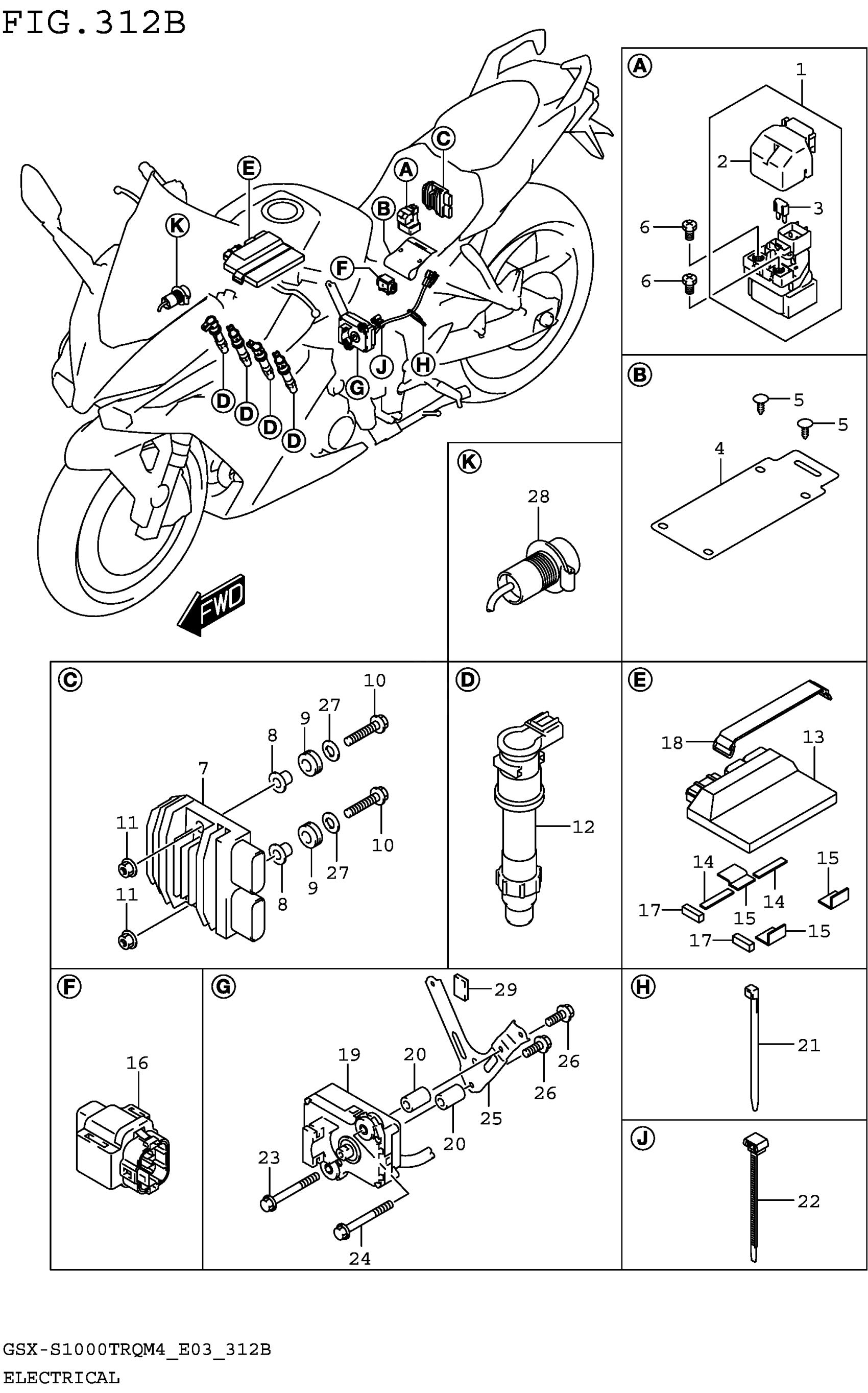

Suzuki GSX-S1000TRQM4 (2024) ELECTRICAL (GSX-S1000TRQM4 E28) Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$92.59

2

.COVER

31861-38G00

$4.88

3

.FUSE (30A)

09481-30501

$2.32

4

PROTECTOR, LEAD WIRE

33972-48K00

$8.62

5

CLIP (BLACK)

09409-10303-5ES

Unavailable

6

SCREW (6X8)

09128-06013

$1.49

7

RECTIFIER ASSY

32800-26J10

$194.70

8

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

9

RUBBER,INERTIAL SENSOR MTG

55763-17K00

$4.77

10

BOLT

01550-0635A

$2.32

11

NUT (6X12)

08316-1006A

$2.19

12

COIL ASSY, IGNITION

33410-47H00

$150.98

13

HARDWARE, FI CONTROL UNIT

32910-48K00

$923.70

14

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

15

CUSHION (30X40X2.0)

33652-36100

$2.36

16

SENSOR ASSY, FUEL CUT

33960-28K01

$67.30

17

CUSHION,TANK COVER FR (10X30X | (10X30X8)

44277-18K00

$2.90

18

BAND

09462-00015

$11.10

19

ACTUATOR ASSY, EXHAUST CONTRO

33970-48G02

$409.57

20

SPACER (6.2X14.5X26)

09180-06345

$10.28

21

CLAMP

09403-10319

Unavailable

22

CLAMP

09407-14413

Unavailable

23

BOLT

01550-0650A

$2.85

24

BOLT

01550-0655A

Unavailable

25

BRACKET, ACTUATOR

47420-04K00

Unavailable

26

BOLT

01547-0616A

$2.03

27

WASHER (6.5X20X1.2)

09160-06077

$1.91

28

SOCKET, USB

39105-48K00

$95.72

29

CUSHION

65742-48K00

$6.02
