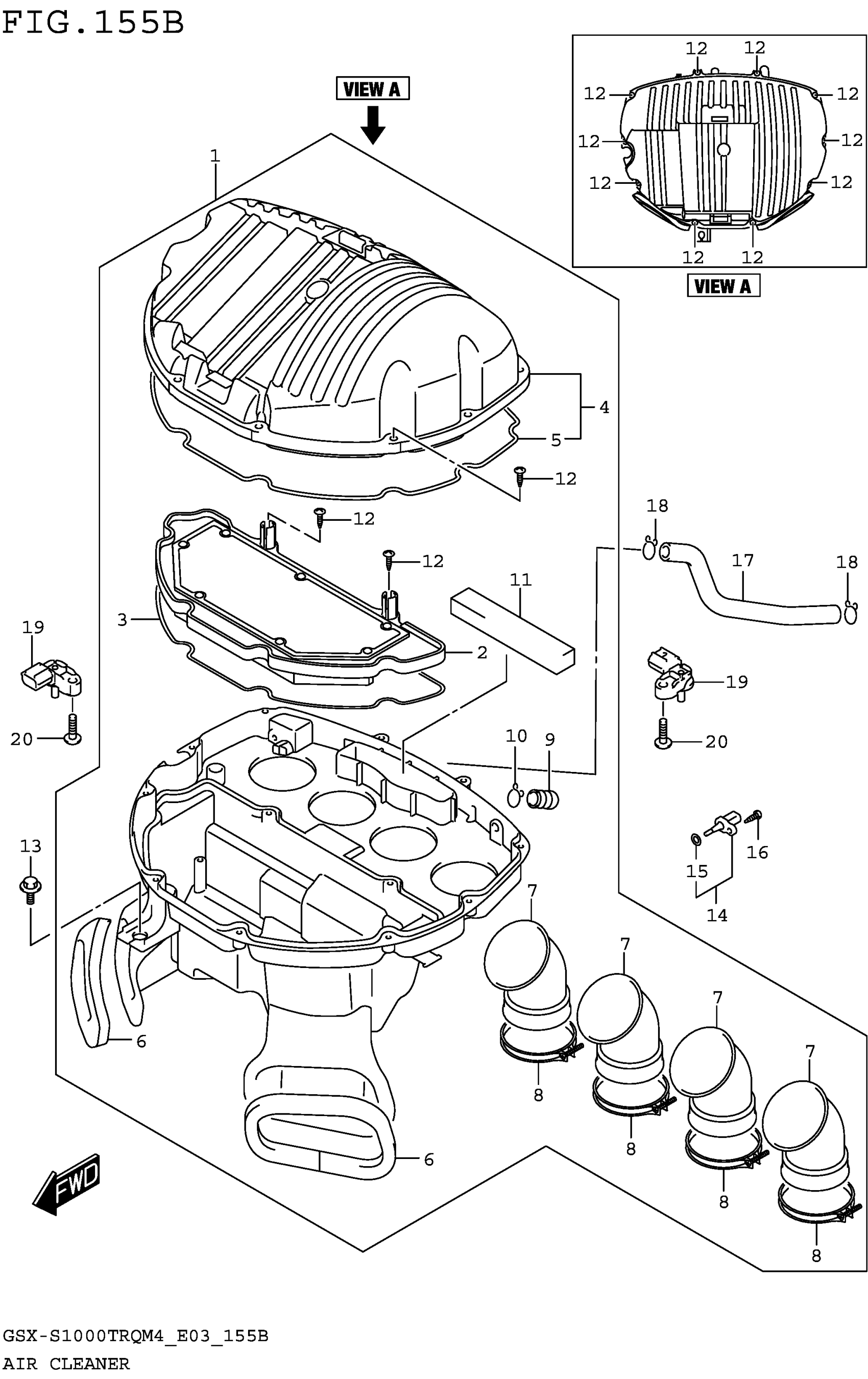

Suzuki GSX-S1000TRQM4 (2024) AIR CLEANER (GSX-S1000TRQM4 E28) Diagram

Description

Price

CLEANER ASSY, AIR

13700-48K00

$304.75

.FILTER ASSY

13780-48K00

$55.80

.GASKET FILTER

13756-48K00

$16.80

.CAP, AIR CLEANER

13740-48K00

$64.42

..GASKET, CAP

13746-48K00

$19.70

.CUSHION, DUCT

13736-48K00

$9.40

.TUBE, OUTLET

13881-48K00

$20.87

CLAMP,INTAKE PIPE

13827-40H01

$17.33

.PLUG

13878-10G01

$6.53

.CLIP

09401-14301

$2.17

.FILTER BREATHER

13788-48K00

$5.17

SCREW

03541-0520A

$1.81

BOLT (6X16)

09111-06089

$2.61

SENSOR,AIR TEMP

13650-41F10

$71.40

O-RING

13655-41F10

Unavailable

SCREW

03511-0516A

$1.88

HOSE, BREATHER

13853-04K01

$15.38

.CLIP (ID:14.5)

09401-14101

$2.37

SENSOR,BOOST

18590-18K10

$234.95

SCREW

03541-0520A

$1.81
