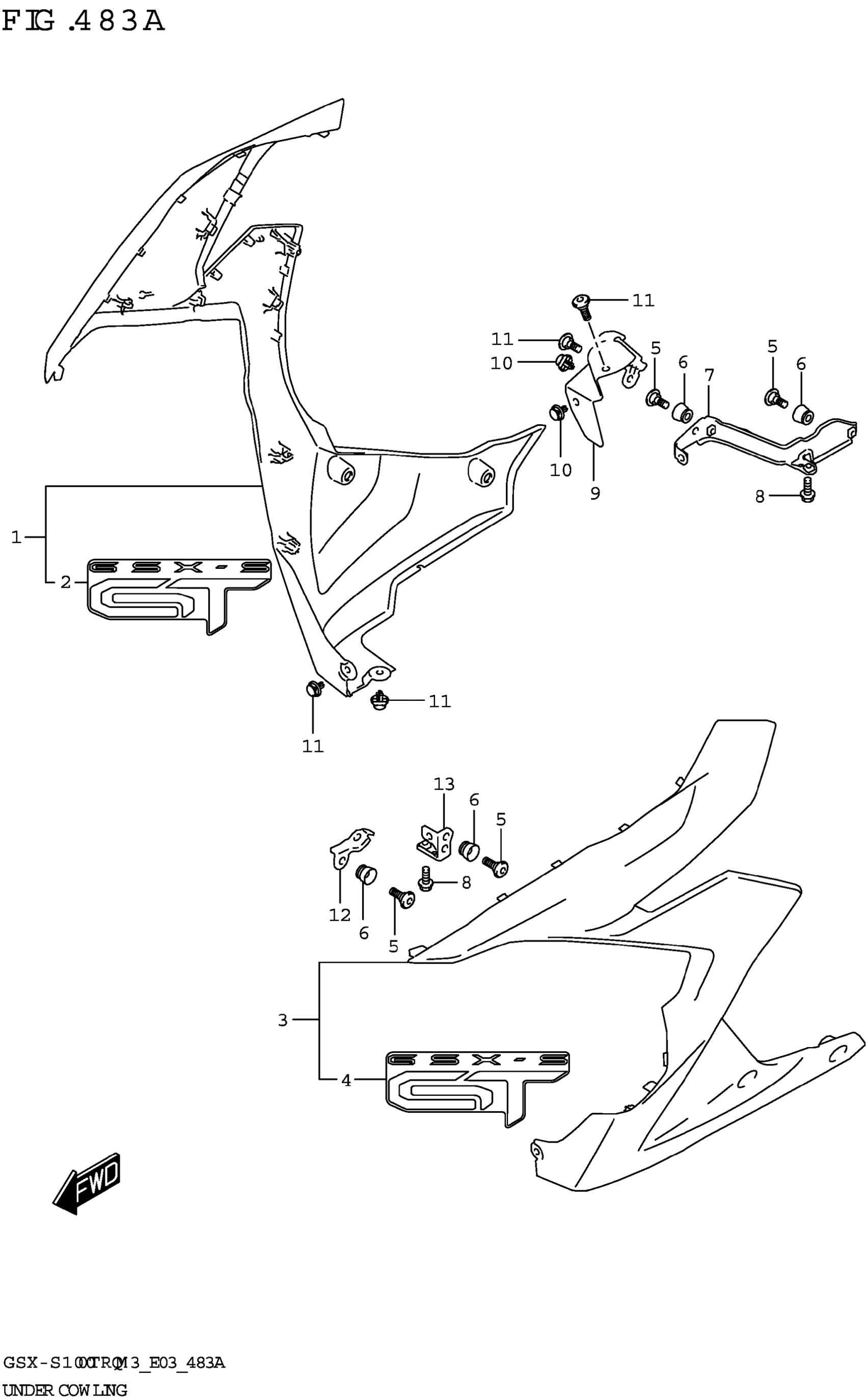

Suzuki GSX-S1000TRQM3 (2023) UNDER COWLING Diagram

#

Description
Price

1-1

COWLING, SIDE UPR RH (BLUE) | BODY COLOR:YSF

94470-48K00-YSF

$309.33

1-2

COWLING,SIDE UPR,R (BLACK) | BODY COLOR:YVB

94470-48K00-YVB

$309.33

1-3

COWLING,SIDE UPR,R (BLUE) | BODY COLOR:QT8

94470-48K00-QT8

$309.33

2-1

.EMBLEM, SIDE COWLING UPR | ER/GRAY/BLUE) BODY COLOR:YSF

68131-48K10-CC4

$32.05

2-2

.EMBLEM,SIDE COWLING UPR (BLA | K/SILVER/BLACK) BODY COLOR:YVB

68131-48K10-CC5

$33.92

2-3

.EMBLEM,SIDE COWLING UPR (SIL | ER/GRAY/BLUE) BODY COLOR:QT8

68131-48K10-CC6

$33.92

3-1

COWLING, SIDE UPR LH (BLUE) | BODY COLOR:YSF

94480-48K00-YSF

$309.33

3-2

COWLING,SIDE UPR,L (BLACK) | BODY COLOR:YVB

94480-48K00-YVB

$309.33

3-3

COWLING,SIDE UPR,L (BLUE) | BODY COLOR:QT8

94480-48K00-QT8

$309.33

4-1

.EMBLEM, SIDE COWLING UPR | ER/GRAY/BLUE) BODY COLOR:YSF

68131-48K10-CC4

$32.05

4-2

.EMBLEM,SIDE COWLING UPR (BLA | K/SILVER/BLACK) BODY COLOR:YVB

68131-48K10-CC5

$33.92

4-3

.EMBLEM,SIDE COWLING UPR (SIL | ER/GRAY/BLUE) BODY COLOR:QT8

68131-48K10-CC6

$33.92

5

SCREW (6X20)

09139-06206

$3.32

6

CUSHION,UNDER COWLING,L

94479-15H00

$4.48

7

BRACKET, UNDER COWL RH

94530-48K00

$29.25

8

BOLT

01550-0612A

$1.97

9

COVER, UNDER RH

94472-07L00

$28.45

10

SCREW (6X13)

09139-06220

$3.78

11

CLIP

94479-35F00

$5.62

12

BRACKET, UNDER COWL FR LH

94520-48K00

$10.58

13

BRACKET, UNDER COWL RR LH

94540-07L00

$19.07
