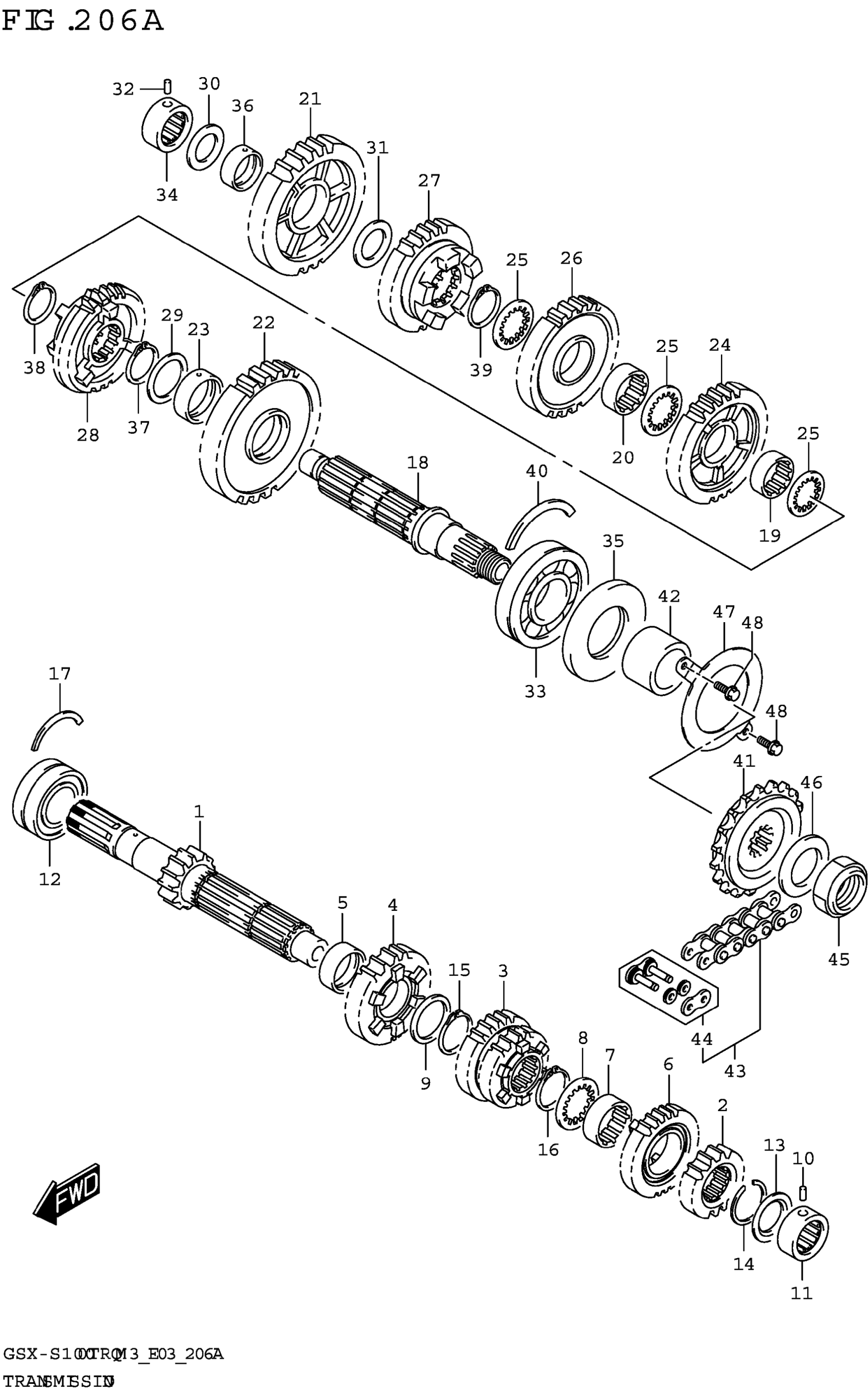

Suzuki GSX-S1000TRQM3 (2023) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, CNTR (NT:16)

24120-40F40

Unavailable

2

GEAR,2ND DRIVE (NT:19)

24221-40F30

$132.63

3

GEAR, 3RD & 4TH DRIVE | )

24231-40F50

$126.92

4

GEAR, 5TH DRIVE (NT:25)

24251-40F50

Unavailable

5

BUSH,5TH DRIVE GEAR

24252-35F00

$27.88

6

GEAR, 6TH DRIVE (NT:26)

24261-40F40

Unavailable

7

BUSH,6TH DRIVE GEAR

24262-35F10

$32.40

8

LOCK WASHER (27X36X2.5)

09167-27003

$7.38

9

SHIM (27X36X2.5)

09181-27014

$6.87

10

PIN (6X10)

09261-06003

$1.49

11

BEARING (20X34X13.5)

09263-20087

$54.53

12

BEARING (25X52X20.6)

09267-25013

$115.55

13

SEAL,OIL (20X31.2X2.7)

09285-20006

$5.88

14

CIRCLIP

09380-27004

$3.33

15

CIRCLIP

09380-27006

$2.73

16

CIRCLIP

09380-27006

$2.73

17

C-RING

09390-58001

$3.72

18

SHAFT, DRIVE

24131-40F20

$209.03

19

BUSH,3RD DRIVEN GEAR

24332-46H00

$43.95

20

BUSH,3RD DRIVEN GEAR

24332-46H00

$43.95

21

GEAR, 1ST DRIVEN (NT:41)

24311-40F30

$156.63

22

GEAR, 2ND DRIVEN (NT:39)

24321-40F50

$135.83

23

BUSH,2ND DRIVEN GEAR

24322-02F01

$24.28

24

GEAR,3RD DRIVEN (NT:36)

24331-40F30

$188.52

25

WASHER,3RD & 4TH DRIVEN

24333-02F00

$6.62

26

GEAR,4TH DRIVEN (NT:36)

24341-40F20

$196.77

27

GEAR, 5TH DRIVEN (NT:34)

24351-40F40

$156.63

28

GEAR, 6TH DRIVEN (NT:33)

24361-40F30

$160.21

29

WASHER (27X36X1.0)

09160-27008

$4.00

30

SHIM (20X34X1)

09181-20251

$2.77

31

SHIM (22X34X1)

09181-22223

$2.85

32

PIN (6X10)

09261-06003

$1.49

33

BEARING (28X70X18)

09262-28025

$163.68

34

BEARING (20X34X13.5)

09263-20087

$54.53

35

OIL SEAL (34.8X70X6)

09283-36008

$19.21

36

BEARING (22X26X11)

09263-22068

$6.78

37

CIRCLIP

09380-27006

$2.73

38

CIRCLIP

09380-27006

$2.73

39

CIRCLIP

09380-27006

$2.73

40

C-RING (67.6X75X2)

09390-70001

$10.62

41

SPROCKET,ENGINE (NT:17)

27511-20A21

$53.97

42

SPACER, ENGINE SPROCKET

27531-04K00

$29.88

43

CHAIN ASSY, DRIVE (RK525GSH)

27600-33E50-116

$330.76

44

.JOINT SET, DRIVE CHAIN (RK)

27620-33E50

$14.36

45

NUT

09159-20004

$14.15

46

WASHER (25X38X2.5)

09160-25066

$6.71

47

RETAINER, DRIVE SHAFT OIL SEA

24751-04K00

$8.83

48

BOLT (6X12)

09103-06236

$2.71
