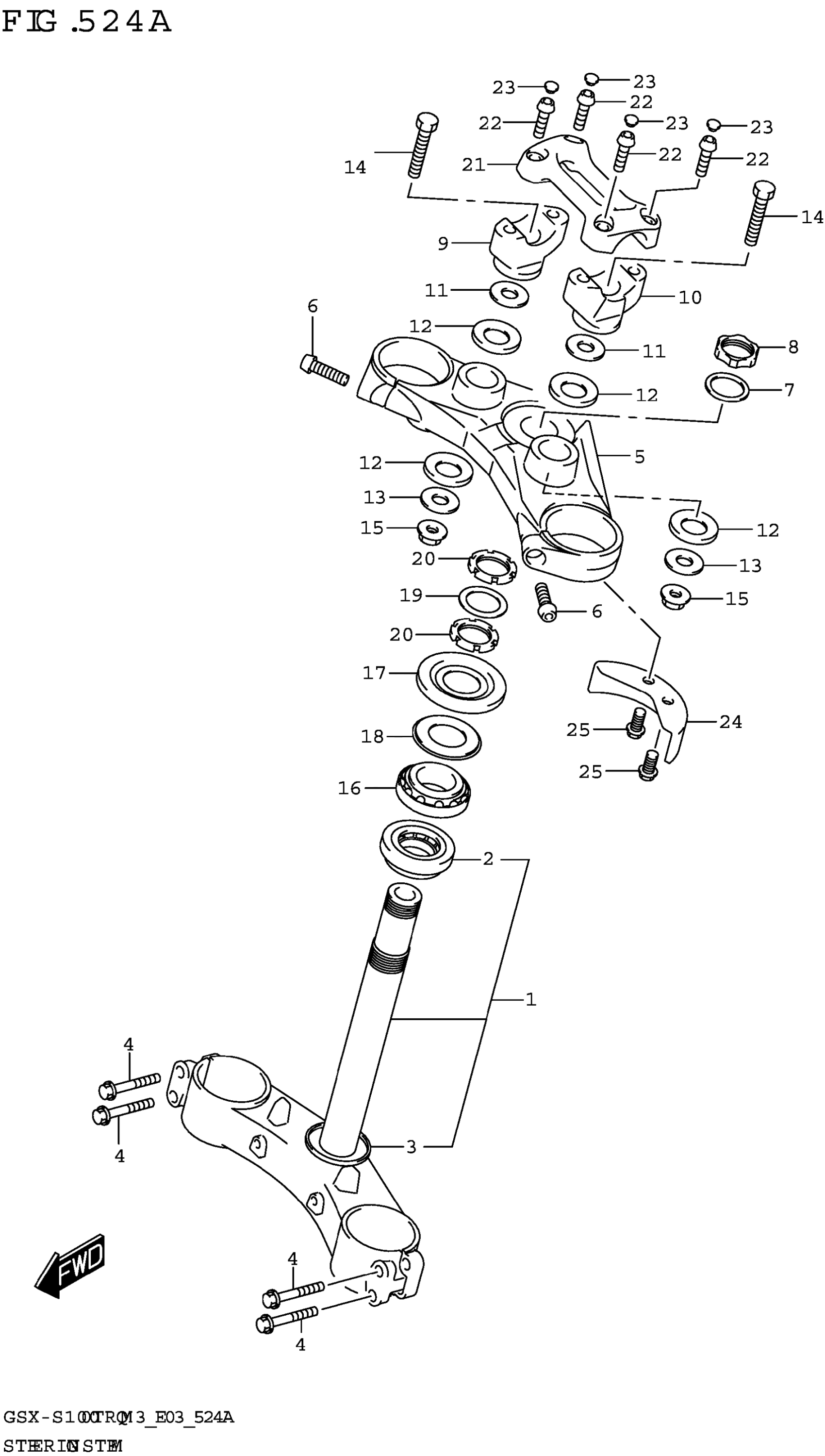

Suzuki GSX-S1000TRQM3 (2023) STEERING STEM Diagram

#

Description
Price

1

BRACKET, UNDER

51410-04K50

$423.93

2

.BEARING (30X55X17)

09267-30010

$43.41

3

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$8.65

4

BOLT,AXLE STOPPER

51166-10G10

$6.08

5

BRACKET, UPPER (SILVER)

51310-48K00-QSC

$445.98

6

BOLT, BRACKET UPR

51328-46H00

$3.45

7

WASHER

51356-40F30

$5.44

8

NUT

51353-40F30

$51.20

9

HOLDER, HANDLE LOWER RH

51335-48K00-QSC

$109.35

10

HOLDER, HANDLE LOWER LH

51336-48K00-QSC

$109.35

11

WASHER

51354-17H00

$4.90

12

RUBBER,HANDLE HOLDER

56245-31J00

$3.23

13

WASHER (10.5X28X2.3)

09160-10035

$1.80

14

BOLT

51321-17H10

$5.85

15

NUT

08319-3110A

$2.73

16

.BEARING (30X55X17)

09267-30010

$43.41

17

COVER,STEERING UPR

51643-41G00

$8.20

18

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$8.65

19

WASHER,STEERING STEM

51641-33E00

$5.67

20

NUT,STEERING STEM

51631-33E00

$21.64

21

HOLDER, HANDLE (SILVER)

56211-04K00-QSC

$134.67

22

BOLT, BRACKET UPR

51328-46H00

$3.45

23

CAP (OD:10.5)

09250-06015

$2.75

24

PLATE, STEERING LOCK

51911-04K00

$10.19

25

BOLT (8X16)

09103-08351

$3.52
