Description

Price

1-1

WHEEL, FRONT (17M/CXMT3.50) | ) BODY COLOR:YSF

54111-04K30-QUV

$827.93

1-2

WHEEL,FRONT (17M/CXMT3.50,BLA | K) BODY COLOR:YVB,QT8

54111-04K30-019

$827.93

2

SPACER,FR HUB BEARING

54731-14J00

$19.75

3

BEARING

09262-22049

$39.53

4

SEAL,OIL

09283-28028

$8.24

5

AXLE,FR

54711-14J00

$160.82

6

NUT,RR SHOCK ABS BRACKET

62994-47H00

$39.56

7

SPACER,FR AXLE,L

54751-14J00

$16.79

8

DISC, FRONT BRAKE

59210-04K00

$367.77

9

BOLT (6X21)

09106-06124

$3.08

10

RING,SPEED SENSOR FR (50T)

54162-44H00

$26.80

11

BOLT

07130-0512A

$2.19

12

TIRE, FRONT (120/70ZR17M/C This part replaces 55110-48K10.

55110-48K11

$292.67

13

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

14-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

14-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

14-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93

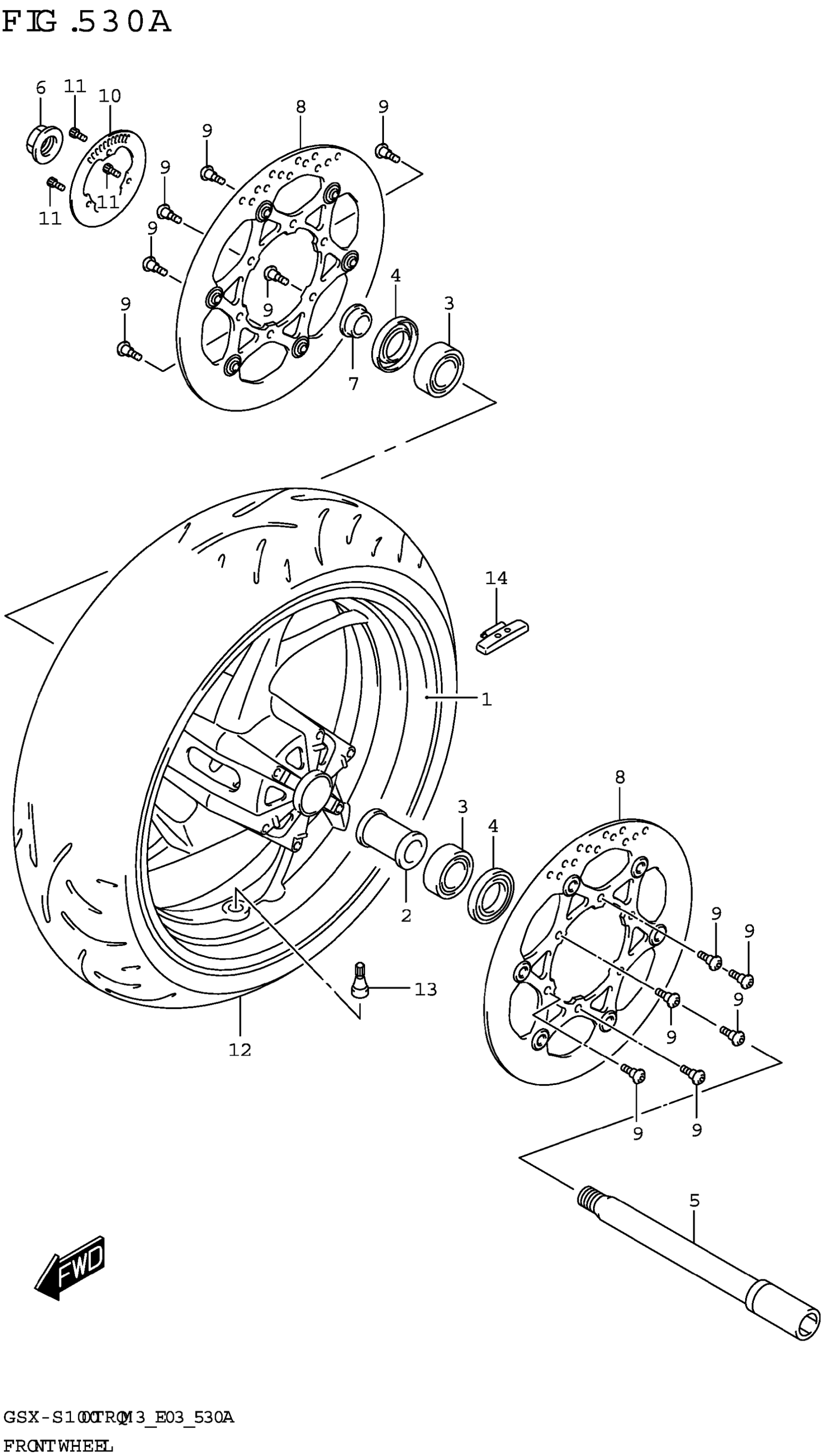

Suzuki GSX-S1000TRQM3 (2023) FRONT WHEEL Diagram
