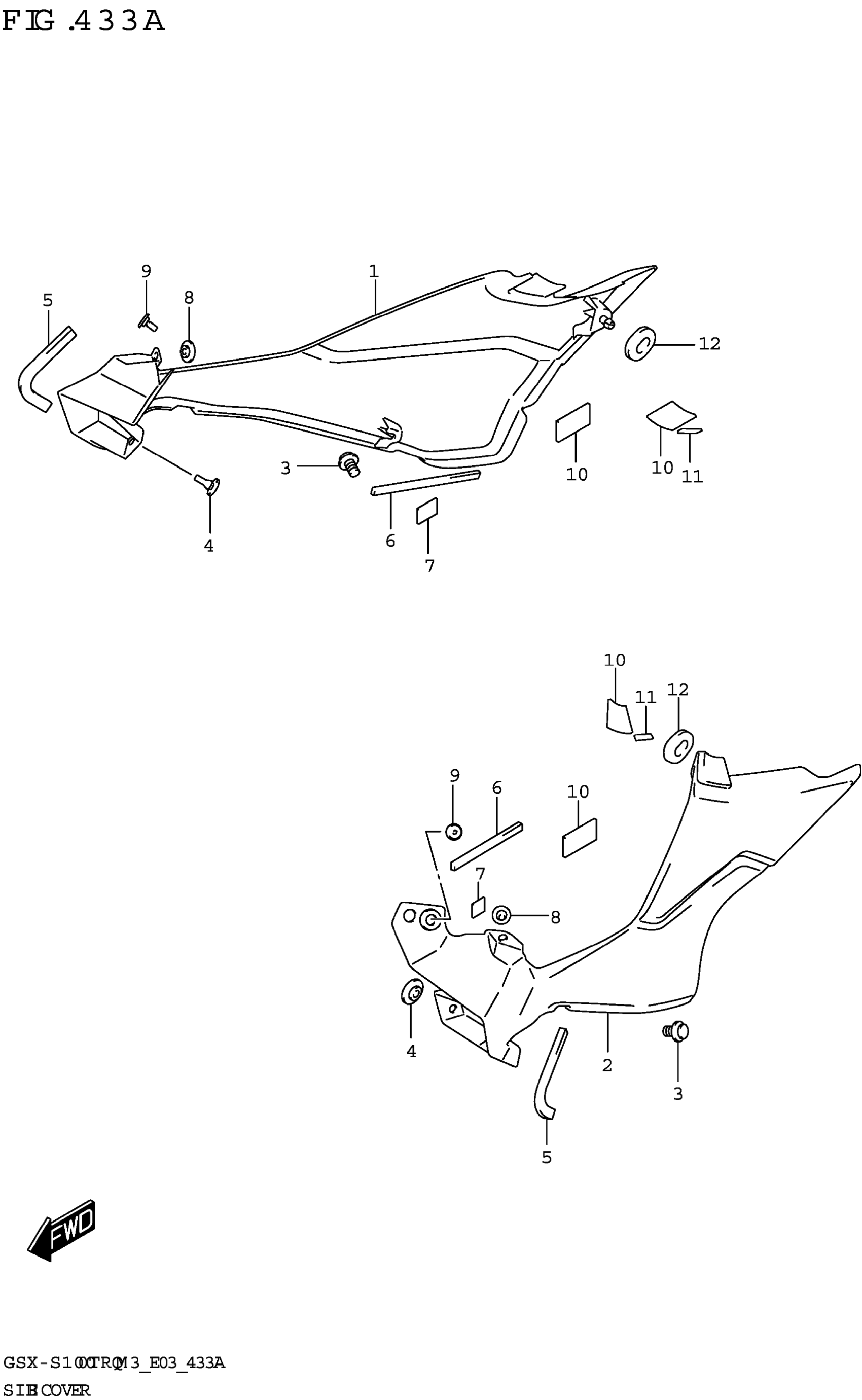

Suzuki GSX-S1000TRQM3 (2023) SIDE COVER Diagram

#

Description
Price

1

COVER, FRAME FRONT RH

47111-48K10

$52.28

2

COVER, FRAME FRONT LH

47211-48K10

$52.28

3

CLIP

09409-10314

$1.97

4

CUSHION

09321-06026

$2.92

5

CUSHION (10X10X120)

63312-29F00

$6.88

6

CUSHION (5X120X6)

44176-31J00

$2.75

7

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.83

8

CUSHION,SEAT MOUNT

45148-27J00

$17.72

9

SCREW (5X13)

09139-05091

$2.03

10

FASTENER (33X25X2.6)

44572-13G00

$11.07

11

CUSHION,SPOILER (6X25X2)

47161-40D10

$1.49

12

CUSHION

09320-08029

$2.41
