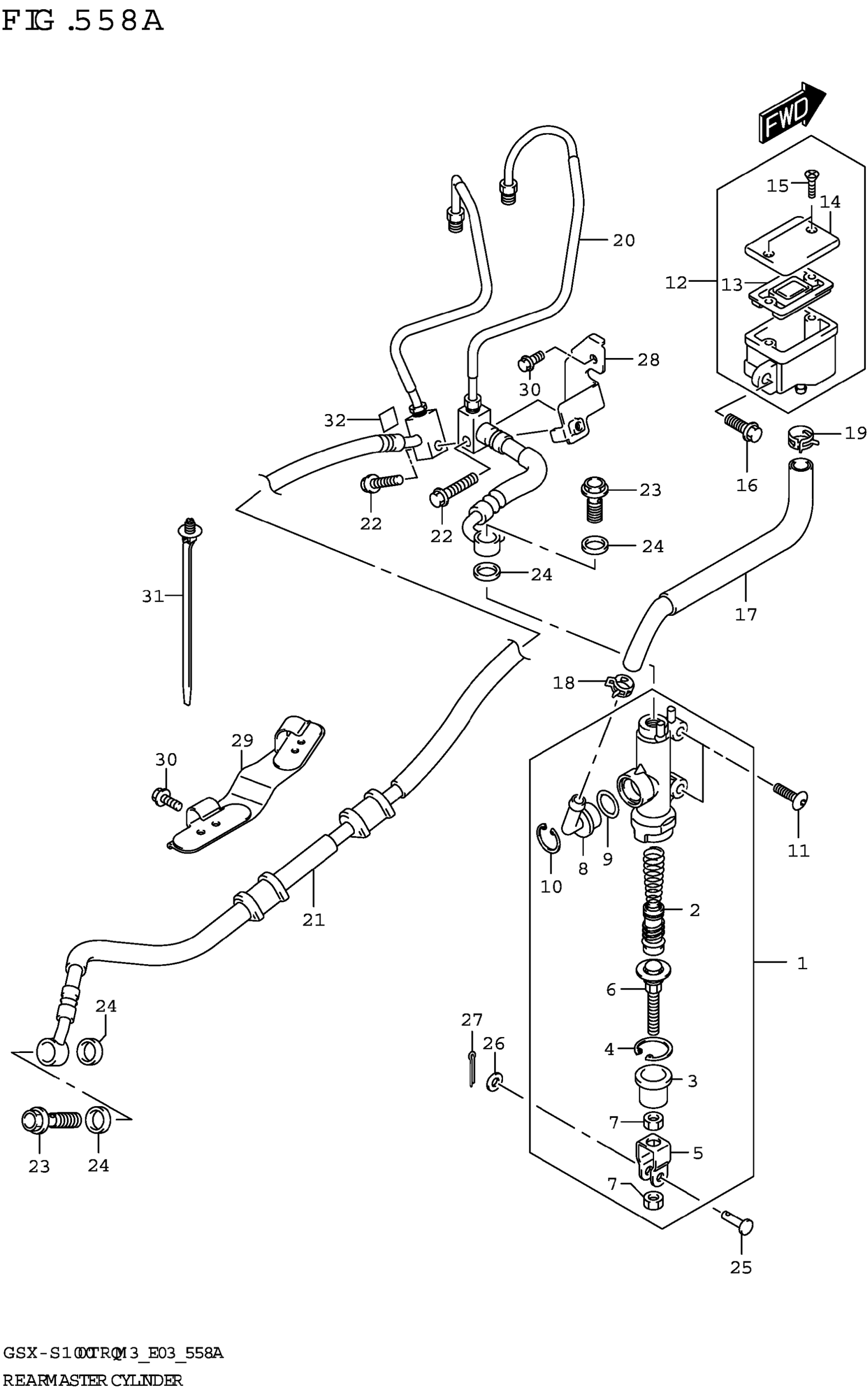

Suzuki GSX-S1000TRQM3 (2023) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-47H31

$222.47

2

.PISTON/CUP SET

69600-34810

$56.48

3

.BOOT

69691-04A00

$5.17

4

.CIRCLIP

69665-47H00

$5.02

5

.YOKE

69692-47H00

$11.87

6

.ROD,PUSH

69670-17K00

$17.32

7

.NUT

69693-47H00

$2.48

8

.CONNECTOR

69672-00B20

$7.01

9

.O-RING

69686-34200

$2.93

10

.CIRCLIP

69674-00B20

$3.97

11

BOLT

09139-06224

$3.70

12

TANK ASSY,REAR RESERVOIR

69740-44G00

$57.93

13

.DIAPHRAGM

59667-04700

$9.78

14

.CAP

59669-05D00

$16.76

15

.SCREW

69689-04A00

$1.78

16

BOLT (6X12)

09103-06525

$1.49

17

HOSE, RR RESERVOIR TANK

69730-48K00

$12.62

18

CLIP (ID:12)

09401-12404

$2.34

19

CLIP (ID:14.8)

09401-15407

$2.83

20

HOSE ASSY, RR BK MASTER TO

69200-48K00

$66.93

21

HOSE ASSY, UNIT TO RR BK CLPR

69400-04K21

$115.22

22

BOLT

01547-0625A

$2.01

23

UNION (10X1.25X22)

09360-10053

$8.92

24

WASHER (10X15X1.5)

09161-10009

$1.84

25

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

26

WASHER

08322-0106A

$1.84

27

PIN

04111-2015A

$1.49

28

CLAMP, RR BRAKE HOSE

69260-04K00

$9.58

29

GUIDE, RR BRAKE HOSE

69270-04K00

$19.45

30

BOLT

01547-0612A

$2.03

31

CLAMP (L:170)

09407-17403

$4.91

32

PROTECTOR, BRAKE HOSE

69411-04K00

$2.40
