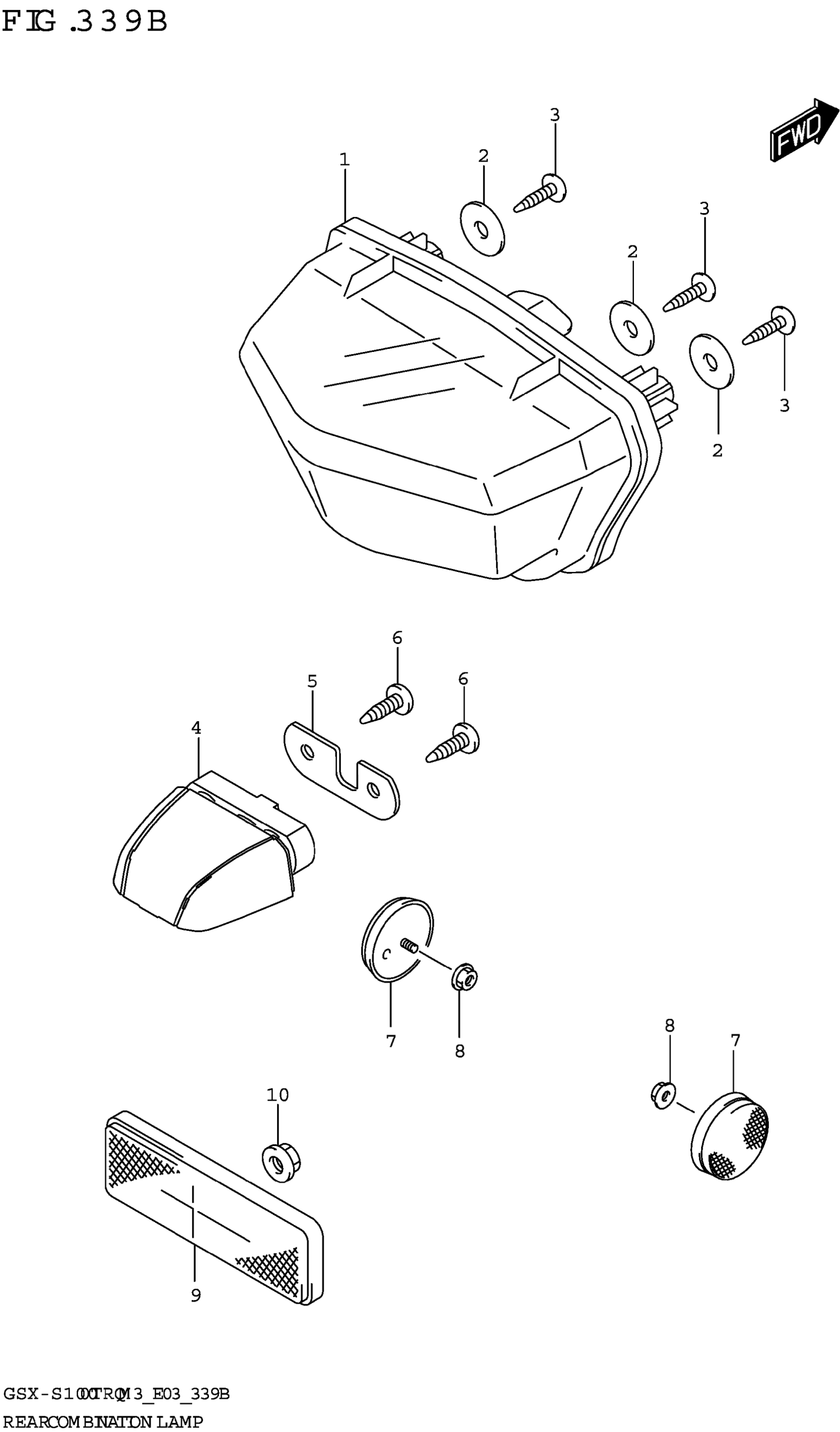

Suzuki GSX-S1000TRQM3 (2023) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, RR COMB

35710-31J01

$229.77

2

WASHER (5.5X20X1.2)

09160-05501

$1.86

3

SCREW

03541-0516A

$1.37

4

LAMP ASSY, LICENSE

35910-48K00

$88.97

5

PLATE,LICENSE LAMP

35926-48K00

$12.95

6

SCREW

03541-0516A

$1.37

7

REFLECTOR ASSY,REAR SIDE

35970-13K00

$18.38

8

NUT

08319-3105A

$2.47

9

REFLECTOR ASSY,RR

35970-07F01

$19.11

10

NUT

08319-3105A

$2.47
