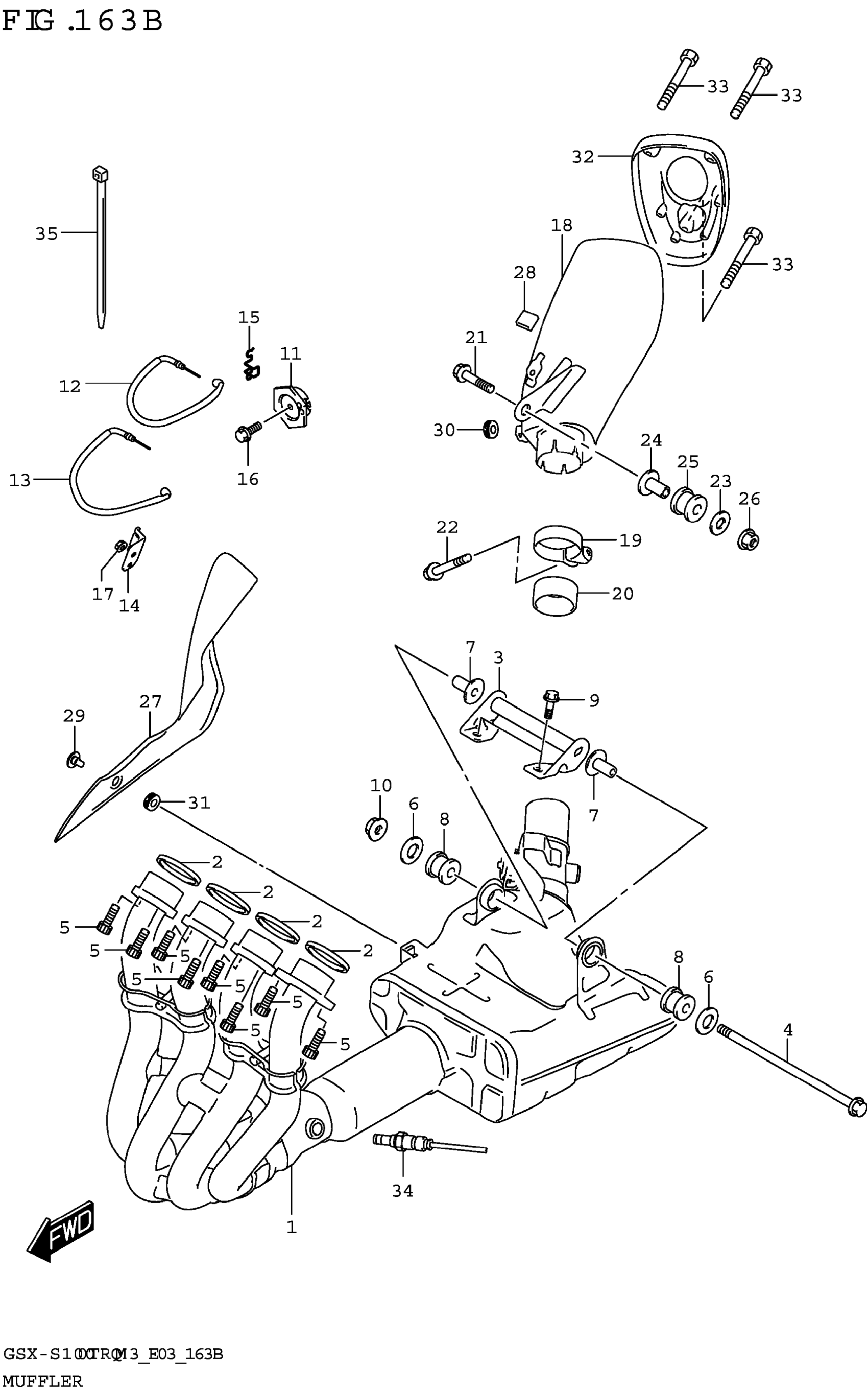

Suzuki GSX-S1000TRQM3 (2023) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-48K30

$2,767.47

2

.GASKET,EXHAUST PIPE

14181-04K00

$8.29

3

BRACKET, EXH SPRT

14770-04K00

$26.13

4

BOLT (8X200)

09103-08464

$11.18

5

BOLT (8X25)

09106-08178

$3.24

6

WASHER (8.5X30X2.3)

09160-08503

$2.50

7

SPACER (8.6X12X24.2)

09180-08152

$5.83

8

CUSHION (12X30X24)

09320-12077

$11.78

9

BOLT (8X20)

09135-08007

$2.93

10

NUT

08316-1008A

$2.45

11

PULLEY,CONTROLLER

11269-18G01

$28.78

12

CABLE, EXH VALVE NO.1

11276-48K00

$46.83

13

CABLE, EXH VALVE NO.2

11277-48K00

$47.83

14

BRACKET,EXHAUST VALVE CABLE

14250-21H00

$9.90

15

GUIDE,EXHAUST VALVE CABLE

14252-14J00

$7.37

16

BOLT

01547-0516A

$1.55

17

NUT (6X12)

08316-1006A

$2.19

18

BODY, MUFFLER

14310-48K00-H01

$486.92

19

CLAMP,MUFFLER CONNECTOR

14459-47H00

$24.37

20

CONNECTOR,MUFFLER

14771-24F01

$31.05

21

BOLT (8X45)

09106-08164

$6.38

22

BOLT (8X40)

09106-08162

$4.77

23

WASHER (8.5X30X2.3)

09160-08503

$2.50

24

SPACER (8.6X12X24.2)

09180-08152

$5.83

25

CUSHION (12X30X24)

09320-12048

$5.11

26

NUT

08316-1008A

$2.45

27

COVER, MUF FR

14780-48K00

$254.13

28

GROMMET

14795-10FA0

$5.58

29

SCREW (6X12)

09139-06124

$4.52

30

CUSHION

09320-04011

$6.20

31

CUSHION (8.4X18X6)

09320-08066

$8.24

32

COVER, MUF RR

14791-04K12

$85.97

33

BOLT

09116-06528

$4.85

34

SENSOR,OXYGEN

18213-04KT0

$205.30

35

CLAMP (L:145)

09407-14407

$3.57
