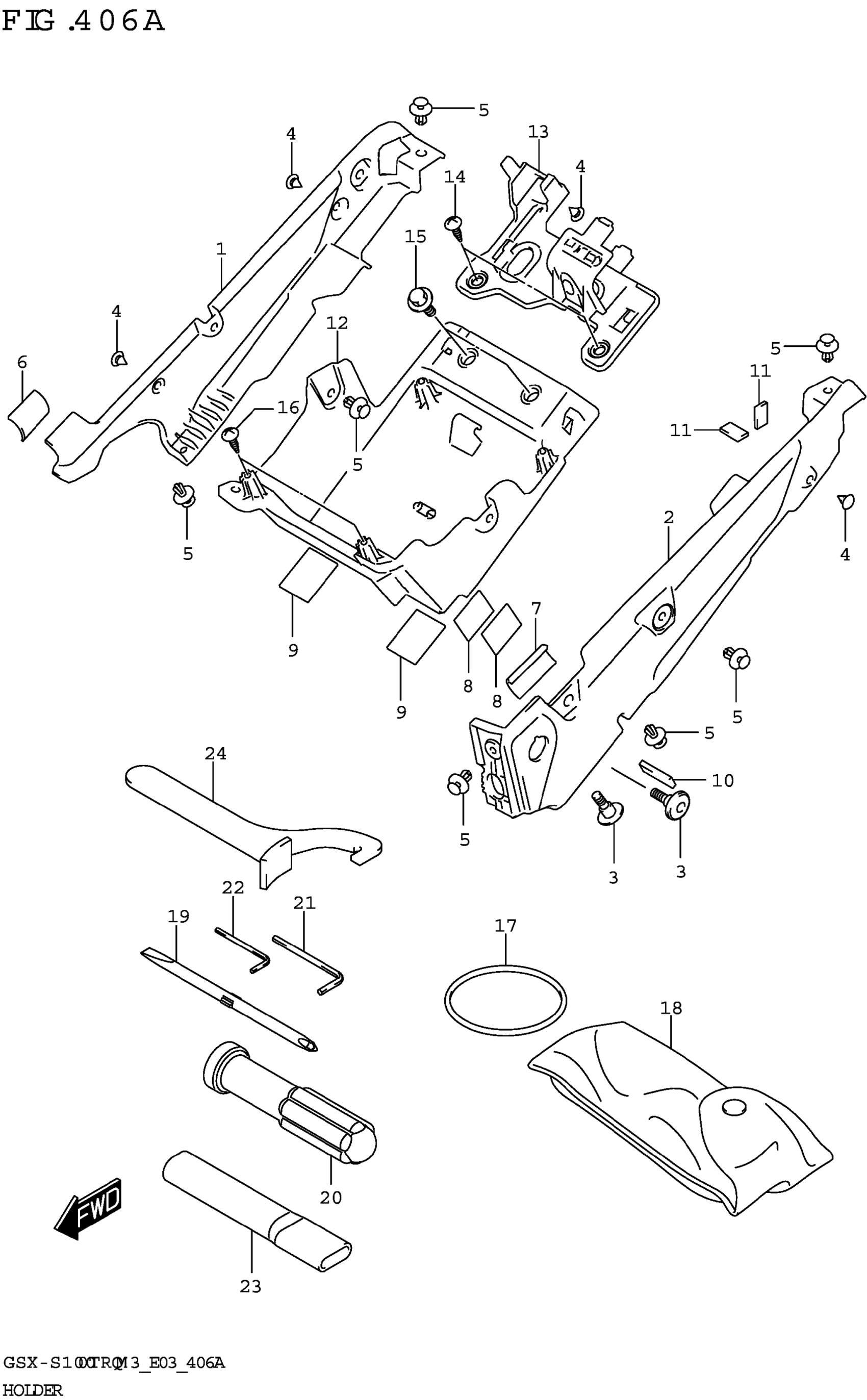

Suzuki GSX-S1000TRQM3 (2023) HOLDER Diagram

#

Description
Price

1

COVER, BATTERY HOLDER RH

47412-48K00

$39.32

2

COVER, BATTERY HOLDER LH

47413-48K00

$39.32

3

SCREW (6X16)

09139-06221

$2.92

4

PLUG (OD:10)

09250-06017

$2.71

5

CLIP

09409-06328

$3.23

6

CUSHION This part replaces 44281-29C00.

63191-25C00

$3.05

7

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

8

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$3.03

9

PROTECTOR,BATTERY (30X40X1.0)

33652-13G00

$3.58

10

CUSHION, BATTERY HOLDER COVER

47437-48K00

$2.10

11

CUSHION, BATTERY (30X130X3) This part replaces 33972-31D00.

33652-19B00

$6.03

12

HOLDER, BATTERY

47411-48K00

$44.68

13

HOLDER, ELECTRIC PARTS

47414-48K00

$21.38

14

SCREW

03541-0516A

$1.49

15

BOLT (6X17.8)

09111-06072

$2.03

16

SCREW

03541-0616B

$2.59

17

O-RING (D:3.5,ID:56.5)

09280-57003

Unavailable

18

BAG,TOOL

09811-00311

Unavailable

19

DRIVER

09814-00015

$3.70

20

GRIP,DRIVER

09814-00016

$4.22

21

SPANNER,HEXAGON (5)

96514-17K00

$4.77

22

SPANNER,HEXAGON (4)

96514-17K10

$3.30

23

HANDLE

09817-00037

$5.52

24

CLAMP,WRENCH

09822-00005

$15.16
