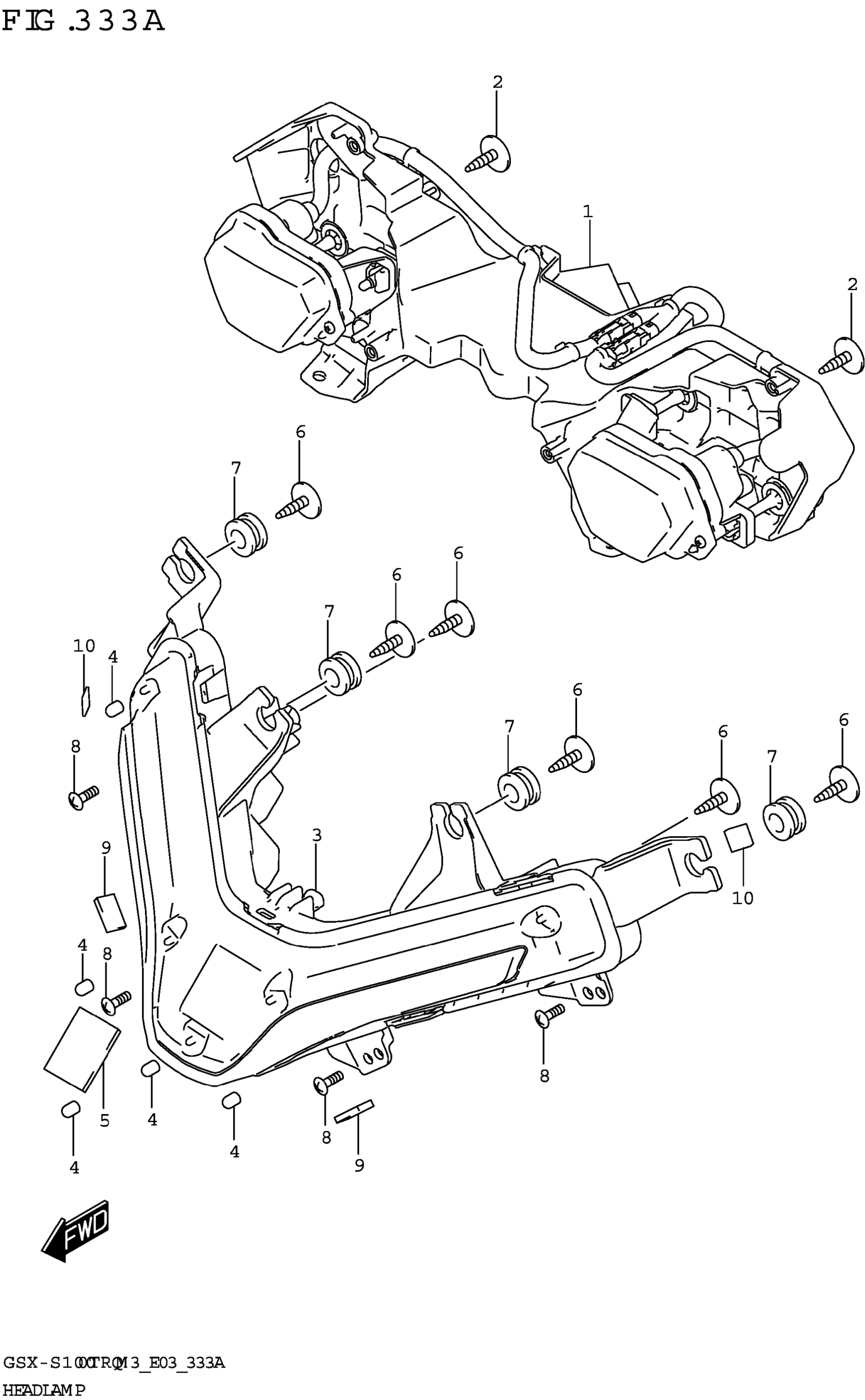

Suzuki GSX-S1000TRQM3 (2023) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY This part replaces 35100-48KA0.

35100-48KA3

$858.43

2

SCREW (5X15)

09136-05062

$2.19

3

LAMP ASSY, FRONT POSITION

36110-48KA0

$165.47

4

CUSHION,FUEL TANK COVER

44294-43H11

$2.30

5

FASTENER (25X33X2.6)

44572-02F01

$11.07

6

SCREW (5X15)

09136-05062

$2.19

7

CUSHION (9X18X9.5)

09320-09016

$1.97

8

SCREW

03541-0412B

$1.49

9

CUSHION, BATTERY (30X130X3) This part replaces 33972-31D00.

33652-19B00

$6.03

10

CUSHION (10X10X1)

63115-37H00

$3.64
