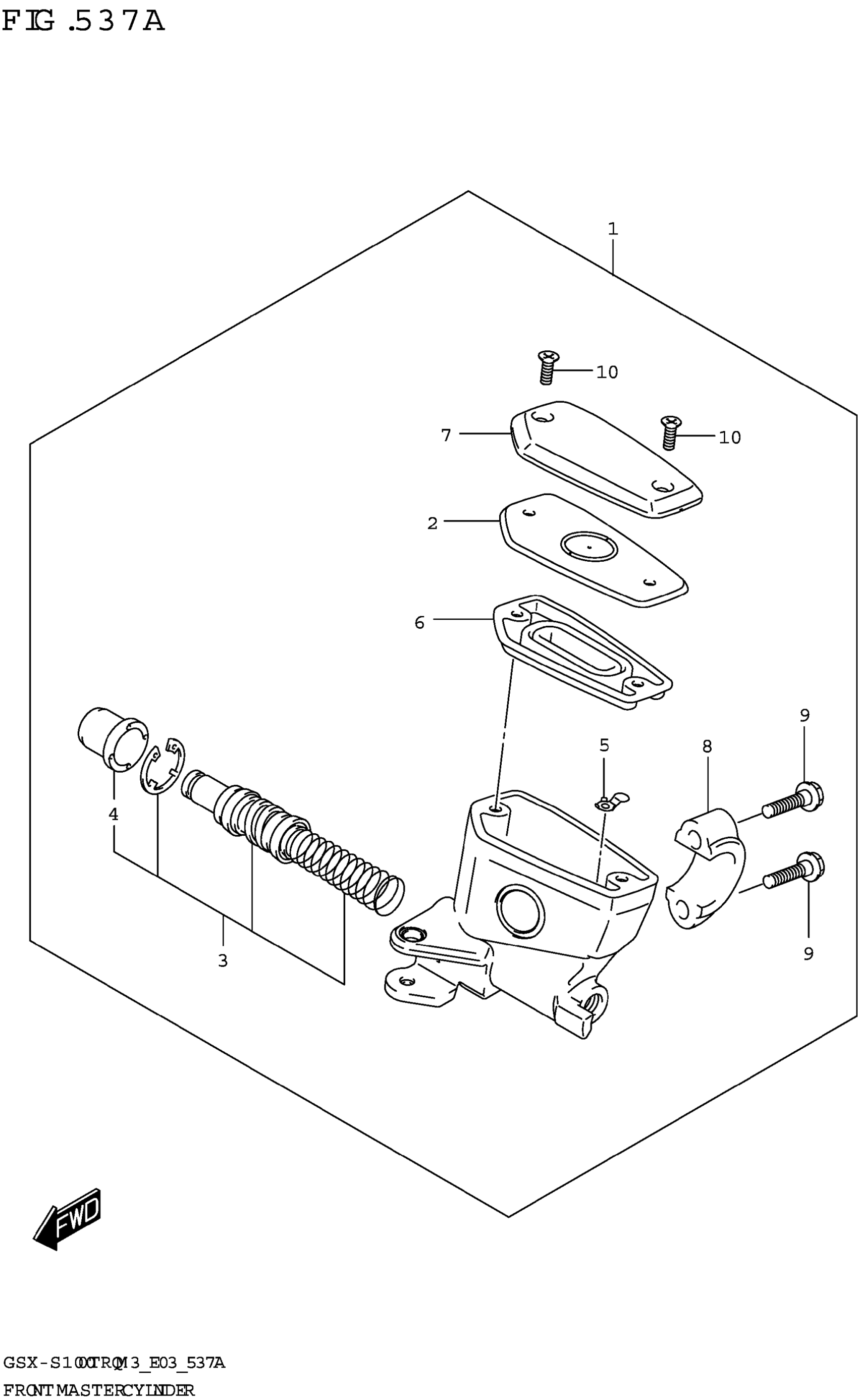

Suzuki GSX-S1000TRQM3 (2023) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-06L30

$341.57

2

.PLATE

57437-23H00

$9.58

3

.PISTON/CUP SET

59601-45810

$54.75

4

..BOOT

59666-44300

$5.80

5

.PROTECTOR

59664-32F00

$11.68

6

.DIAPHRAGM,R This part replaces 59667-23H00.

59667-23H10

$10.82

7

.CAP, RESERVOIR

59669-23H20

$32.70

8

.HOLDER

59671-36500

$12.21

9

.BOLT (6X22)

59675-02FA0

$3.82

10

.SCREW

69689-49300

$1.91
