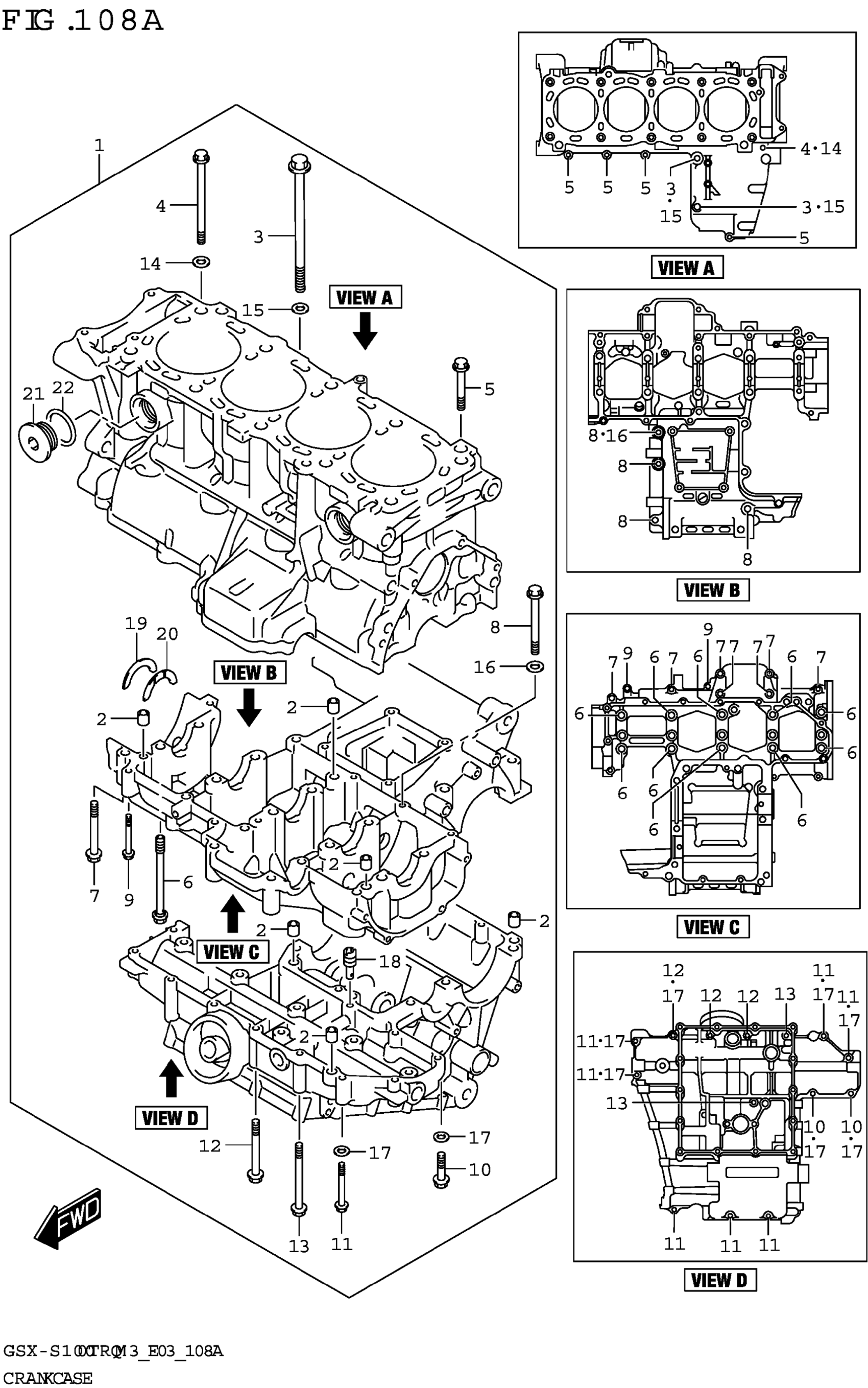

Suzuki GSX-S1000TRQM3 (2023) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-04860

$3,336.47

2

PIN,CRANKCASE

11319-33E50

$5.32

3

.BOLT (8X120)

09106-08198

Unavailable

4

.BOLT

01547-0680A

$3.30

5

BOLT

01547-0640A

$2.32

6

.BOLT (9X95)

09103-09012

$8.76

7

.BOLT (8X55)

09103-08339

$3.49

8

.BOLT

07120-0865A

$4.77

9

BOLT

01547-0640A

$2.32

10

BOLT

01547-0630A

$2.32

11

BOLT

01547-0640A

$2.32

12

BOLT

01547-0660A

$2.82

13

.BOLT

01547-0670A

$2.92

14

GASKET (5.8X13X1.2)

09168-06023

$2.35

15

GASKET (8.2X14X1)

09168-08016

$1.65

16

GASKET (8.2X14X1)

09168-08016

$1.65

17

GASKET (5.8X13X1.2)

09168-06023

$2.35

18

JET (#140)

09493-28012

$16.87

19

.BEARING,CRANK THRUST

12228-48B00-0E0

$9.34

20-1

.BEARING,CRANK THRUST

12228-48B00-0B0

$11.57

20-2

.BEARING,CRANK THRUST

12228-48B00-0C0

$11.35

20-3

.BEARING,CRANK THRUST

12228-48B00-0D0

$11.78

20-4

.BEARING,CRANK THRUST

12228-48B00-0E0

$9.34

20-5

.BEARING,CRANK THRUST

12228-48B00-0F0

$11.78

20-6

.BEARING,CRANK THRUST

12228-48B00-0G0

$11.78

20-7

.BEARING,CRANK THRUST

12228-48B00-0H0

$9.66

21

.PLUG,WATER JACKET

11318-35F00

$16.78

22

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.93
