Partiron

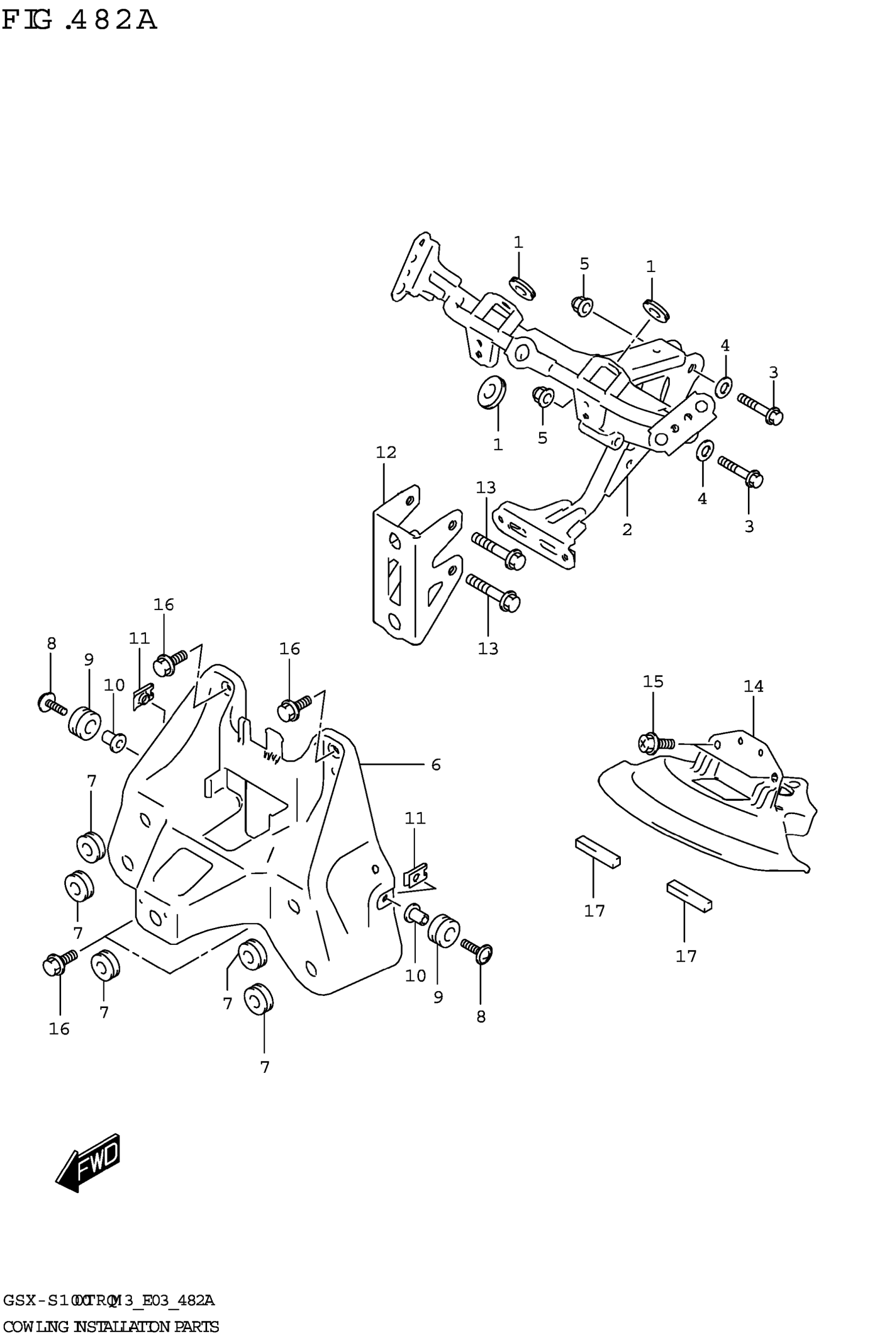

Suzuki GSX-S1000TRQM3 (2023) COWLING INSTALLATION PARTS Diagram

#

Description
Price

1

CUSHION (8x26x7)

09320-08018

$3.04

2

BRACE, COWLING

94510-48K00

$180.27

3

BOLT

01550-0840A

$3.05

4

WASHER (8.5X18X2.0)

09160-08120

$2.19

5

NUT

08313-2008A

$2.50

6

BRACE, HEADLAMP

94571-48K00

$73.72

7

CUSHION (8X26X7)

09320-08028

$3.04

8

SCREW

09136-06126

$3.15

9

.CUSHION,SEAT MOUNT

45148-04K00

$6.47

10

WASHER

09169-06070

$4.77

11

NUT

09148-06020

$4.38

12

BRACKET, RECTIFIER

47410-48K00

$10.53

13

BOLT

01550-0650A

$2.85

14

COVER, LWR BRACKET

94458-48K00

$32.67

15

BOLT (6X12)

09111-06107

$2.60

16

BOLT (6X16)

09111-06089

$2.62

17

CUSHION (12X50X10)

94412-31F00

$2.13
