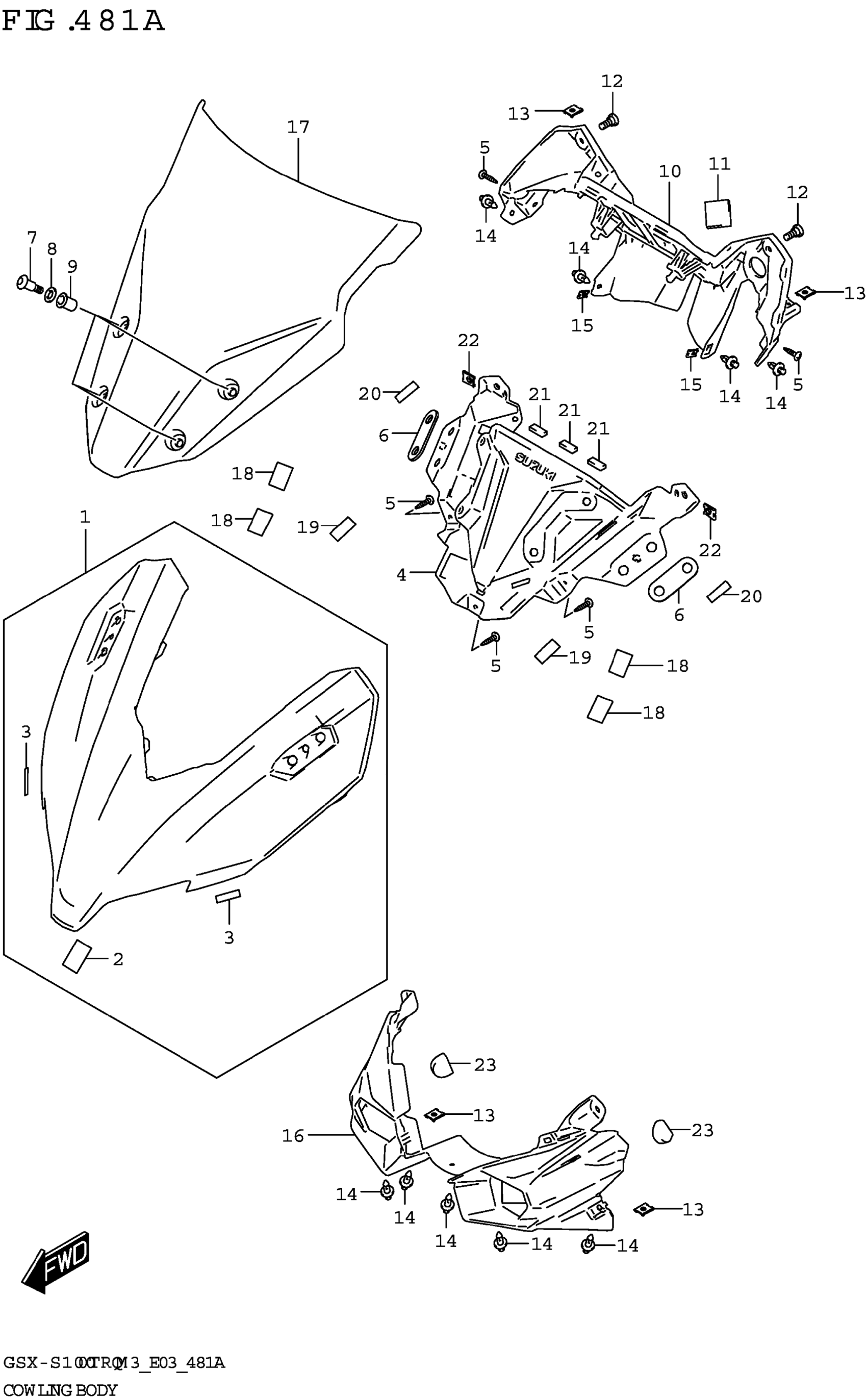

Suzuki GSX-S1000TRQM3 (2023) COWLING BODY Diagram

#

Description
Price

1-1

COWLING, BODY (BLUE) | BODY COLOR:YSF

94410-48K00-YSF

$268.12

1-2

COWLING, BODY (BLACK) | BODY COLOR:YVB

94410-48K00-YVB

$268.12

1-3

COWLING,BODY (BLUE) | BODY COLOR:QT8

94410-48K00-QT8

$268.12

2

FASTENER (25X33X2.6)

44572-02F01

$11.07

3

CUSHION (6X25X1)

94675-07L00

$2.20

4

PANEL, METER FRONT

94641-48K00

$66.43

5

SCREW

03541-0516A

$1.49

6

CUSHION,REAR VIEW MIR

94576-48K00

$6.50

7

SCREW

09139-05032

$1.89

8

WASHER

09160-05048

$2.02

9

NUT (M5)

09159-05019

$7.14

10

PANEL, METER REAR

94640-48K10

$69.13

11

CUSHION (20X30X2)

44556-33H00

$7.66

12

SCREW (5X18)

09139-05094

$4.32

13

NUT (M5)

09148-05052

$3.37

14

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

15

NUT (M5)

09148-05038

$1.97

16

COWLING, BODY LOWER

94431-48K00

$77.00

17

WINDSCREEN

94611-48K00

$219.30

18

CUSHION (20X30X2)

44556-33H00

$7.66

19

CUSHION (10X24X1)

48128-14FA0

$6.47

20

CUSHION

63117-21H00

$3.78

21

CUSHION (6X25X1)

94675-07L00

$2.20

22

NUT (M5)

09148-05052

$3.37

23

CUSHION

09329-18001

$1.91
