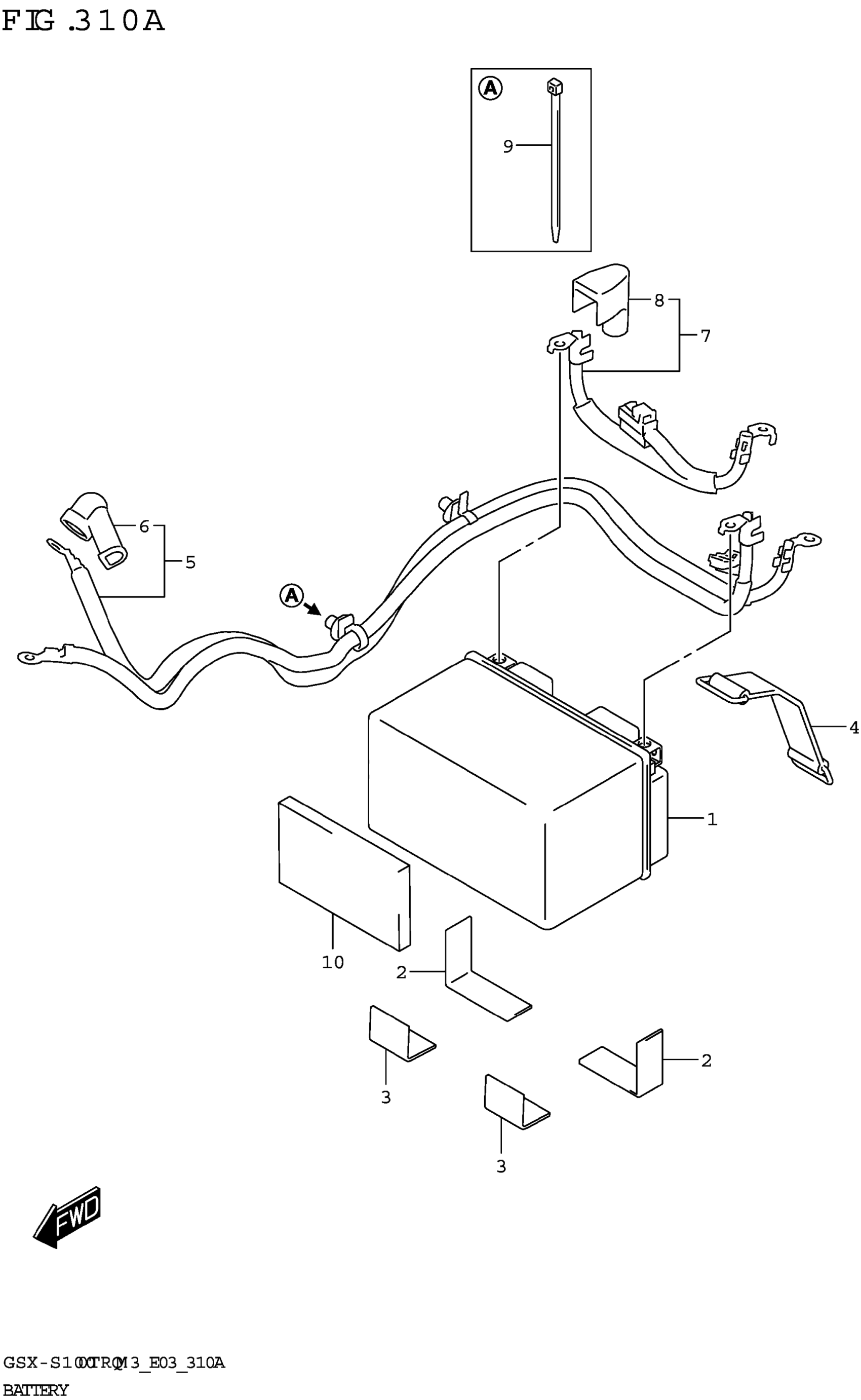

Suzuki GSX-S1000TRQM3 (2023) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FT12A-BS,12V10AH) | H) FURUKAWA This part replaces 33630-14G02.

33610-14G11

$120.22

2

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

3

CUSHION (50X42X2.0)

51553-15D40

$7.18

4

BAND

09462-00046

$3.70

5

WIRE, STARTER MOTOR LEAD

33810-48KA0

$64.57

6

.CAP, STARTER MOTOR TERMINAL

31861-04K00

Unavailable

7

WIRE, BATTERY PLUS LEAD

33820-48KA0

$27.37

8

.CAP,BATTERY PLUS TERMINAL

33624-04K00

$8.12

9

CLAMP (L:145)

09407-14407

$3.57

10

CUSHION, BATTERY

33652-48K10

$7.68
