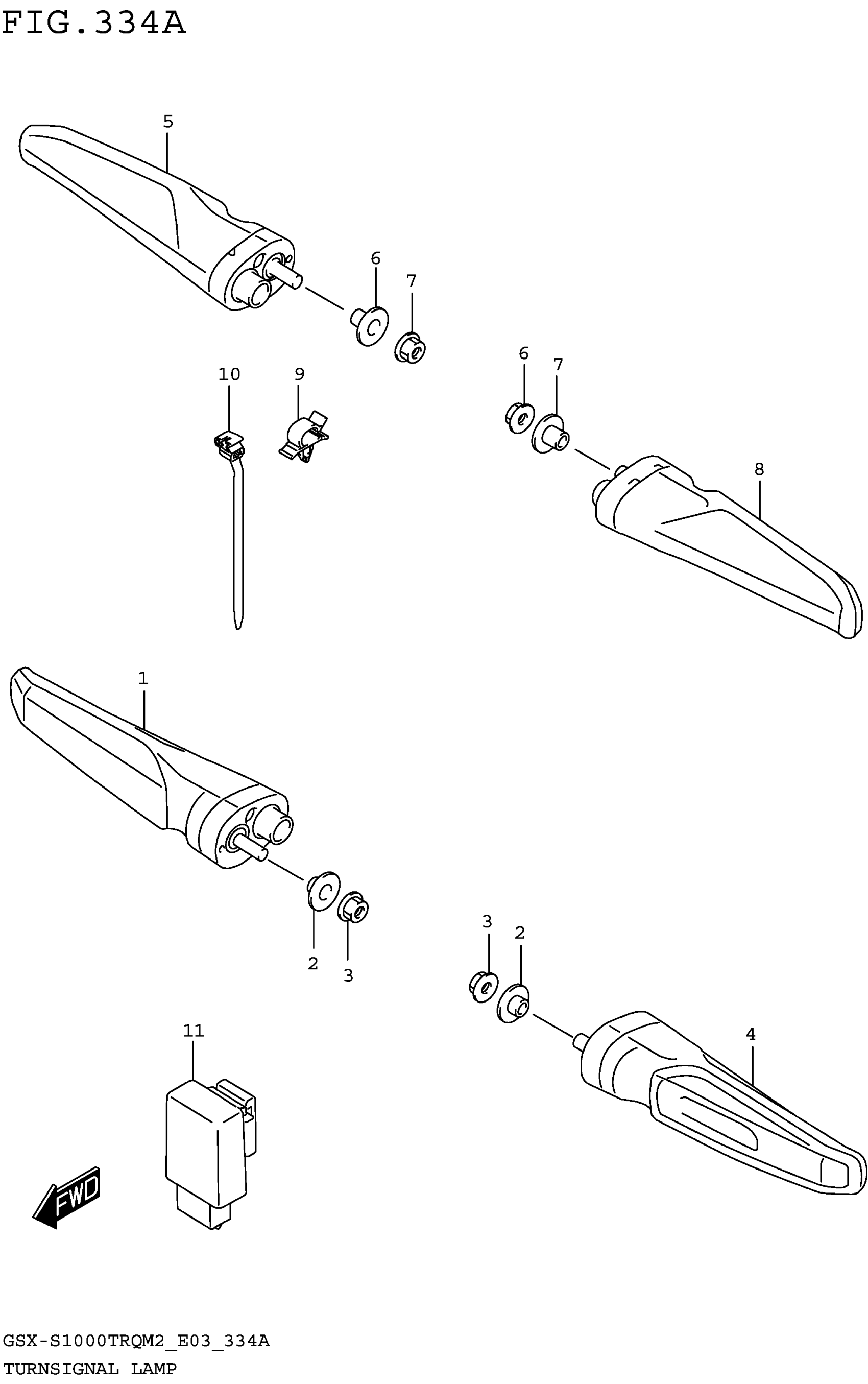

Suzuki GSX-S1000TRQM2 (2022) TURNSIGNAL LAMP Diagram

#

Description

Price

1

LAMP ASSY, FRONT TURNSIGNAL R This part replaces 35601-06L10.

35601-06LG0

$96.85

2

WASHER

09169-06076

$2.97

3

NUT (6X12)

08316-1006A

$2.25

4

LAMP ASSY,FRONT TURNSIGNAL,L This part replaces 35602-06L10.

35602-06LG1

$92.82

5

LAMP ASSY,RRTSI This part replaces 35603-06L10.

35603-06L11

$107.70

6

WASHER

09169-06076

$2.97

7

NUT (6X12)

08316-1006A

$2.25

8

LAMP ASSY,RR TS This part replaces 35604-06L10.

35604-06L11

$107.70

9

CLAMP

09403-10319

Unavailable

10

CLAMP

09407-14414

$2.33

11

RELAY ASSY,TURNSIGNAL This part replaces 38610-06L00.

38610-06L01

$81.55
