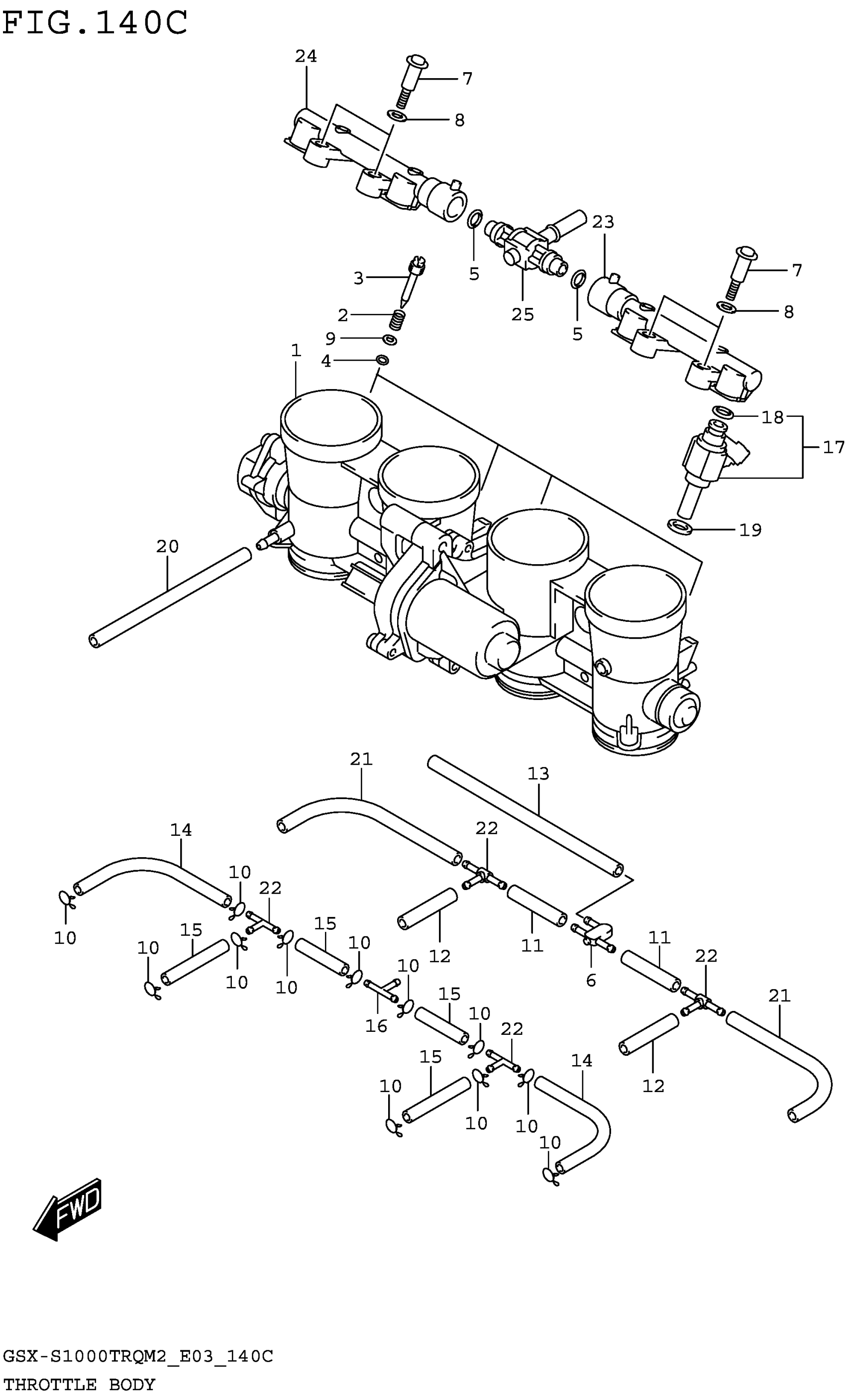

Suzuki GSX-S1000TRQM2 (2022) THROTTLE BODY (GSX-S1000TRQM2 E33) Diagram

#

Description
Price

1

BODY, THROTTLE

13405-48K00

Unavailable

2

SPRING,THROTTLE SCREW

13268-48700

$4.34

3

SCREW

13269-33E00

$11.10

4

O-RING

13295-29901

$4.34

5

O-RING

13374-32G00

$7.22

6

JOINT

13471-18H00

$10.48

7

SCREW

13601-29G00

$3.43

8

PACKING

13602-29G01

$2.43

9

WASHER

13606-47A00

$3.28

10

CLIP This part replaces 13671-12C00.

09401-06101

$2.03

11

HOSE (L:425)

13683-10F61

$17.10

12

HOSE

13683-07F01

$1.82

13

HOSE

13683-07F11

$5.55

14

HOSE (3.5X7.5X80)

13683-10L00

$2.87

15

HOSE

13683-48K00

$37.42

16

NIPPLE

13685-04F10

$11.07

17

INJECTOR ASSY

15710-04K00

$271.53

18

.O-RING

15717-58B00

$9.95

19

SEAL

15722-14J00

$11.36

20

.HOSE (3X7X600) | CUT AS REQUIRED

09355-30001-600

$8.56

21

HOSE (3.2X7.4X70)

13681-39F00-070

$2.98

22

3WAY,VACUUM HOSE

13685-02FA0

$7.05

23

DELIVERY PIPE

13471-10L00

$28.47

24

DELIVERY PIPE

13472-10L00

$28.47

25

NIPPLE ASSY

13473-17K00

$71.35
