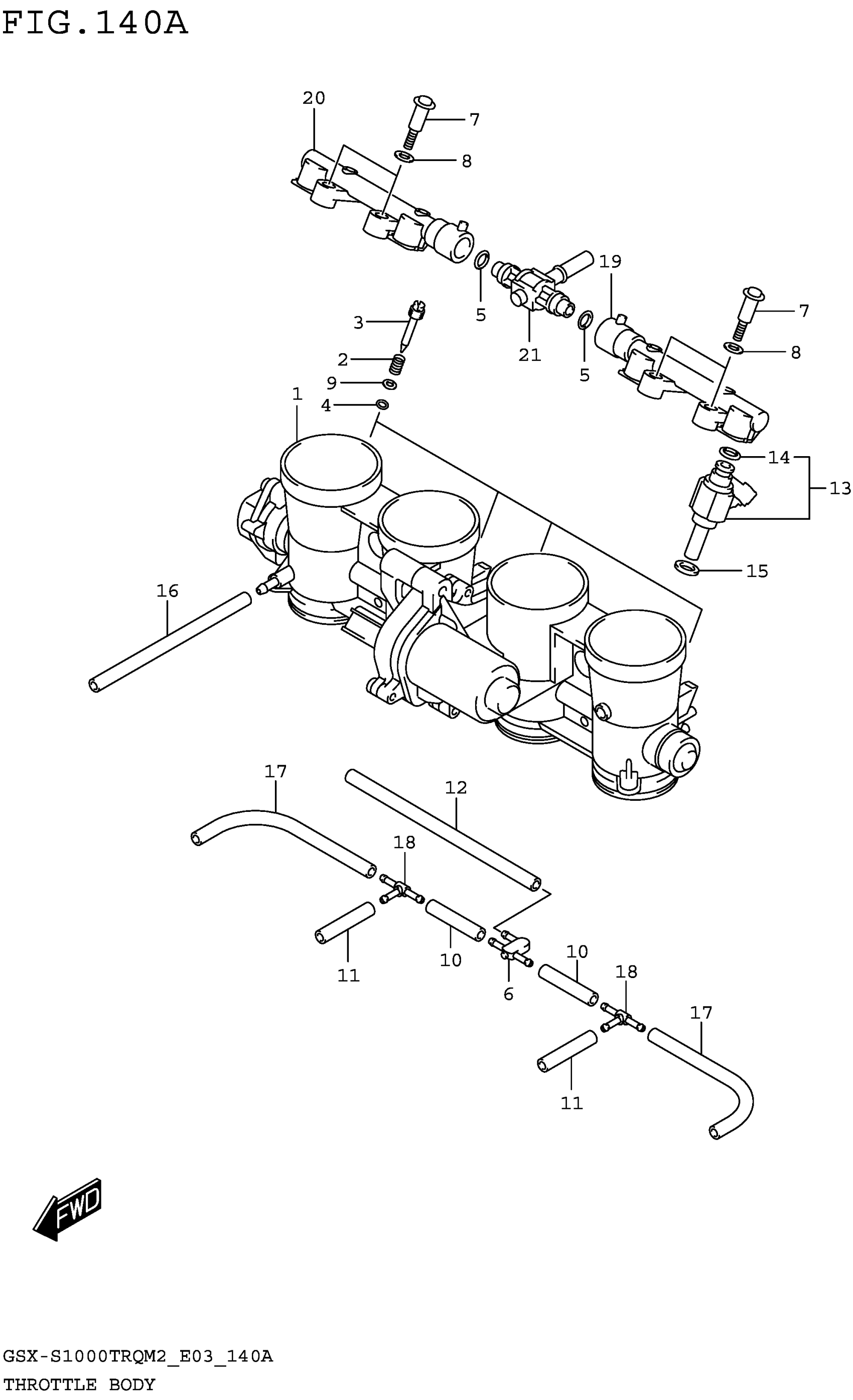

Suzuki GSX-S1000TRQM2 (2022) THROTTLE BODY (GSX-S1000TRQM2 E03) Diagram

Description

Price

BODY, THROTTLE

13405-48K10

$1,185.38

SPRING,THROTTLE SCREW

13268-48700

$4.34

SCREW

13269-33E00

$11.10

O-RING

13295-29901

$4.34

O-RING

13374-32G00

$7.22

JOINT

13471-18H00

$10.48

SCREW

13601-29G00

$3.43

PACKING

13602-29G01

$2.43

WASHER

13606-47A00

$3.28

HOSE (L:425)

13683-10F61

$17.10

HOSE

13683-07F01

$1.82

HOSE

13683-07F11

$5.55

INJECTOR ASSY

15710-04K00

$271.53

.O-RING

15717-58B00

$9.95

SEAL

15722-14J00

$11.36

.HOSE (3X7X600) | CUT AS REQUIRED

09355-30001-600

$8.56

HOSE (3.2X7.4X70)

13681-39F00-070

$2.98

3WAY,VACUUM HOSE This part replaces 13471-02FA0.

13685-02FA0

$7.05

DELIVERY PIPE

13471-10L00

$28.47

DELIVERY PIPE

13472-10L00

$28.47

NIPPLE ASSY

13473-17K00

$71.35
