2022 Suzuki GSX-S1000TRQM2 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2022 Suzuki GSX-S1000TRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

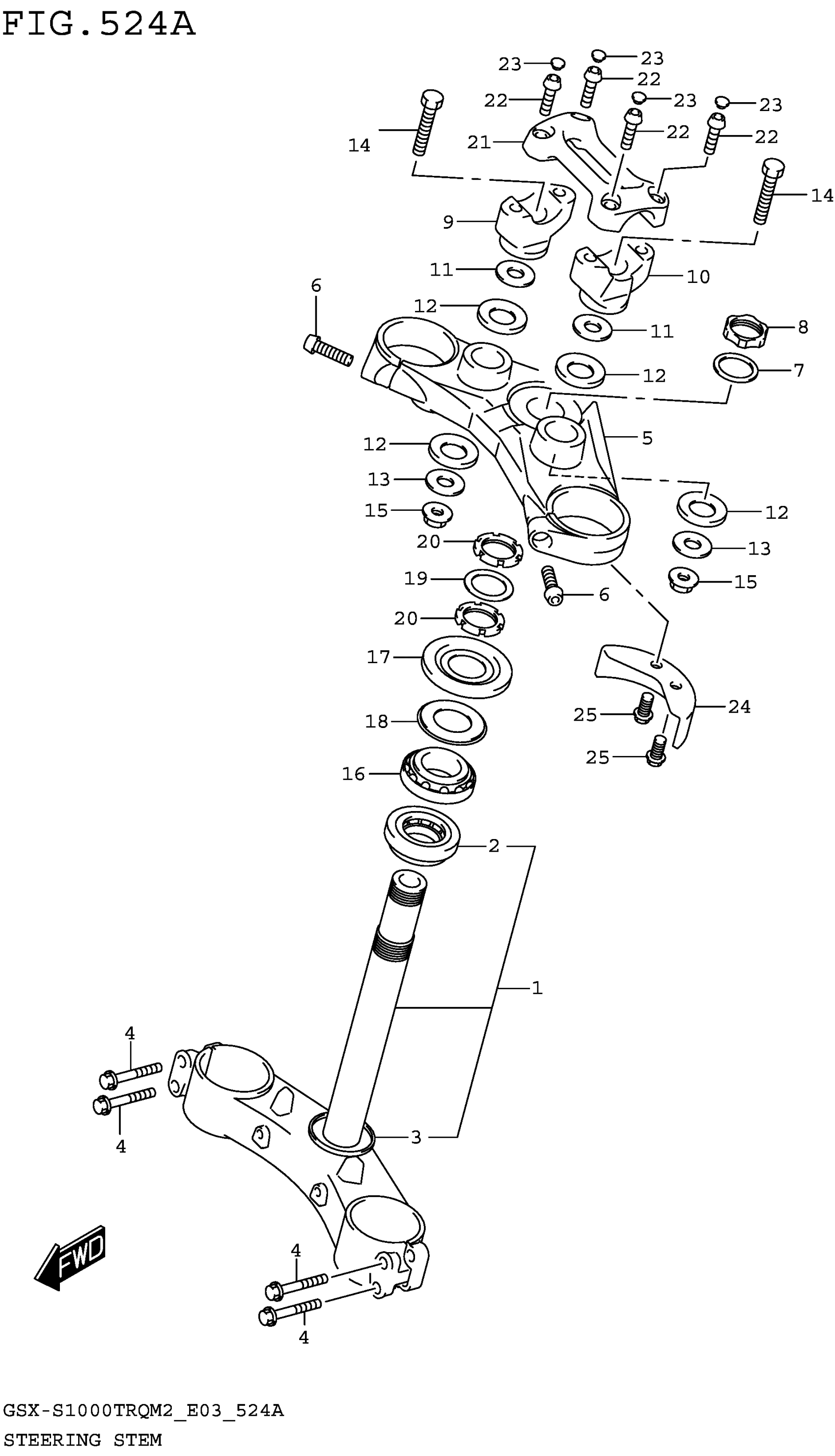

2022 Suzuki GSX-S1000TRQM2 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, UNDER

51410-04K50

1
Out of stock

2

.BEARING (30X55X17)

09267-30010

1
Out of stock

3

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

1
Out of stock

4

BOLT,AXLE STOPPER

51166-10G10

4
Out of stock

5

BRACKET, UPPER (SILVER)

51310-48K00-QSC

1
Out of stock

6

BOLT, BRACKET UPR

51328-46H00

2
Out of stock

7

WASHER

51356-40F30

1
Out of stock

8

NUT

51353-40F30

1
Out of stock

9

HOLDER, HANDLE LOWER RH | (SILVER)

51335-48K00-QSC

1
Out of stock

10

HOLDER, HANDLE LOWER LH | (SILVER)

51336-48K00-QSC

1
Out of stock

11

WASHER

51354-17H00

2
Out of stock

12

RUBBER,HANDLE HOLDER

56245-31J00

4
Out of stock

13

WASHER (10.5X28X2.3)

09160-10035

2
Out of stock

14

BOLT

51321-17H10

2
Out of stock

15

NUT

08319-3110A

2
Out of stock

16

.BEARING (30X55X17)

09267-30010

1
Out of stock

17

COVER,STEERING UPR

51643-41G00

1
Out of stock

18

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

1
Out of stock

19

WASHER,STEERING STEM

51641-33E00

1
Out of stock

20

NUT,STEERING STEM

51631-33E00

2
Out of stock

21

HOLDER, HANDLE (SILVER)

56211-04K00-QSC

1
Out of stock

22

BOLT, BRACKET UPR

51328-46H00

4
Out of stock

23

CAP (OD:10.5)

09250-06015

4
Out of stock

24

PLATE, STEERING LOCK

51911-04K00

1
Out of stock

25

BOLT (8X16)

09103-08351

2
Out of stock
