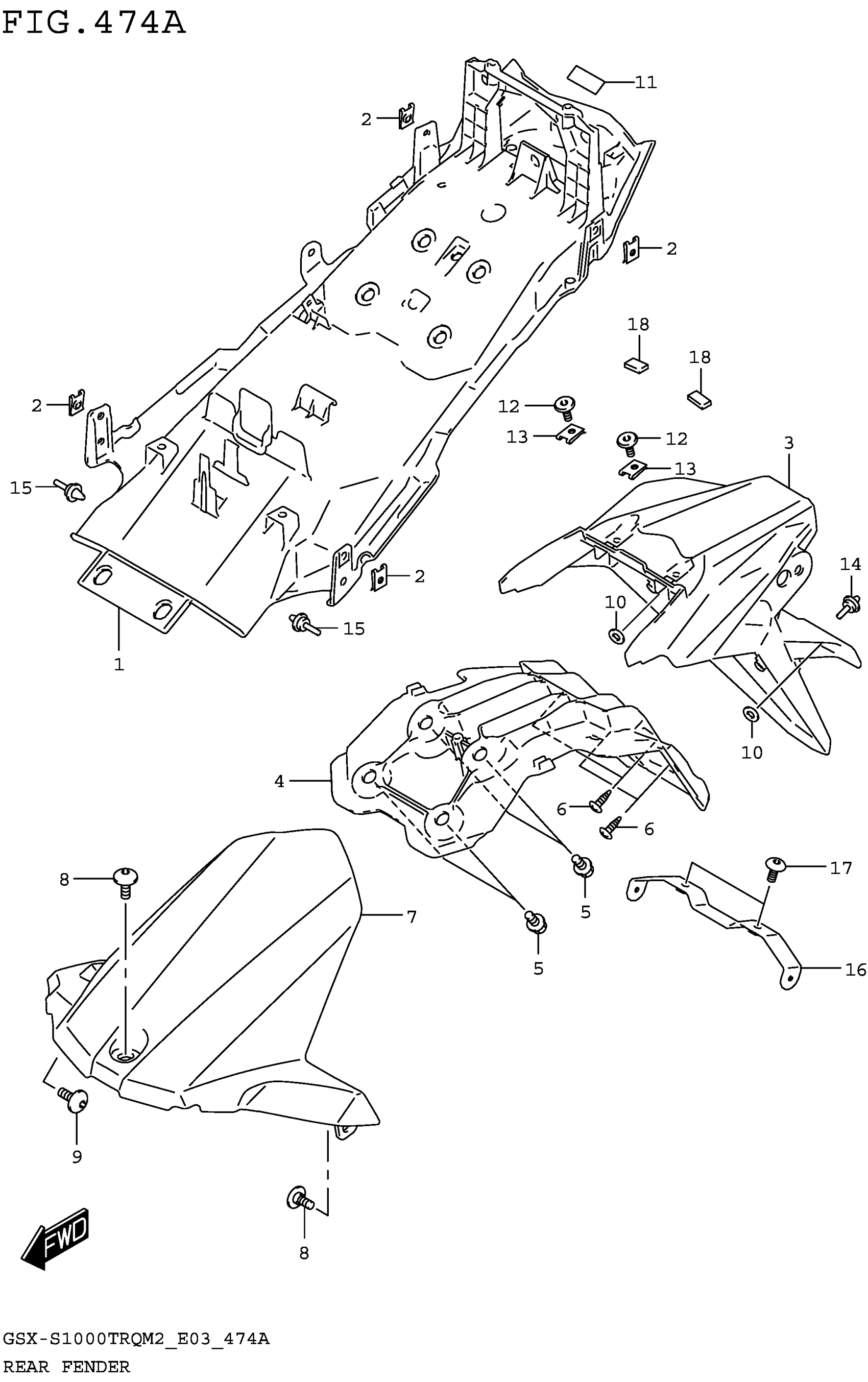

Suzuki GSX-S1000TRQM2 (2022) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT

63111-48K00

$95.30

2

NUT (M5)

09148-05047

$2.11

3

FENDER, REAR REAR OUTER

63113-48K00

$85.55

4

FENDER, REAR REAR INNER

63116-48K00

$174.05

5

BOLT

09116-06529

$1.53

6

SCREW

03541-0616B

$2.59

7

FENDER, REAR LOWER

63114-04K00

$44.37

8

SCREW (6X16)

09139-06158

$4.90

9

SCREW (6X16)

09139-06137

$2.61

10

WASHER

08322-0106B

$2.26

11

TAPE (6X25X0.13)

94443-06G00

$3.25

12

SCREW (5X13)

09139-05091

$2.03

13

NUT (M5)

09148-05052

$3.37

14

CUSHION

09321-06026

$2.92

15

CUSHION

09321-06037

$2.35

16

BRACKET, SIDE RR

47460-48K00

$28.33

17

SCREW (6X12)

09139-06144

$2.50

18

CUSHION, BATTERY (30X130X3) This part replaces 33972-31D00.

33652-19B00

$6.03
