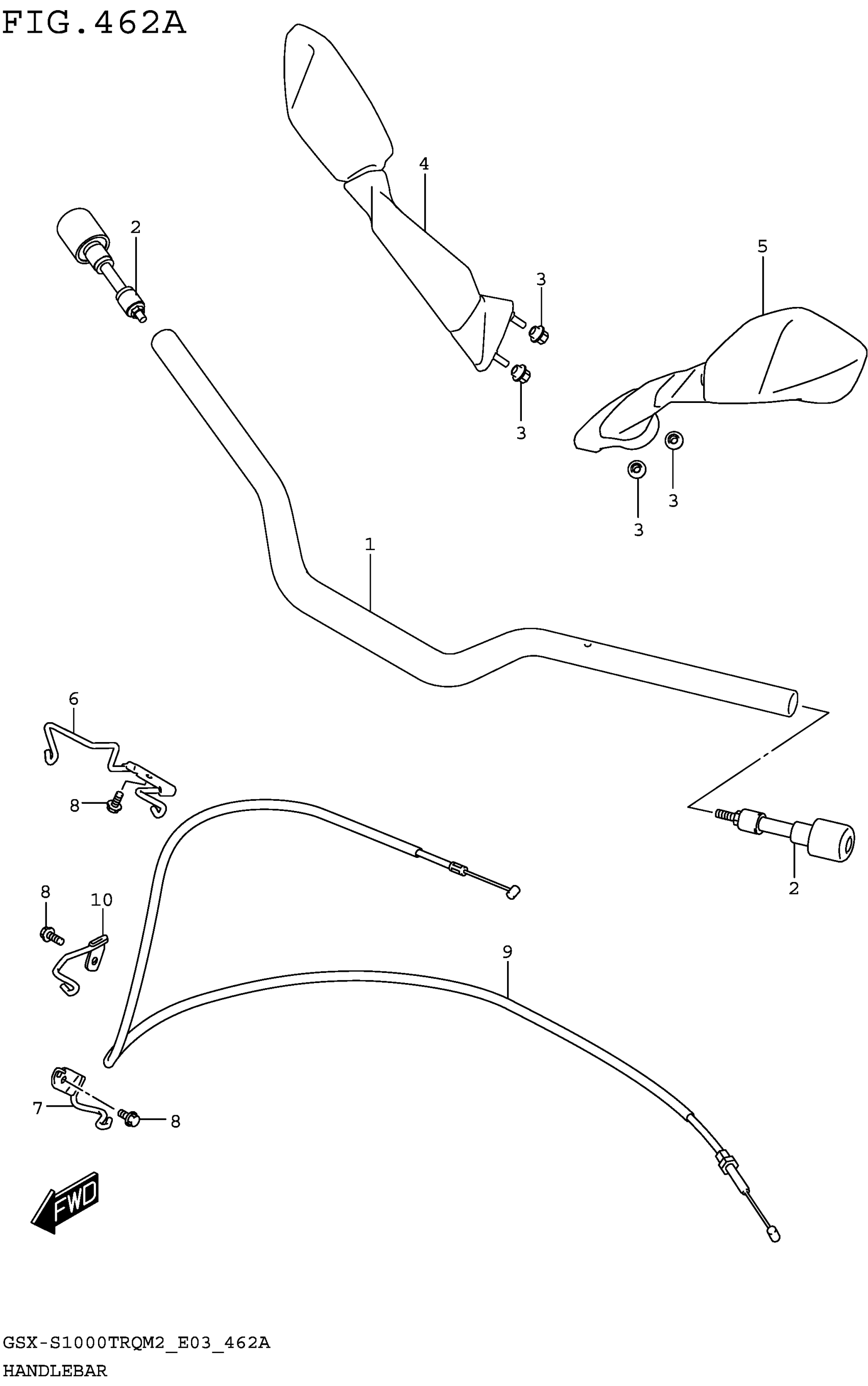

Suzuki GSX-S1000TRQM2 (2022) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-48K10

$266.57

2

BALANCER ASSY, HANDLEBAR

56270-32E00

$34.98

3

NUT,RR VIEW MIRROR

56619-41G01

$9.31

4

MIRROR ASSY, REAR VIEW RH

56500-48K00

$136.00

5

MIRROR ASSY, REAR VIEW LH

56600-48K00

$136.00

6

GUIDE, CABLE

58620-48K10

$17.53

7

GUIDE, CLUTCH CABLE NO.2 This part replaces 58650-48K00.

58650-48K01

$18.48

8

BOLT

01547-0612B

$1.49

9

CABLE ASSY, CLUTCH

58200-48K00

$34.82

10

GUIDE, CLUTCH CABLE

58640-04K00

$12.73
