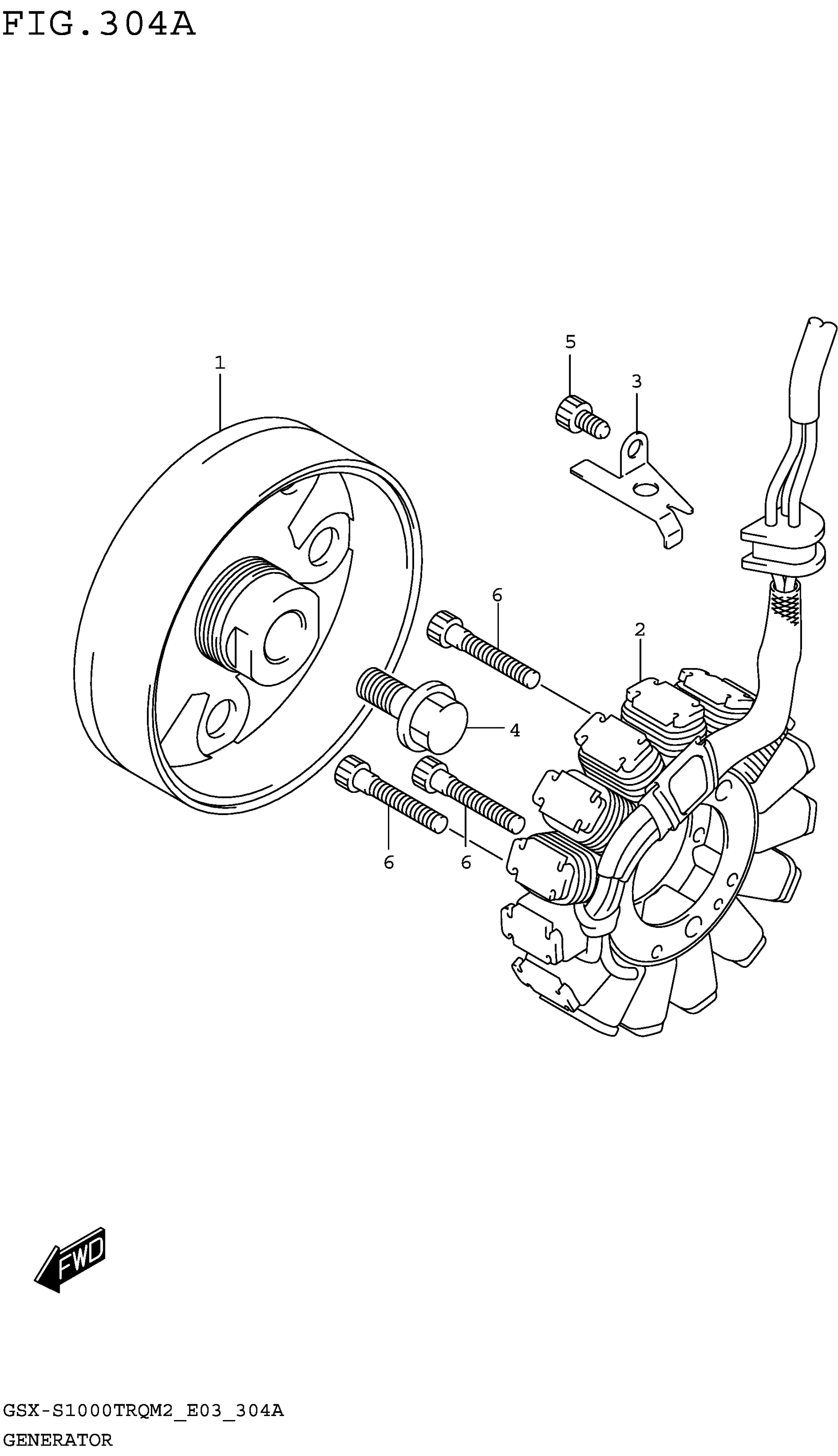

Suzuki GSX-S1000TRQM2 (2022) GENERATOR Diagram

#

Description

Price

1

ROTOR ASSY

31402-41G10

$628.87

2

STATOR ASSY

31401-41G20

$312.20

3

CLAMP, MAGNETO LEAD

32371-33E00

$5.52

4

BOLT (12X23)

09103-12005

$7.05

5

BOLT

07130-0612A

$2.50

6

BOLT (6X30)

09106-06122

$3.42
