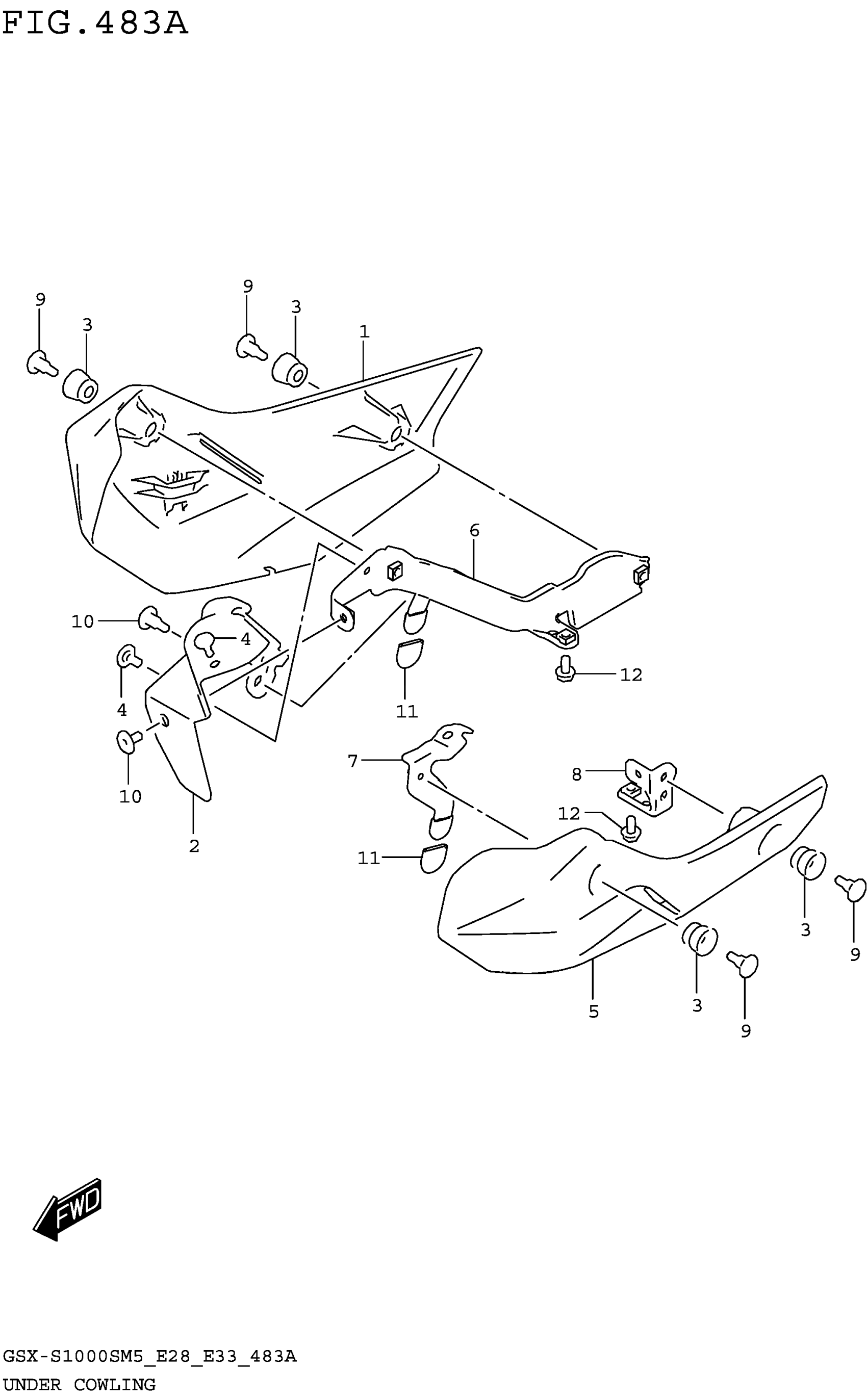

Suzuki GSX-S1000SRQM5 (2025) UNDER COWLING Diagram

#

Description
Price

1

COWLING,UNDER,R (BLACK)

94471-07L00-YKV

$114.42

2

COVER, UNDER RH

94472-07L00

$28.45

3

CUSHION,UNDER COWLING,L

94479-15H00

$4.48

4

CLIP

94479-35F00

$5.62

5

COWLING,UNDER,L (BLACK)

94481-07L00-YKV

$114.42

6

BRACKET,UNDER COWL,R

94520-07L00

$45.15

7

BRACKET,UNDER COWL FR,L

94530-07L00

Unavailable

8

BRACKET, UNDER COWL RR LH

94540-07L00

$19.07

9

SCREW (6X20)

09139-06211

$3.44

10

SCREW (6X13)

09139-06220

$3.78

11

CUSHION

09329-18001

$1.91

12

BOLT

01550-0612A

$1.97
