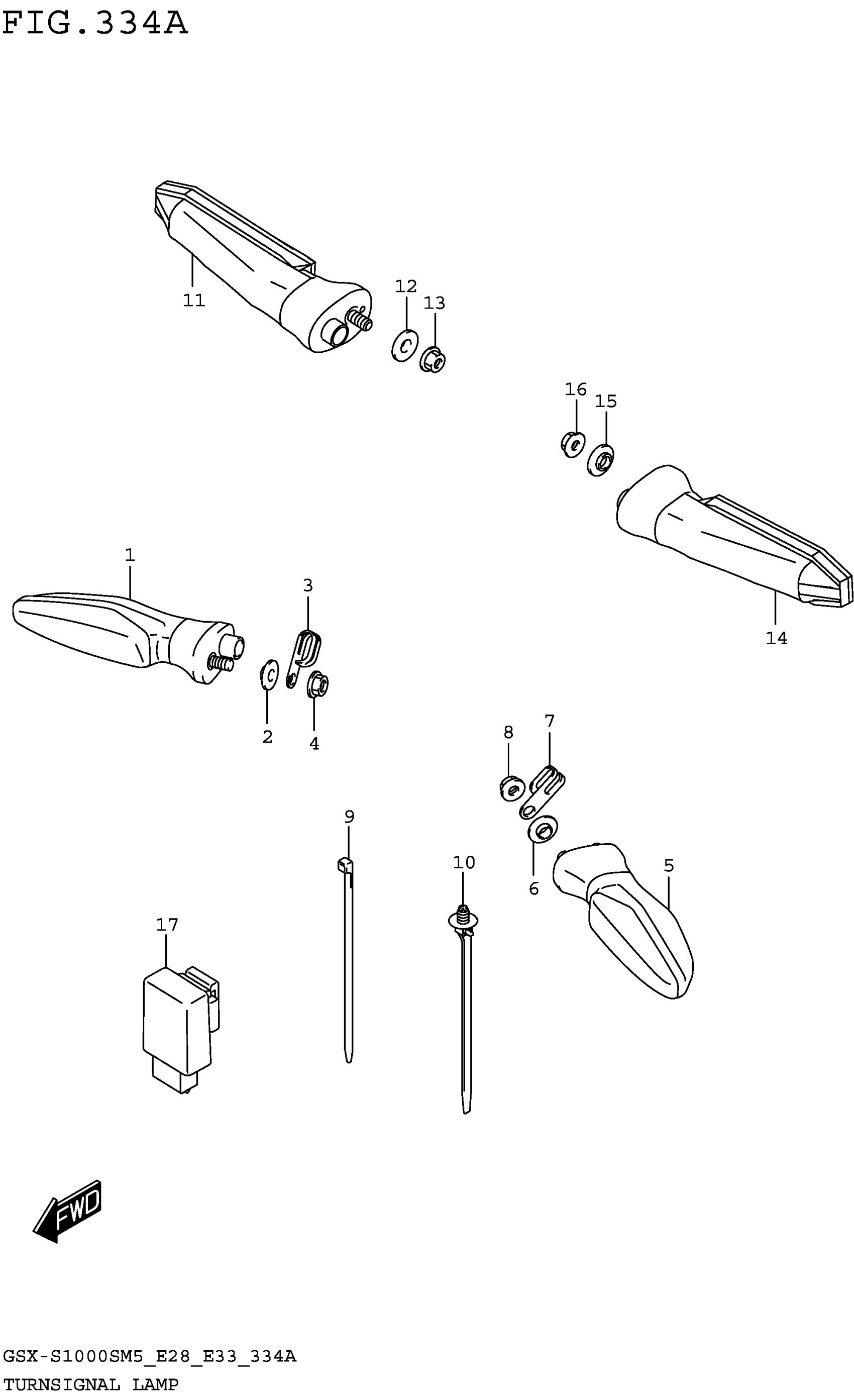

Suzuki GSX-S1000SRQM5 (2025) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-06LF0

$117.73

2

WASHER

09169-06100

$1.49

3

CLAMP (L:45)

09404-06429

$1.83

4

NUT (6X12)

08316-1006A

$2.19

5

LAMP ASSY, FRONT TURNSIGNAL L

35602-06LF0

$124.87

6

WASHER

09169-06100

$1.49

7

CLAMP (L:45)

09404-06429

$1.83

8

NUT (6X12)

08316-1006A

$2.19

9

CLAMP (L:145)

09407-14407

$3.57

10

CLAMP (L:170)

09407-17403

$4.91

11

LAMP ASSY, REAR TURNSIGNAL RH

35603-06LH0

Unavailable

12

WASHER

09169-06100

$1.49

13

NUT (6X12)

08316-1006A

$2.19

14

LAMP ASSY, REAR TURNSIGNAL LH

35604-06LH0

$129.23

15

WASHER

09169-06100

$1.49

16

NUT (6X12)

08316-1006A

$2.19

17

RELAY ASSY, TURNSIGNAL

38610-06LA1

$72.60
