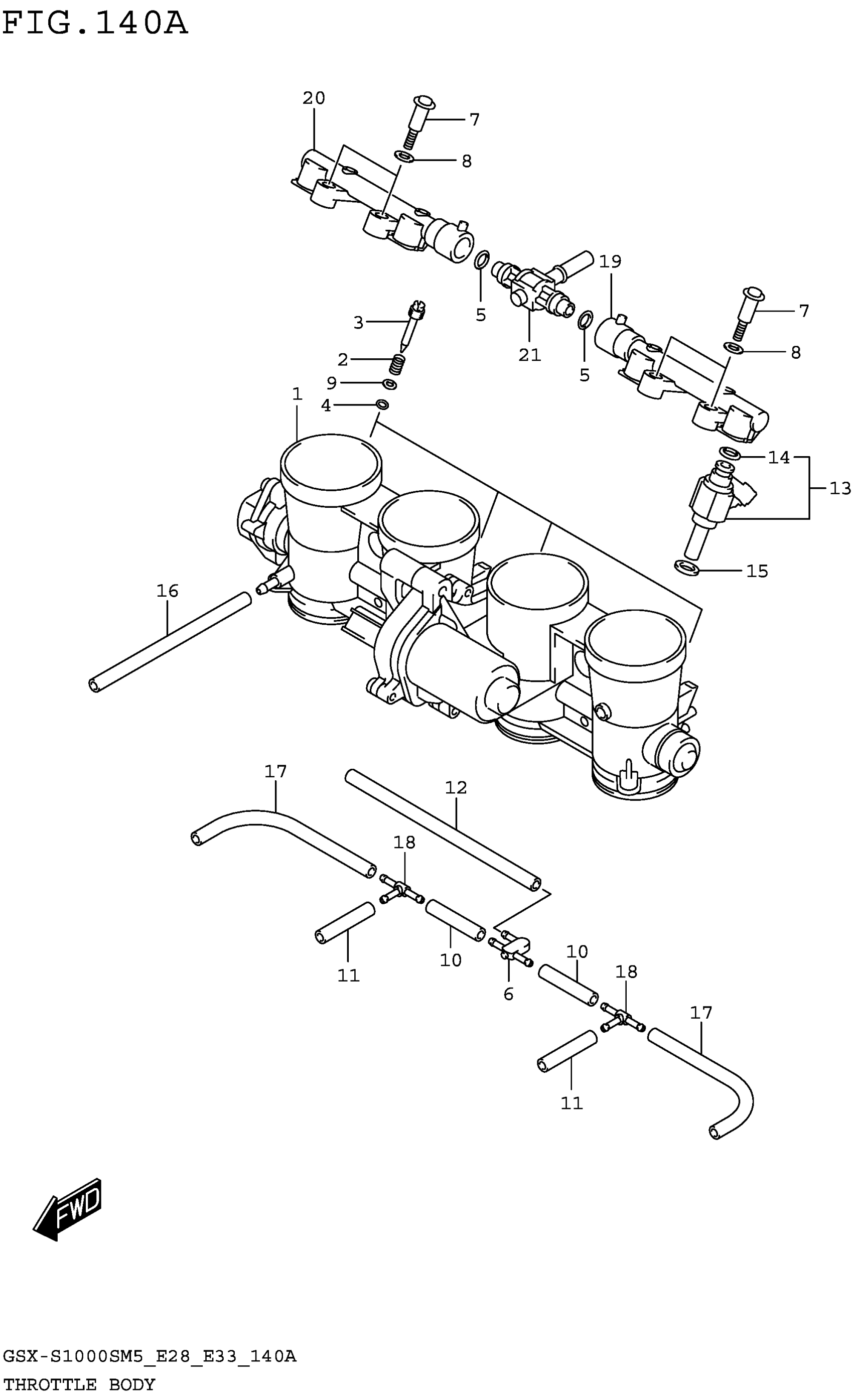

Suzuki GSX-S1000SRQM5 (2025) THROTTLE BODY (GSX-S1000SRQM5_E28) Diagram

#

Description
Price

1

BODY, THROTTLE

13405-48K10

$1,185.38

2

SPRING,THROTTLE SCREW

13268-48700

$4.34

3

SCREW

13269-33E00

$11.10

4

O-RING

13295-29901

$4.34

5

O-RING

13374-32G00

$7.22

6

JOINT

13471-18H00

$10.48

7

SCREW

13601-29G00

$3.43

8

PACKING

13602-29G01

$2.43

9

WASHER

13606-47A00

$3.28

10

HOSE (L:425)

13683-10F61

$17.10

11

HOSE

13683-07F01

$1.82

12

HOSE

13683-07F11

$5.55

13

INJECTOR ASSY

15710-04K00

$271.53

14

.O-RING

15717-58B00

$9.95

15

SEAL

15722-14J00

$11.36

16

.HOSE (3X7X600)

09355-30001-600

$8.56

17

HOSE (3.2X7.4X70)

13681-39F00-070

$2.98

18

3WAY,VACUUM HOSE This part replaces 13471-02FA0.

13685-02FA0

$7.05

19

DELIVERY PIPE

13471-10L00

$28.47

20

DELIVERY PIPE

13472-10L00

$28.47

21

NIPPLE ASSY

13473-17K00

$71.35
