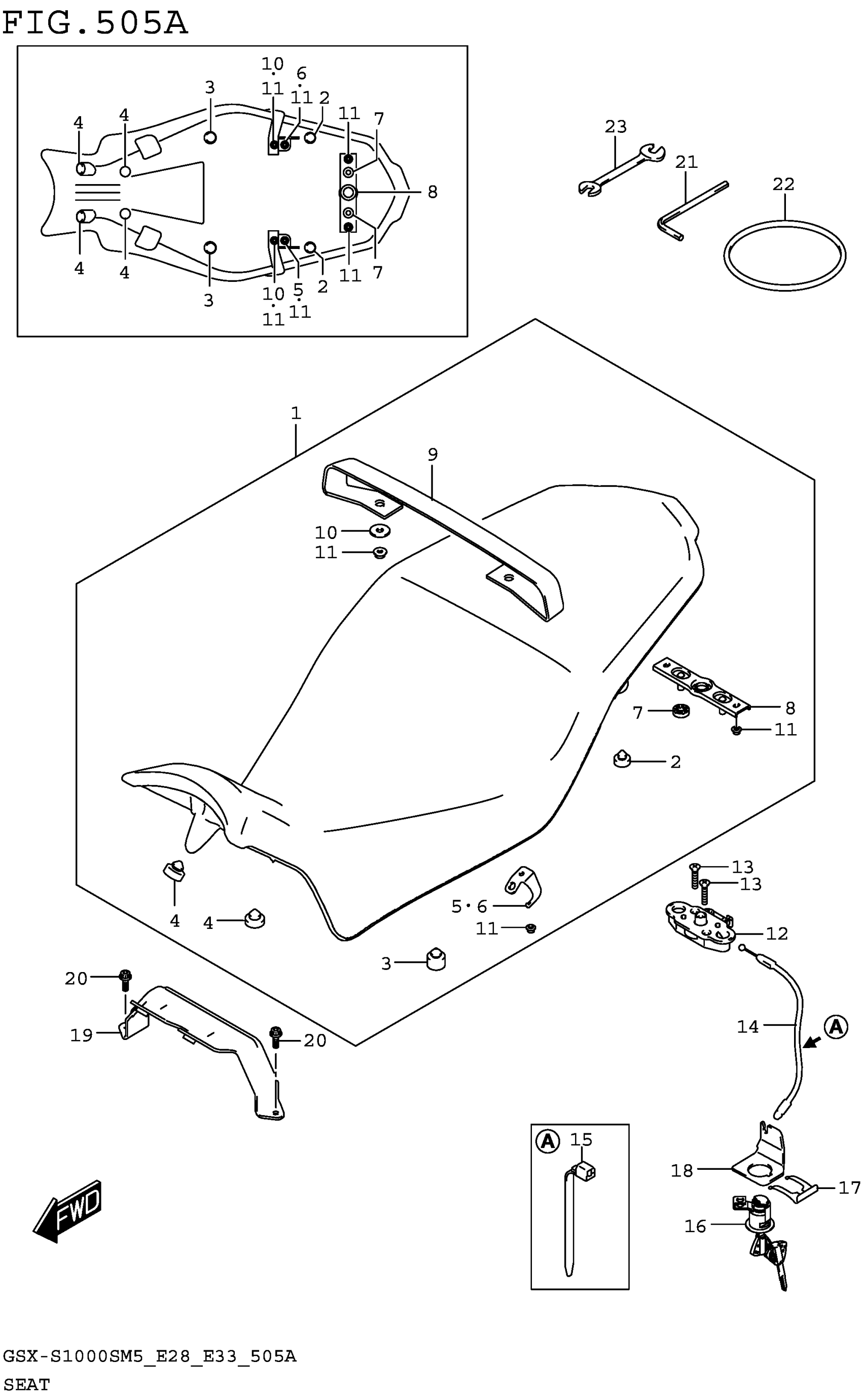

Suzuki GSX-S1000SRQM5 (2025) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK/GLAY)

45100-07L03-CCS

Unavailable

2

.CUSHION

09321-10011

$2.91

3

.CUSHION

45148-07L00

$7.93

4

.CUSHION, SEAT MOUNT

45148-23J00

$6.98

5

.PLATE, SEAT HOOK RH

45116-07L00

$10.58

6

.PLATE, SEAT HOOK LH

45117-07L00

$10.58

7

PROTECTOR (50X50X5) This part replaces 33652-21G00.

33652-20C00

$2.99

8

.STRIKER, SEAT LOCK

45215-26F00

Unavailable

9

.BAND, SEAT

45380-07L01

$14.88

10

.WASHER (6.5X20X1.6)

09160-06088

$1.65

11

NUT (6X12)

08316-1006A

$2.19

12

BRACKET,SEAT SUPPORT

45220-47H00

$138.38

13

SCREW

02122-0630A

$1.74

14

CABLE, SEAT LOCK

45280-07L00

$11.28

15

CLAMP (L:125)

09407-14403

$2.26

16

LOCK SET,SEAT

95700-14810

$107.30

17

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

18

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

19

BRACKET, SEAT

45130-07L00

$30.57

20

BOLT

07120-0612A

$2.50

21

SPANNER,HEXAGON (5)

96514-17K00

$4.77

22

O-RING (D:3.5,ID:56.5)

09280-57003

Unavailable

23

SPANNER,OPEN (14X17)

09813-00031

Unavailable
