Description

Price

1-1

WHEEL, REAR (17M/CXMT6.00) | (SILVER) FOR YKY

64111-04K30-YMY

$780.22

1-2

WHEEL, REAR (17M/CXMT6.00) | (GOLD) FOR YMD

64111-04K30-YPU

$765.72

2

SPACER,RR HUB BEARING

64731-35F10

$51.42

3

BEARING (28X52X12)

09262-28062

$26.38

4

SEAL,OIL (37X52X8)

09284-37002

$7.85

5

DISC, REAR BRAKE

69211-04K00

$142.63

6

BOLT (8X21)

09106-08160

$3.57

7

RING, SPEED SENSOR RR (50T)

64162-04K10

Unavailable

8

BOLT

07130-0512A

$2.19

9

AXLE, RR

64711-49G30

$142.63

10

NUT,REAR AXLE

64721-17K00

$15.94

11

WASHER (25.2X42X3.2)

09160-25070

$4.77

12

SPACER,REAR AXLE,R

64741-35F10

$13.49

13

SPACER,REAR AXLE,L

64751-47H10

$18.73

14

DRUM,REAR SPROCKET

64610-04K00

$254.32

15

RETAINER,RR SPROCKET DRUM

64733-35F00

$26.61

16

BEARING (32X65X17)

09262-32024

$39.40

17

SEAL,OIL (39X65X7)

09285-39001

$10.62

18

ABSORBER,RR HUB SHOCK

64651-47H10

$25.52

19

SPROCKET, REAR (NT:44)

64511-04K00

$97.45

20

NUT

08319-3110A

$2.73

21

TIRE, REAR (190/50ZR17M/C | (73W)) SPORTMAX ROADSPORT2 M,DUNLOP

65110-07L11

Unavailable

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

23-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

23-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

23-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

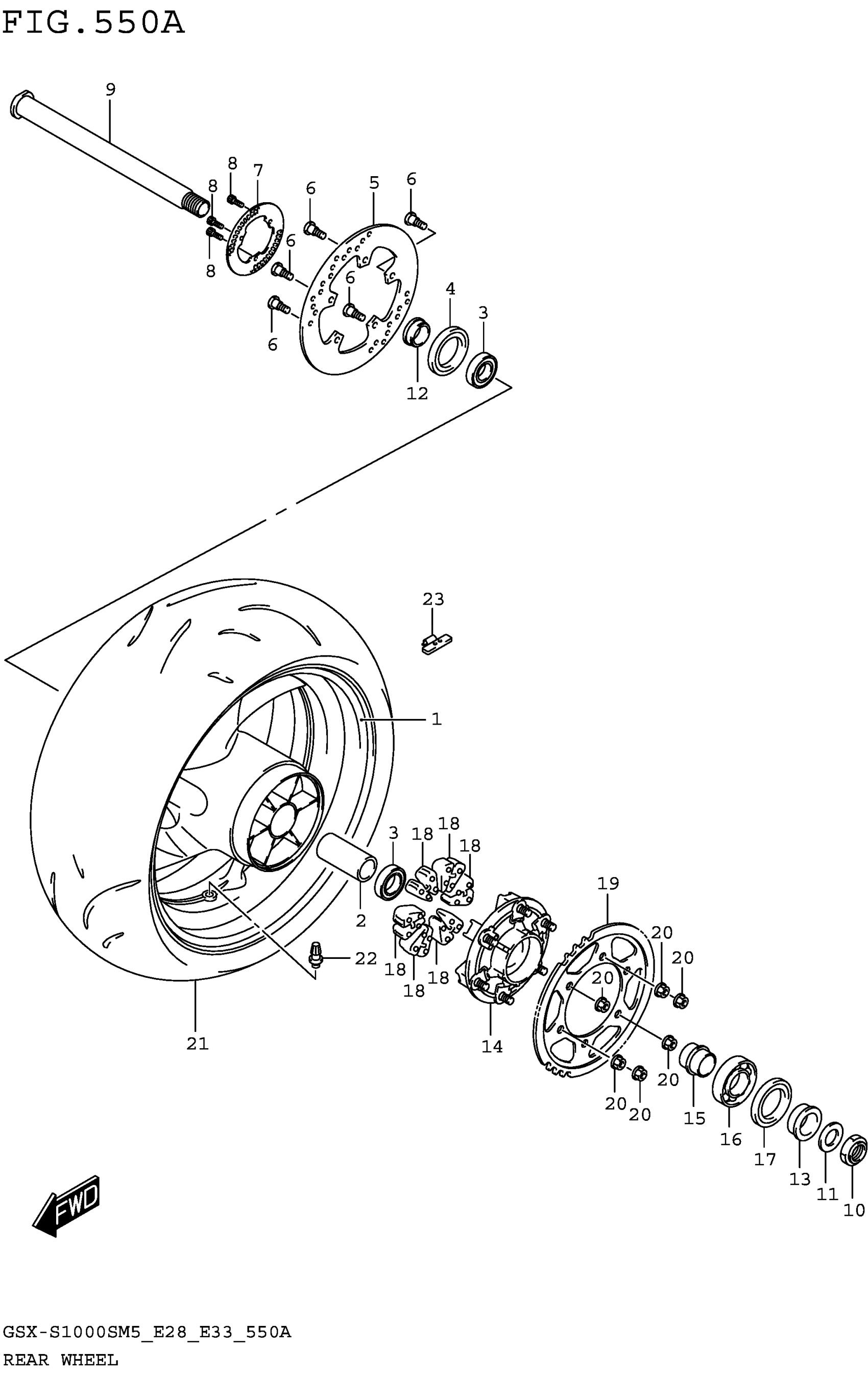

Suzuki GSX-S1000SRQM5 (2025) REAR WHEEL Diagram
